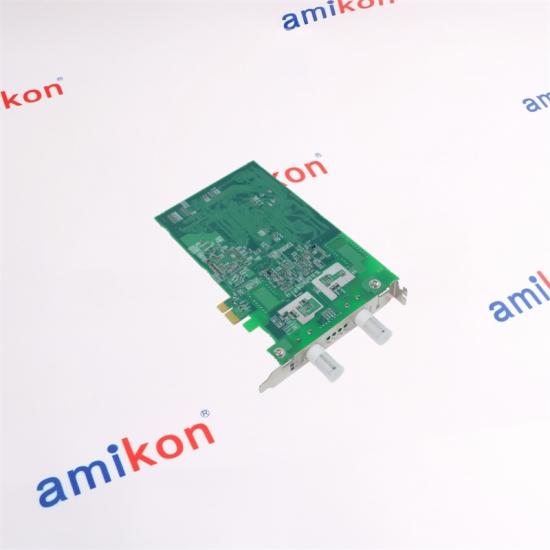

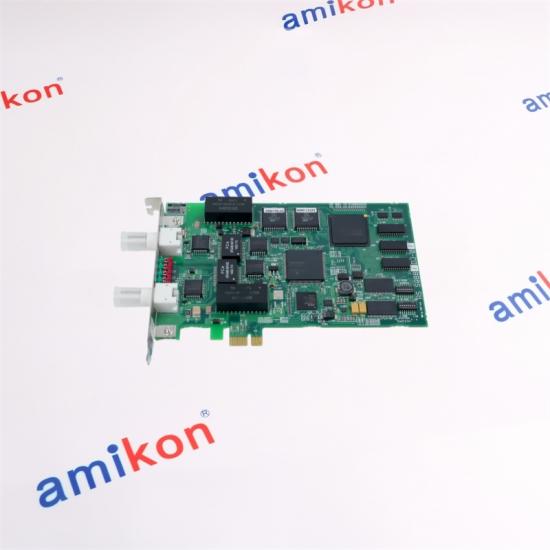

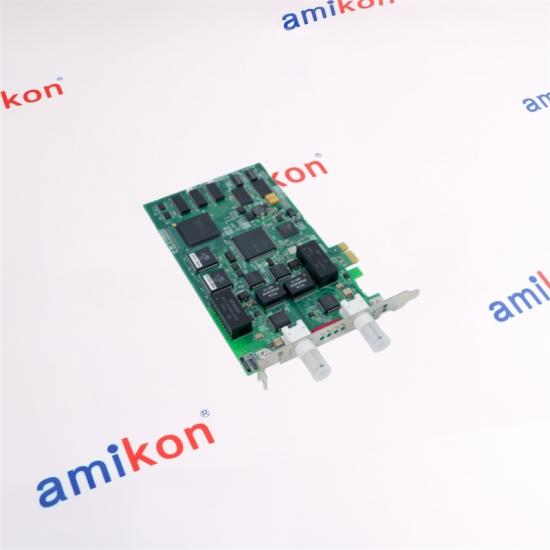

YOKOGAWA VF702 Control Bus Interface Card

YOKOGAWA VF702
YOKOGAWA VF702
YOKOGAWA VF702

YOKOGAWA VF702 Control Bus Interface Card

Calculate shipping
Quotation Request



YOKOGAWA / CONTROL BUS
VF702
V net control bus interface card designed for PC-based control communication.
INTERFACE CONCEPT
PCI Express host interface with dedicated V net bus connections and front-panel communication indicators.



CORE PARAMETERS
PCI Express
Host Interface
10 Mbps
V net Rate
BNC
Bus Connector
DUAL-BUS FRONT PANEL
VF702 provides BUS1 and BUS2 connections, with RCV and SND indicators for communication status. V net cabling uses BNC connections with T-type connectors.
We have a wide range of brands and products for various industries, we provide services to tens of thousands of customers around the world.
CONTACT
✉ Miya zheng  ◉ Phone / WhatsApp
V NET / CONTROL COMMUNICATION

✦
YOKOGAWA · V NET COMMUNICATION
VF702
Control Bus Interface Card
PCI Express → V net → Control Bus
A dedicated interface card for connecting a PC/AT compatible computer to a Yokogawa V net control bus through a PCI Express slot.
CORE CONNECTION
PCIe
Computer Interface
V net
Control Bus
BNC
Bus Connector
10BASE-2
Transmission
Maximum transmission distance: 185 m
COMMUNICATION PATH
PC → VF702 → V net

VF702 is installed in a PCI Express slot of a PC/AT compatible computer and provides the interface between the computer and the V net control bus.
PC
PCIe
 →
VF702
INTERFACE
 →
V
V NET
YCB146 coaxial cable + T-type connector
BUS CONNECTION
Dual BNC Arrangement
BUS 1 BUS 2
The card has BNC connectors for the control bus and RCV/SND lamps associated with BUS 1 and BUS 2.
185 m
Maximum Distance
2.4 A
Maximum Current
3.3 V
Power Supply ±9%
0.15 kg
Approx. Weight
PCI EXPRESS INTERFACE
x1 · 2.5 GT/s · CEM 1.0a
VF702 uses PCI Express CEM Specification 1.0a with x1, 2.5 GT/s signaling. The card can be installed in PCI Express slots from x1 through x16.
PCI EXPRESS x1
2.5 GT/s
The VF702 cannot be installed in a conventional PCI slot.
ELECTRICAL & PHYSICAL
Power Supply 3.3 V ±9%
Current Max. 2.4 A
Dimensions 22 × 126.5 × 193.54 mm
Weight Approx. 0.15 kg
EMC Marking CE / C-Tick
FRONT-PANEL STATUS
RCV / SND
The VF702 front panel provides receive and send indicators for both BUS 1 and BUS 2.
RCV
Signal Detected
SND
Signal Sent
BUS CABLING
YCB146 + T-Type
The control bus connection uses a coaxial cable with Model YCB146 and a T-type connector. When the next station is not used, a terminator is connected at the end of the bus.
COMPATIBILITY
VF702 ↔ VF701
The V net interface of VF702 is compatible with VF701. Stations using VF701 and VF702 can therefore be mixed on the same control bus. Domain-number and station-number settings are performed in the same manner as with VF701.
SYSTEM RELEASE
R3.05+
VF702 can be used in R3.05 or later.
V NET INTERFACE
DIRECT PRODUCT SUPPORT
YOKOGAWA VF702
For replacement matching, quantity requests, system compatibility checks and delivery coordination, contact our sales team.
Sales Manager: Miya Zheng
Industrial automation parts support
CONTACT CHANNELS
✉   EMAIL SALES@AMIKON.CN ☎   PHONE / WHATSAPP

QUICK REQUEST
PART NUMBER
VF702
sales@amikon.cn
86-1802076792
PURCHASING FAQ
VF702

Key considerations for replacement, PCI Express compatibility, V net connection and existing control-bus integration.
01 · Can VF702 be installed in a conventional PCI slot when replacing an older interface card?
No. VF702 is designed for PCI Express and cannot be installed in a conventional PCI slot. It uses PCI Express CEM Specification 1.0a with x1, 2.5 GT/s signaling and can be installed in PCI Express slots from x1 through x16. This slot distinction should be checked before ordering a replacement.
02 · Can VF702 work on the same control bus as VF701-installed stations?
Yes. Yokogawa specifies the V net interface of VF702 as compatible with VF701, allowing VF701-installed and VF702-installed stations to be mixed on the same control bus. Domain-number and station-number settings follow the same method used for VF701.
03 · What should be checked before ordering VF702 for a V net connection?
The computer should provide a suitable PCI Express slot, and the control-bus installation should use the specified coaxial connection arrangement with YCB146 and a T-type connector. The V net cable run should also remain within the specified maximum distance of 185 m when using 10BASE-2 cable.
04 · What does the VF702 RCV/SND indication help confirm during troubleshooting?
VF702 provides RCV and SND lamps for BUS 1 and BUS 2. The RCV lamp lights when the card detects signals on the control bus, while the SND lamp lights when the card sends signals to the control bus. These indicators can help distinguish between receive-side and send-side activity during system checks.
05 · Is VF702 appropriate for a system using a later software release than R3.05?
Yokogawa specifies VF702 for use in R3.05 or later. For an existing system, the exact control-system configuration, installed interface arrangement and required network hardware should still be checked before replacing a card, particularly when upgrading an older station.
