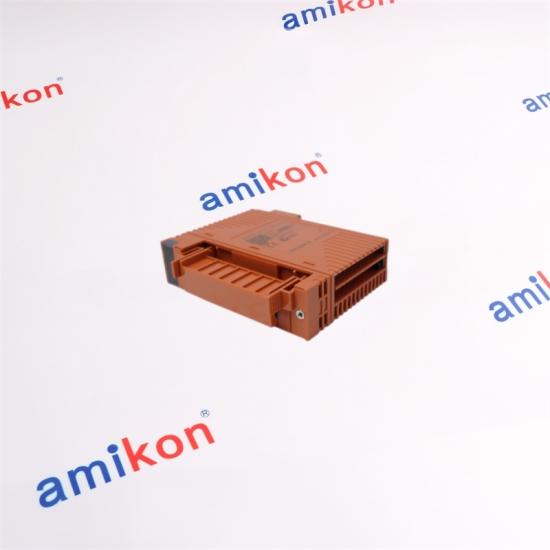

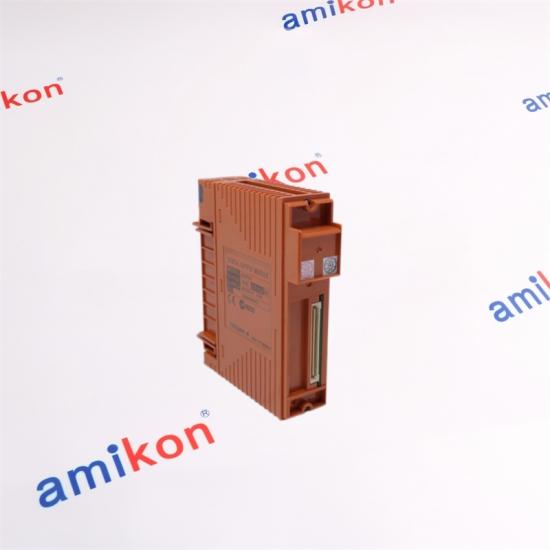

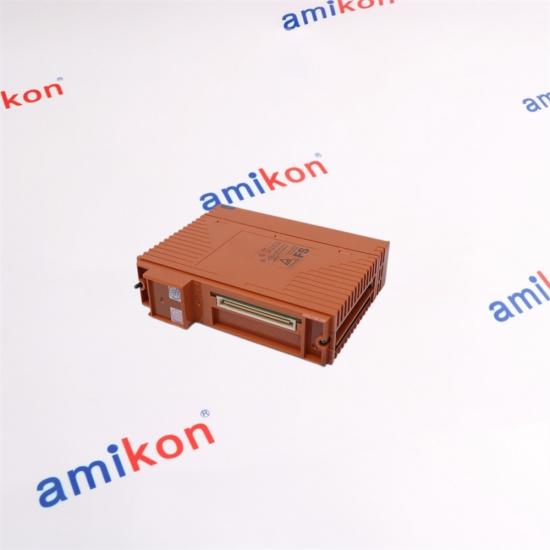

YOKOGAWA PROSAFE-RS • DIGITAL OUTPUT
SDV541-S33
16-Channel 24 V DC Digital Output Module
The SDV541 is a module-isolated digital output module designed for 24 V DC field output circuits. The SDV541-S33 configuration uses the S33 suffix combination and is associated with Yokogawa-specific signal-cable connection arrangements.
16 OUTPUTS 24 V DC ISOLATED
|
CORE CONFIGURATION
Digital output channels 16
Output voltage 24 V DC
Output format Current source
Maximum load 0.2 A / output
Total load 3.2 A
Response 30 ms max.
|
|
FIELD POWER
External 24 V DC supply with a minimum 3.4 A current capacity.
|
OUTPUT STAGE
Sixteen isolated current-source outputs drive compatible field loads.
|
FIELD CONNECTION
S33 configuration supports Yokogawa-specific signal-cable connection.
|
STATUS PATH
Field wiring diagnostics are incorporated into the digital output architecture.
|
|
OUTPUT CHARACTERISTICS
|
POWER & LOAD WINDOW
|
|
POWER PATH
The external field supply is specified at 24 V DC with a +20% / −10% tolerance. A minimum current capacity of 3.4 A is specified for the external supply.
Internal consumption is specified at a maximum of 300 mA from 5 V DC and 150 mA from 24 V DC.
|
LOAD COMPATIBILITY WINDOW
For replacement planning, the field load, wiring resistance and external 24 V DC supply should be checked together rather than evaluating the output channel only by its nominal voltage.
|
|
01 / MODULE
SDV541-S33 provides sixteen isolated 24 V DC digital output channels.
|
→ |
02 / CABLE INTERFACE
The S33 configuration is associated with Yokogawa-specific signal-cable connection arrangements.
|
→ |
03 / FIELD TERMINATION
Compatible terminal-board arrangements include SED4D/SRM54D and SBD4D/SBM54D configurations through the applicable signal cable.
|
|
SDV521
4-channel digital output family with 24 V DC output architecture.
|
SDV531
8-channel digital output family for 24 V DC field output applications.
|
SDV541
16-channel digital output family with module isolation and current-source output.
|
|
YOKOGAWA PROSAFE-RS PART SUPPORT
Need SDV541-S33 for your existing safety I/O arrangement?
Send the complete part number, quantity, destination, required date and the existing terminal-board or signal-cable arrangement. We can help coordinate the purchasing process for the specified configuration.
|
Miya Zheng | sales@amikon.cn | +86 18020776792
|
|
Can SDV541-S33 replace another SDV541 variant when the existing field wiring uses a Yokogawa-specific cable?
The replacement should match the complete suffix and the installed connection arrangement. SDV541-S33 is associated with Yokogawa-specific signal-cable connections, while other SDV541 suffixes can use different interface arrangements. The terminal board, cable type and module suffix should therefore be checked together before substitution.
|
|
What should be verified before ordering SDV541-S33 for an existing 24 V DC output loop?
Verify that the field device falls within the SDV541 output window: 24 V DC output, current-source format, 35 mA minimum load current, 0.2 A maximum per output line and 120–685 Ω load resistance. The external supply should also provide 24 V DC within +20%/−10% with at least 3.4 A capacity.
|
|
Does SDV541-S33 support a dual-redundant terminal arrangement?
The SDV541 family supports connection arrangements using single or dual-redundant terminal blocks. Yokogawa's connection tables associate SDV541 with SED4D/SRM54D for single or dual-redundant arrangements and with SBD4D/SBM54D for corresponding configurations. A dual-redundant terminal block connects two adjacent I/O modules.
|
|
What version detail matters when SDV541-S33 is connected to SBM54D?
For connection to SBM54D, the applicable Yokogawa connection specification requires SDV541-S33 with style code S3 and firmware revision F1:1 and F2:1 or later. This makes the style and firmware combination an important purchasing and replacement check when the existing terminal arrangement uses SBM54D.
|
|
Why is the 120–685 Ω load range important when selecting SDV541-S33 for replacement?
The specified load-resistance window defines the electrical range in which the output circuit is designed to operate. During replacement planning, the field device and the resistance introduced by field wiring should be considered together. A nominal 24 V DC field device should not be assumed compatible solely because its supply voltage matches the module.
|
|
