YOKOGAWA / ANALOG OUTPUT
AAI543-S60/A4S00

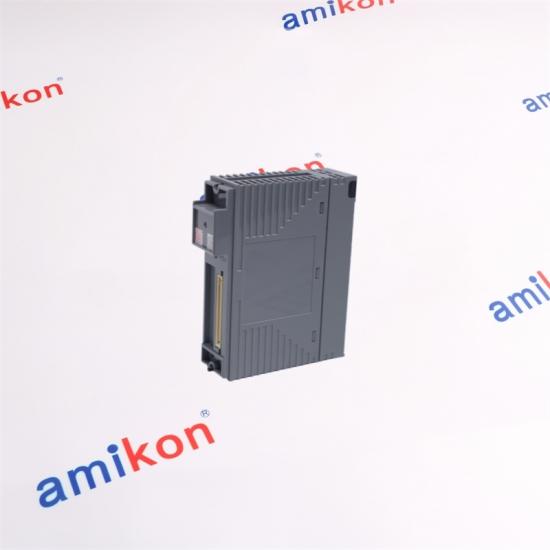

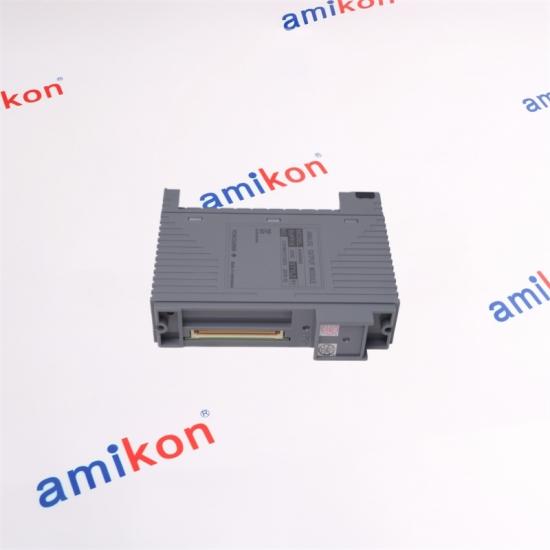

16-channel isolated analog output module
|
16
OUTPUT CHANNELS
|
|
01 / SIGNAL
4–20 mA
Analog output
|
02 / DESIGN
Channel Isolation
Isolated outputs
|
03 / TERMINAL
A4S00
Pressure-clamp type
|
| International Delivery on the Day · Quick Response Support Intercontinental Cooperation Network |
✉ Contact Sales ☏ WhatsApp |
| Yokogawa AAI543-S60/A4S00 is a 16-channel isolated analog output module for 4 to 20 mA field signals. The -S60 execution provides the standard module type, fast switch-over response for redundant configuration, no explosion protection and the basic environmental execution. /A4S00 adds the ATA4S-00 pressure-clamp terminal block. |
INSTALLED FAMILY
CENTUM VP / Field I/O
16 AO · 4–20 mA · Isolated
|
| PRICE & AVAILABILITY | Sales manager: Miya zheng | EMAIL SALES | WHATSAPP 86-18020776792 |
| Product type | Isolated analog output module |
| Output channels | 16 |
| Output signal | 4 to 20 mA |
| Channel arrangement | Isolated |
| Redundant response | Fast switch-over execution |
| Explosion protection | Not included in S60 execution |
| Terminal option | /A4S00, ATA4S-00 pressure-clamp block |
| Environmental execution | Basic type |
|
SYSTEM POSITION
16 AO · 4–20 mA · Isolated
|
The module converts controller output values into sixteen isolated 4 to 20 mA commands for control valves, positioners and other current-driven devices. Its fast redundant switch-over execution is intended for matching redundant module arrangements. The terminal block option is part of the installed connection scheme and must remain compatible. |
| PRICE & AVAILABILITY | Sales manager: Miya zheng | EMAIL SALES | WHATSAPP 86-18020776792 |
| MODEL / FAMILY | RATING OR ROLE | SELECTION POINT |
| AAI543-S60/A4S00 | Fast redundant response; pressure clamp | This model |
| AAI543-S50/A4S00 | Standard redundant response | Choose to match installed response class |
| AAI543-S60/A4S10 | Pressure clamp with surge absorber | Different terminal protection |
| AAI543-H60 | HART-capable execution | Choose only when HART is required |
| AAV544 | Isolated voltage output | For -10 to +10 V applications |
| 01 | Match S60 fast switch-over behavior on both sides of a redundant module arrangement. |
| 02 | Confirm ATA4S-00 terminal-block coding and preserve each field-loop channel position. |
| 03 | Isolate loop power and output commands before removing the terminal block or module. |
| 04 | Check polarity, shield practice and permissible field-load conditions for every 4 to 20 mA loop. |
| 05 | Commission one channel at a time and verify commanded current, redundancy status and final-element response. |
|
