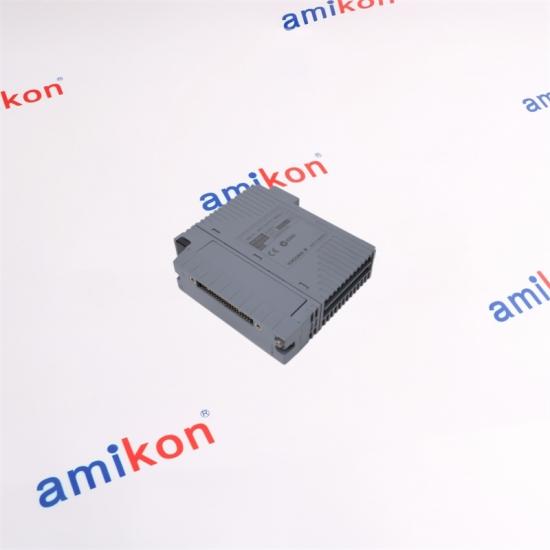

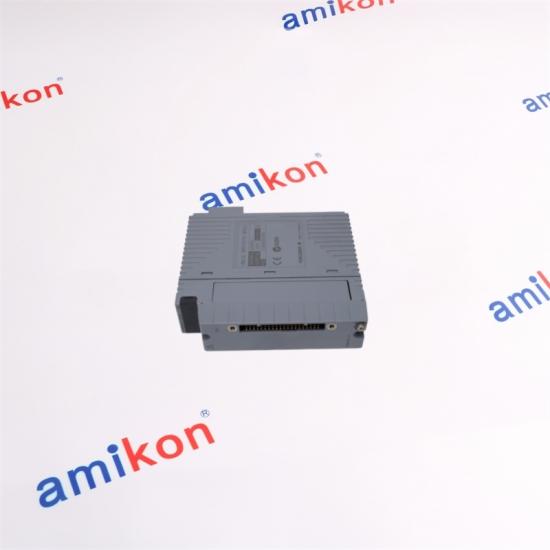

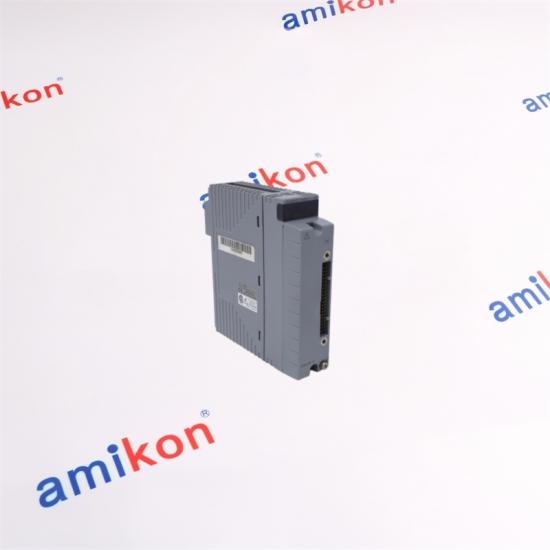

| Yokogawa AAB841-S50/M4A00 is a standard analog I/O module for CENTUM field I/O applications. It provides eight 1 to 5 V analog input channels and eight 4 to 20 mA analog output channels in a non-isolated channel arrangement. The /M4A00 option supplies the ATM4A-00 MAC2 compatible adapter for the required field interface. |
INSTALLED FAMILY
CENTUM VP / Field I/O
8 AI · 8 AO · Non-Isolated
|
| PRICE & AVAILABILITY | Sales manager: Miya zheng | EMAIL SALES | WHATSAPP 86-18020776792 |
| Product type | Analog input/output module |
| Analog inputs | 8 channels, 1 to 5 V |
| Analog outputs | 8 channels, 4 to 20 mA |
| Channel isolation | Non-isolated |
| Base suffix | -S50: standard, no explosion protection, basic type |
| Interface option | /M4A00, ATM4A-00 MAC2 compatible adapter |
| Installed environment | CENTUM VP / compatible FIO arrangement |
| Termination focus | Confirm nest, adapter and field wiring together |
|
SYSTEM POSITION
8 AI · 8 AO · Non-Isolated
|
The module combines process feedback acquisition and analog command output in one installed FIO position. The input side receives 1 to 5 V signals, while the output side drives 4 to 20 mA field loops. The MAC2 compatible adapter defines the physical interface, so the complete suffix must be matched during replacement. |
| PRICE & AVAILABILITY | Sales manager: Miya zheng | EMAIL SALES | WHATSAPP 86-18020776792 |
| MODEL / FAMILY | RATING OR ROLE | SELECTION POINT |
| AAB841-S50/M4A00 | 8 input / 8 output; MAC2 adapter | This model |
| AAB841-S50/K4A00 | KS cable interface adapter | Choose only for KS interface |
| AAB841-S50/A4S00 | Pressure-clamp terminal option | Different termination method |
| AAB842 | Related analog I/O execution | Confirm signal behavior before substitution |
| AAI543 | 16-channel analog output | Output-only role |
| 01 | Confirm the complete AAB841-S50/M4A00 code and the ATM4A-00 adapter before removal. |
| 02 | Record input and output channel assignments separately; identical channel numbers serve different signal directions. |
| 03 | De-energize field loops and the I/O station before seating or removing the module and adapter. |
| 04 | Maintain correct 1 to 5 V input polarity and 4 to 20 mA output-loop polarity. |
| 05 | After replacement, validate every input value, output command, loop power condition and channel status. |
|
