Two-Channel Pressure Interface for Woodward MicroNet control architectures.

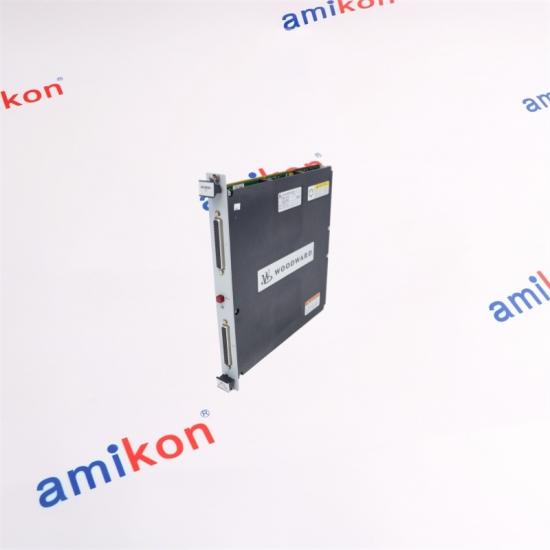

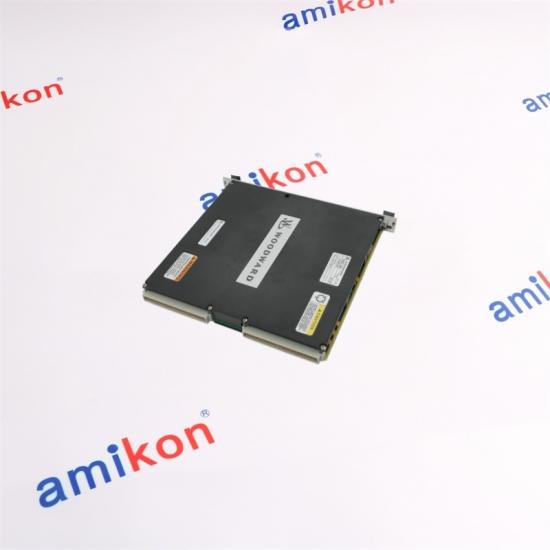

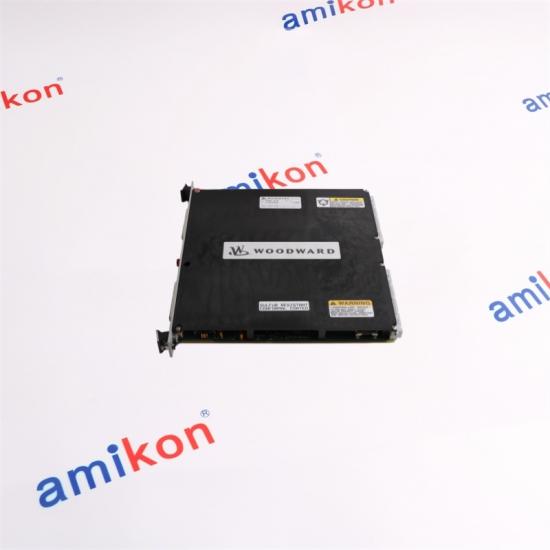

Woodward 5466-326 is a MicroNet pressure interface module designed for two pressure interface channels, with each channel supporting up to four pressure transducers. The module connects pressure measurement signals into the MicroNet control architecture for industrial turbine and related control applications.
2 CHANNELS 4 TRANSDUCERS / CHANNEL 5437-523 FTM

MODULE PROFILE
MODULE 5466-326
TYPE Pressure Interface
CHANNELS 2
CAPACITY 4 / channel
FTM 5437-523
System role:
Pressure transducer interface within a Woodward MicroNet control installation.
2
PRESSURE CHANNELS
Independent pressure interface channels
4
TRANSDUCERS / CHANNEL
Up to four pressure transducers per channel
8
TOTAL TRANSDUCER CAPACITY
Maximum stated channel capacity
1
FIELD TERMINATION TYPE
5437-523
01 / ENGINEERING
Pressure
Interface Logic

The 5466-326 occupies a specialized position in the MicroNet input architecture. Rather than functioning as a general analog I/O card, it is dedicated to pressure interface duties and supports two pressure channels.
Capacity structure
Each of the two channels can accommodate up to four compatible pressure transducers, giving a stated maximum of eight transducers across the module.
TECHNICAL ITEM WOODWARD 5466-326
Manufacturer Woodward
Product Family MicroNet
Module Type Pressure Interface
Pressure Channels 2
Transducer Capacity 4 pressure transducers per channel
Maximum Interface Capacity Up to 8 pressure transducers
Field Termination Module 5437-523
Cable Selection Table J
System Connection MicroNet chassis / pressure-interface architecture
CHANNEL A
01

Supports up to four compatible pressure transducers within the channel architecture.
CHANNEL B
02

Provides a second pressure interface channel with the same four-transducer capacity.
FIELD SIDE
FTM

The specified field termination module is 5437-523, with cable selection associated with Table J.
CONTROL SIDE
VME

Pressure data is integrated into the MicroNet control architecture through the module interface.
02 / MICRONET INPUT FAMILY
Related MicroNet Input Modules

TARGET
5466-326

Pressure Interface
2 channels
4 transducers / channel
5437-523 FTM
5466-5000 Four-channel speed sensor input for MPU signals.
5466-5001 Four-channel speed sensor input supporting MPU and Eddy Probe combinations.
5466-5002 Four-channel speed sensor configuration with two MPU and two proximity inputs.
5466-5003 Four-channel speed sensor configuration with three MPU and one proximity input.
5466-326 Dedicated two-channel pressure interface with capacity for four transducers per channel.
Selection principle: The MicroNet input family contains different signal functions. A pressure-interface requirement should not be substituted with a speed-sensor input merely because both modules occupy the same broader system family. Match the sensing function and field termination arrangement to the installed application.
03 / FIELD APPLICATION
Application & Maintenance Scenarios

01

Multi-point pressure monitoring
5466-326 is suited to MicroNet applications where pressure measurement requires two interface channels and each channel may accommodate up to four compatible pressure transducers.
02

Turbine-control pressure interface
The module belongs to the MicroNet input-module family used in industrial turbine control architectures. Its role is specifically associated with pressure transducer interfacing rather than general-purpose analog I/O.
03

Replacement after channel-related pressure faults
If pressure values become unavailable or abnormal at the control-system interface, the maintenance team should verify the pressure transducers, field termination, cable path and channel assignment before replacing the 5466-326 module.
04

Spare planning for an installed MicroNet system
For critical equipment, keeping the exact 5466-326 part number available can reduce maintenance delay when a pressure-interface module requires replacement. The FTM and cable arrangement should be checked together with the module.
BEFORE ORDERING
Match the complete interface

Pressure transducer type, FTM, cable, channel arrangement and installed MicroNet chassis position should be considered together.
PART NUMBER 5466-326
FIELD TERMINATION 5437-523
CABLE Table J selection
TRANSDUCER ARRANGEMENT Up to four per channel
APPLICATION MicroNet pressure interface
QUOTATION DESK
Request Woodward 5466-326
For a replacement or spare request, provide the exact part number together with the application and delivery requirements so the configuration can be checked.
Part Number Quantity Destination Required Date Machine/System
DIRECT CONTACT
Miya zheng
Sales Manager
EMAIL   sales@amikon.cn PHONE / WHATSAPP   86-18020776792
Delivery: 3–5 days
Warranty: 12 months
Packaging: Brand New
Delivery way: E-packing / FedEx / EMS / TNT / DHL / UPS
Payment term: T/T
04 / PURCHASE QUESTIONS
5466-326 Buyer FAQ

01
Is Woodward 5466-326 suitable when my MicroNet system needs two pressure interface channels?
Yes. The 5466-326 is specified as a two-channel pressure interface module, with capacity for up to four pressure transducers on each channel. It is intended for the pressure-interface function within the MicroNet architecture.
02
What should I verify before ordering a replacement Woodward 5466-326?
Check the complete 5466-326 part number, the installed MicroNet chassis position, the pressure-transducer arrangement, the 5437-523 field termination module, associated cable arrangement and the application channel assignment. These details are more useful for replacement matching than physical appearance alone.
03
Does Woodward 5466-326 use the 5437-523 field termination module?
Yes. The MicroNet module arrangement specifies 5437-523 as the field termination module associated with 5466-326, with the cable selection associated with Table J.
04
Can Woodward 5466-326 be replaced simply because another MicroNet input module fits the same system?
No. MicroNet input modules perform different functions. The 5466-326 is a dedicated pressure interface, while other MicroNet input modules are designed for speed sensing or other signal types. The replacement should match the installed pressure-interface function, transducer arrangement and field termination.
05
What should I send when requesting a quotation for Woodward 5466-326?
Please provide the Part Number, Quantity, Destination, Required Date and Machine/System. For an installed-system replacement, adding the 5437-523 FTM number, cable information, pressure-transducer arrangement and available nameplate details can make configuration checking more precise.
