WOODWARD / ETHERNET INTERFACE
5453-754

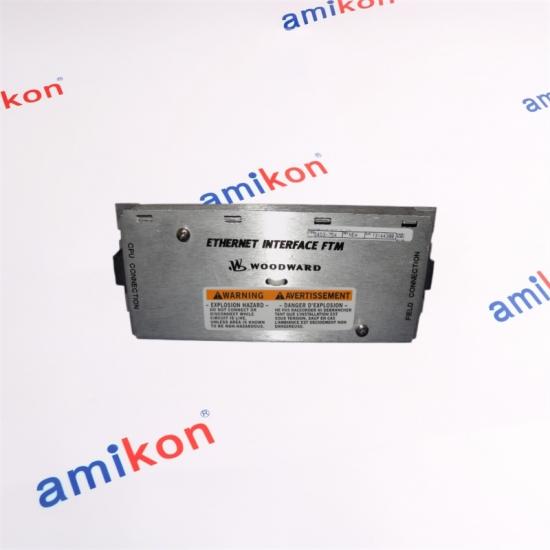

Ethernet Interface Field Termination Module
Woodward 5453-754 is an Ethernet Interface FTM designed for installations where Ethernet cable shield termination and chassis coupling require a defined interface arrangement. The unit provides two female RJ45 connections with different chassis-coupling characteristics.
|
KEY CONFIGURATION
Interface: Ethernet

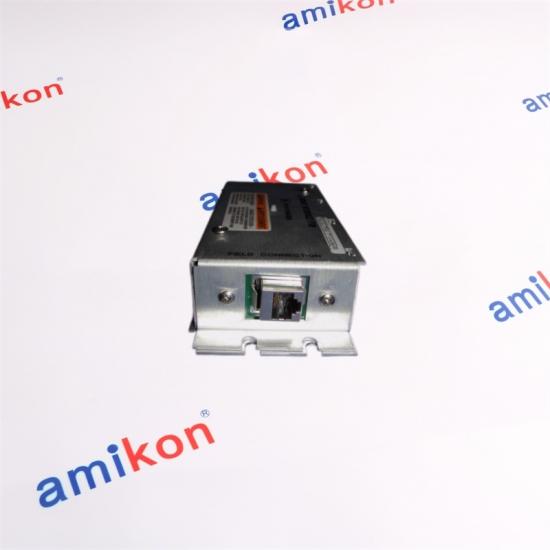

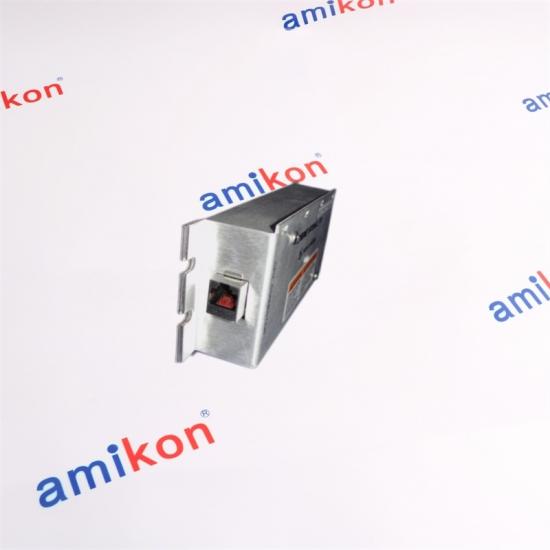

Connectors: 2 × female RJ45
Coupling: AC + direct chassis paths
Role: Ethernet shield termination
|
|
Controlled Shield Path
The interface provides defined chassis-coupling paths for the Ethernet cable shield, supporting installations where shield termination must be controlled.
|
Dual RJ45 Connections
Two female RJ45 connectors are provided. One path is AC-coupled to chassis while the other is directly coupled to chassis.
|
Industrial Network Interface
The 5453-754 functions as an Ethernet interface termination component rather than as a general Ethernet switching device.
|
| Parameter | 5453-754 |
| Part Number | 5453-754 |
| Product Type | Ethernet Interface FTM |
| Network Interface | Ethernet |
| RJ45 Connectors | Two female RJ45 connectors |
| Chassis Coupling | One AC-coupled path and one direct-coupled path |
| Primary Function | Ethernet cable shield / chassis termination interface |
| Installation Consideration | Shielded Ethernet cabling and correct shield-ground arrangement are important for the applicable installation |
| Model | 5453-754 | Two RJ45 chassis-coupling paths |
| Related Model | 5453-750 | Woodward Ethernet Interface FTM family |
|
Ethernet Shield Termination
5453-754 is suited to Woodward Ethernet installations where the cable shield needs a defined connection arrangement with chassis. Its two RJ45 paths provide different coupling characteristics for the shield termination arrangement.
|
Replacement Considerations
When replacing an existing 5453-754, verify the complete part number, installed Ethernet interface, cable routing and chassis-ground arrangement. The RJ45 connector format alone should not be treated as sufficient evidence for interchangeability.
|
|
Communication Instability
Review Ethernet shield continuity and chassis coupling before replacing the main control interface.
|
Grounding Concern
Check whether the installed Ethernet path requires AC coupling at one end and direct chassis connection at the other.
|
Existing Part Replacement
Match the complete 5453-754 part number and verify connector assignment before removing the existing unit.
|
|
