01
CONTROL CORE
|
Product Overview

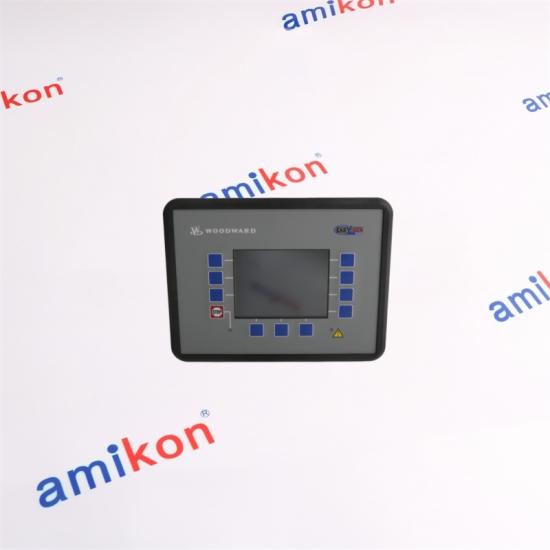

Woodward 8440-1923 belongs to the easYgen-3000 genset control family and is associated with the easYgen-3200 Package 1 configuration. The controller is intended for coordinated generator-set operation where synchronization, breaker management, automatic starting and load sharing need to be handled within one control platform. The 8440-1923 is a 5 A current-sensing version with voltage-sensing configurations covering 120 Vac and 480 Vac applications. Its control architecture supports both isolated generator operation and operation in parallel with a mains supply. |
|
02 / FUNCTION SET
Built Around Generator Coordination
The controller combines generator, engine and mains monitoring with control functions for synchronizing breakers, transferring load and coordinating multiple gensets. The FlexApp concept allows the control functionality to be adapted to different generator-system requirements rather than forcing every installation into one fixed operating sequence. |
|
|
CONTROL SCALE
UP TO 32
gensets in coordinated paralleling operation
|
CURRENT INPUT
5 A
current-sensing configuration
|
VOLTAGE RANGE
120 / 480 VAC
voltage sensing configuration
|
APPLICATION
GENSET
isolated or mains-parallel operation
|
|
03 / DATA
Technical Profile
Key configuration characteristics for purchasing, replacement and system matching. |
|
The easYgen-3000 family was built around different genset control configurations. The 8440-1923 is associated with the easYgen-3200 Package 1 architecture, while related part numbers cover other package, housing and current-sensing configurations.
| 8440-1922 easYgen-3200 family variant |
8440-1923 easYgen-3200 Package 1 / 5 A |
8440-1924 Related easYgen-3200 configuration |
8440-1925 easYgen-3200 Package 2 / cogeneration |
|
05 / SYSTEM ROLE
From Generator Start
to Coordinated Load Instead of treating 8440-1923 as a standalone engine controller, it is better understood as the coordination point between generator measurements, engine control functions, breaker operation and the wider power-management sequence. In a multi-genset installation, its value is concentrated around synchronization, load sharing, load-dependent starting and controlled transfer between generator and mains conditions. |
|
|
06 / FIELD CONDITIONS
Typical System Scenarios
|
|
|
PURCHASE SUPPORT
Need 8440-1923?
Send the exact part number together with the required quantity and destination. This helps us check the correct configuration and arrange the shipment efficiently. RFQ CHECKPOINT
Part Number | Quantity | Destination
Required Date | Machine/System |
|
||||
| Delivery: 3–5 days | Warranty: 12 months | Condition: Brand New | Payment: T/T |
| Delivery way: E-packing / FedEx / EMS / TNT / DHL / UPS | |||
|
07 / BUYER QUESTIONS
8440-1923
FAQ Focused on configuration matching, replacement decisions and lifecycle concerns. |
Q1. Is Woodward 8440-1923 suitable when the existing controller uses 5 A current transformers?
Yes, 8440-1923 is the 5 A current-sensing version within the easYgen-3200 configuration. For replacement work, the existing CT secondary rating, voltage-sensing arrangement, wiring and programmed configuration should still be matched before ordering.
Q2. Can Woodward 8440-1923 replace an older easYgen controller without checking the part number?
The part number should not be matched by appearance alone. The easYgen-3000 family contains different current-sensing, package and application configurations. A replacement should be checked against the installed controller, wiring and system configuration.
Q3. What should buyers verify when sourcing Woodward 8440-1923 for a legacy genset?
Verify the complete part number, 5 A current-sensing requirement, voltage-sensing arrangement, control package, existing I/O wiring and the installed software/configuration. These checks are more important than simply matching the front-panel model name.
Q4. Is Woodward 8440-1923 still relevant when planning a replacement for an existing easYgen-3200?
It can be relevant when the installed system specifically requires the original 8440-1923 configuration. Woodward has documented a later part-number transition from 8440-1923 to 8440-2050, so buyers should determine whether the application requires the original unit or a later replacement configuration.
Q5. Why is Woodward 8440-1923 worth matching by exact configuration rather than series alone?
The easYgen-3000 family contains multiple configurations designed around different sensing and application requirements. Exact matching reduces the risk of ordering a unit with the wrong current input, package configuration or system interface.
|
 |
