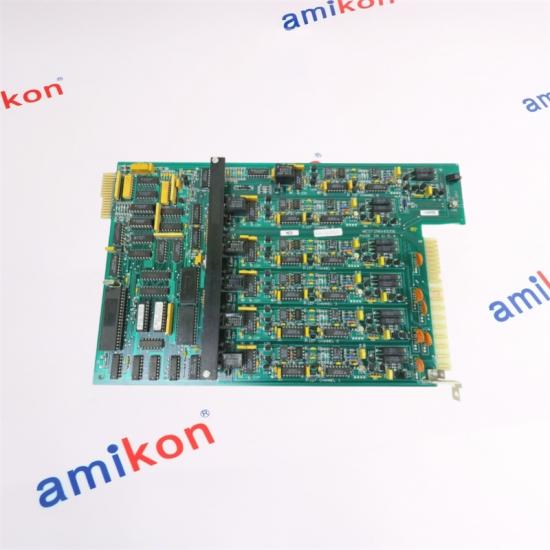

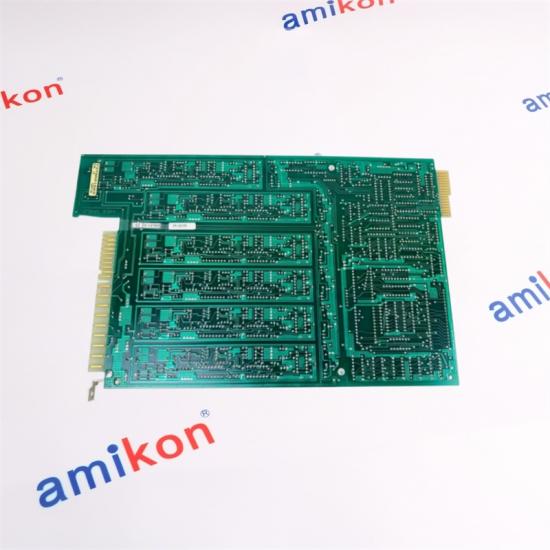

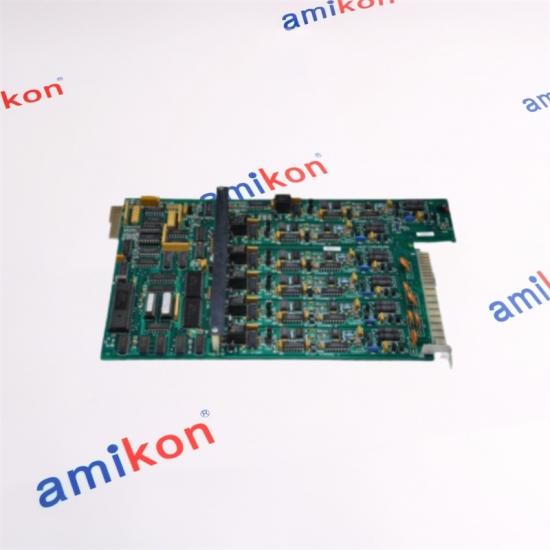

WESTINGHOUSE 7379A21G04 Analog Input Q-Line Card

Choose Amikon

We're faster.

No matter where parts are in the world, we will strive to find all kinds of spare parts for your equipment quickly and efficiently.

International Delivery on the Day

Quick Response Support

Intercontinental Cooperation Network

Sales manager：Miya zheng；Email:sales@amikon.cn；WhatsApp:86-18020776792；WeChat:86-18020776792

Description & Specifications

The QAV card converts an analog field signal to digital data (see Figure1 ).

The digital data is the summation of a frequency that has been counted for a time period. The time period is a multiple of the power line frequency (50 or 60 Hz).

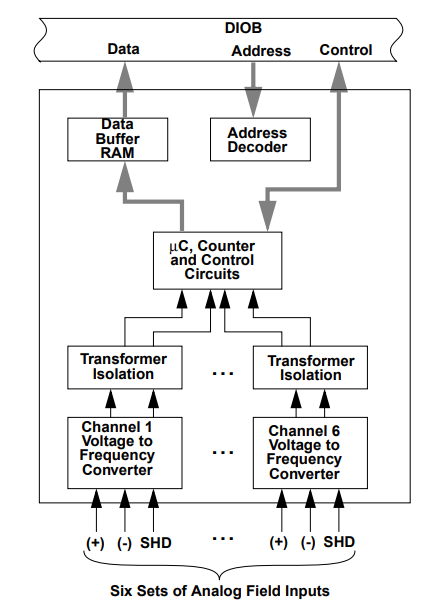

（Figure1. QAV Block Diagram）

Each QAV card contains six individually isolated voltage-to-frequency converter circuits (channels). The output of each input circuit is processed by a common microcomputer and the resulting digital data is multiplexed to the Distributed Input/Output Bus (DIOB) as a 13-bit word.

Figure 2 shows a typical control system configuration using QAV cards. The QTB card is necessary for applications where large variations of power line frequency exist to obtain a high normal mode rejection. Up to 30 QAV cards (180 channels) can be used with one DIOB controller.

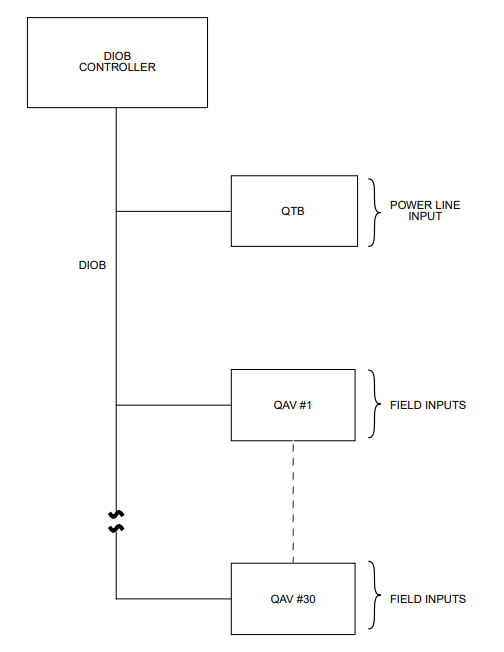

（Figure 2. QAV Typical Control System Using QAV Cards）

Features

Each QAV card has the following features:

² IEEE surge withstand capability

² Auto zero, auto gain correction

² Electrical isolation on all channels

² On-card digital memory (buffer)

² Common mode rejection

² Normal mode rejection

² Automatic reasonability test (shorted input)

² Auto-conversion check

² Jumper selectable 50/60 Hz operation

The QAV card is designed to be mounted in a standard Q-line card cage. Connection to the control system is made by a 34-pin rear-edge backplane connector which interfaces the UIOB or DIOB and a 56-pin front-edge connector, which connects to field terminals.
