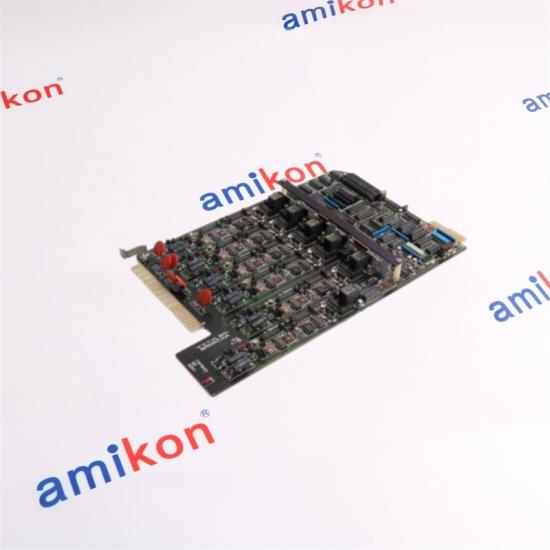

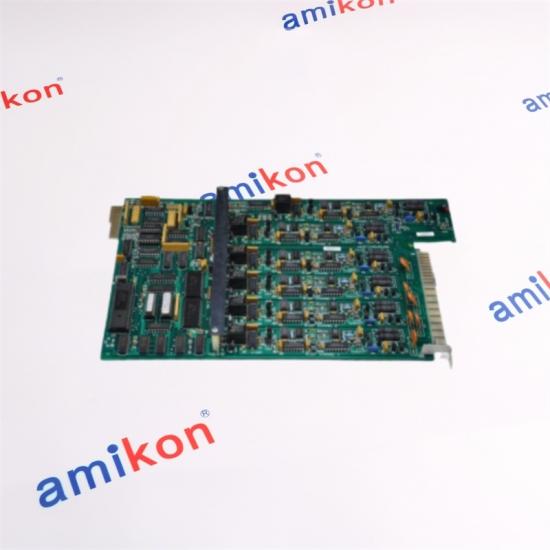

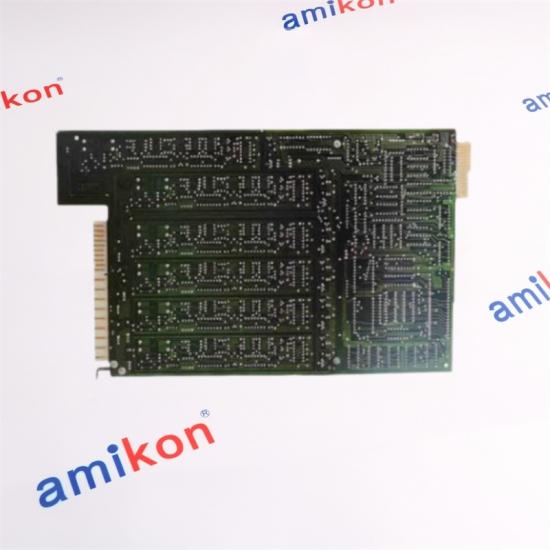

WESTINGHOUSE 7379A21G02 Analog Input Q-Line Card

Choose Amikon

We're faster.

No matter where parts are in the world, we will strive to find all kinds of spare parts for your equipment quickly and efficiently.

International Delivery on the Day

Quick Response Support

Intercontinental Cooperation Network

Please contact us for more related Information

Sales manager：Miya zheng；Email:sales@amikon.cn；WhatsApp:86-18020776792；WeChat:86-18020776792

Description & Specifications

The QAV card converts an analog field signal to digital data (see Figure ).

The digital data is the summation of a frequency that has been counted for a time period. The time period is a multiple of the power line frequency (50 or 60 Hz).

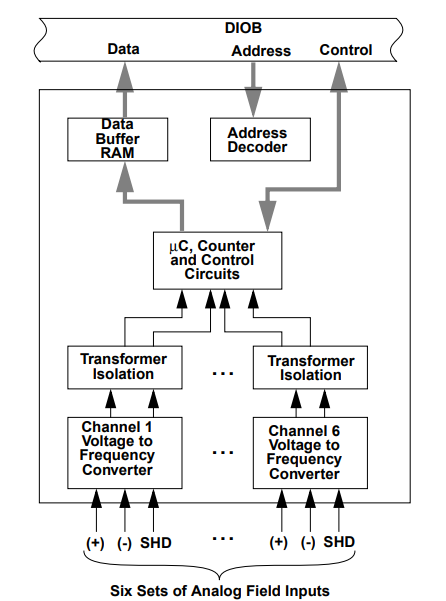

Figure QAV Block Diagram

Features

Each QAV card has the following features:

² IEEE surge withstand capability

² Auto zero, auto gain correction

² Electrical isolation on all channels

² On-card digital memory (buffer)

² Open thermocouple detection (This feature is not available on G04 and G05 QAV cards.)

² Common mode rejection

² Normal mode rejection

² Automatic reasonability test (shorted input)

² Auto-conversion check

² Jumper selectable 50/60 Hz operation

² On-card thermocouple temperature compensation (Available on QAV cards at level 6 QAV)

The QAV card is designed to be mounted in a standard Q-line card cage. Connection to the control system is made by a 34-pin rear-edge backplane connector which interfaces the UIOB or DIOB and a 56-pin front-edge connector, which connects to field terminals.

FAQ About 7379A21G02 Q-Line QAV Card

Q1: How does the 7379A21G02 Q-Line QAV Card enhance communication integrity within industrial control architectures?
A: The 7379A21G02 integrates RS-485 and Modbus communication protocols, enabling reliable data exchange between field devices and control systems while maintaining stable network performance in demanding industrial environments.

Q2: What operational advantages does the 7379A21G02 provide when deployed in mission-critical automation applications?
A: The 7379A21G02 delivers dependable control functionality with a 220V AC operating voltage, 5A input current rating, and 25W output power, making it suitable for continuous-process and high-availability automation systems.

Q3: Why is the 7379A21G02 Q-Line QAV Card considered a space-efficient solution for modern control cabinets?
A: With compact dimensions of 120 mm × 50 mm × 30 mm and a lightweight 0.2 kg design, the 7379A21G02 optimizes panel space utilization while simplifying installation and maintenance procedures.

Q4: Which compliance and quality standards validate the industrial suitability of the 7379A21G02?
A: The 7379A21G02 is certified to UL, CE, and ISO 9001 standards, demonstrating conformity with internationally recognized requirements for safety, quality management, and industrial reliability.

Q5: In what types of control system environments can the 7379A21G02 Q-Line QAV Card be most effectively utilized?
A: The 7379A21G02 is engineered for integration into distributed control systems (DCS), process automation platforms, and industrial monitoring networks where robust communication, stable power handling, and consistent operational performance are essential.
