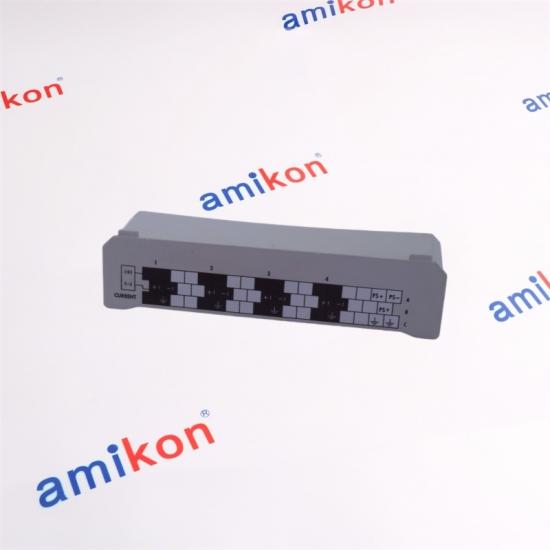

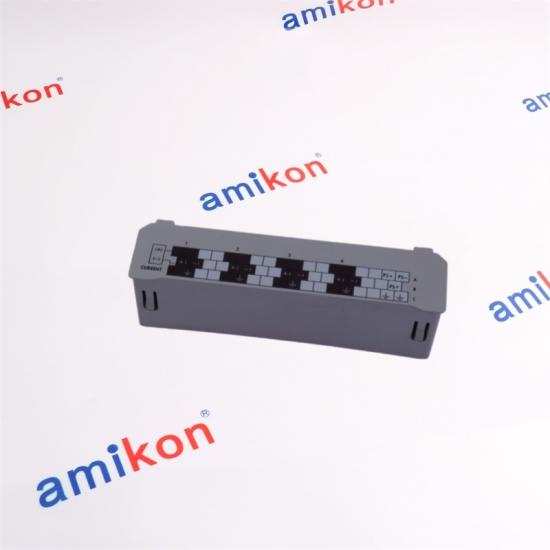

WESTINGHOUSE 1X00188H01 P-mod Cavity Insert

Why choose Amikon Limited

1. We provide more professional knowledge.

2. Exclusive Multilingual Support Team

3. Customized Customer Relation Management and Order Tracking System

4. No additional charges, handling charges or hidden charges are incurred.

 Email:sales@amikon.cn  WhatsApp:86-18020776792  WeChat:86-18020776792

Descripution - 1X00188H01

The Emerson Ovation 1X00188H01 is a P-mod cavity insert (personality module) designed for HART High-Performance Analog Output cards within the Ovation distributed control system (DCS).

Technical specifications - 1X00188H01

About HART Analog Input Module

HART (Highway Addressable Remote Transducer) is a digital communication protocol designed for industrial process measurement applications. Field measurement devices (transmitters) interface a process control system via an analog 4-to-20 mA current loop. HART uses a low-level frequency shift-keyed sine wave signal that is superimposed on the standard 4-to-20 mA process measurement current loop. Since the HART sine wave signal is small and its average value is zero, the current loop analog 4-to-20 mA signal is not significantly affected by the presence of the HART signal. Using HART allows a field device to provide more than one measurement, which is a feature not available when using only the 4-to-20 A analog current signal.

“Smart” field devices may be described as field devices in which the analog 4-to-20 mA signal, digital communication, and sometimes power, co-exist on the same pair of wires. The Ovation HART Analog Input (HAI) module is a standard form factor Ovation I/O module, which will permit Ovation to communicate with HART devices.

The HART Analog Input Module is applicable for CE Mark configured systems.

Module Block Diagram

The Ovation HART Analog Input Module assembly consists of two modules, an electronics module containing a logic printed circuit board (LHA) and a field printed circuit board (FHI). The simplified block diagram for the FHI field board is shown in Figure. The electronics module is used in conjunction with a personality module, which contains a single printed circuit board (PHAI).

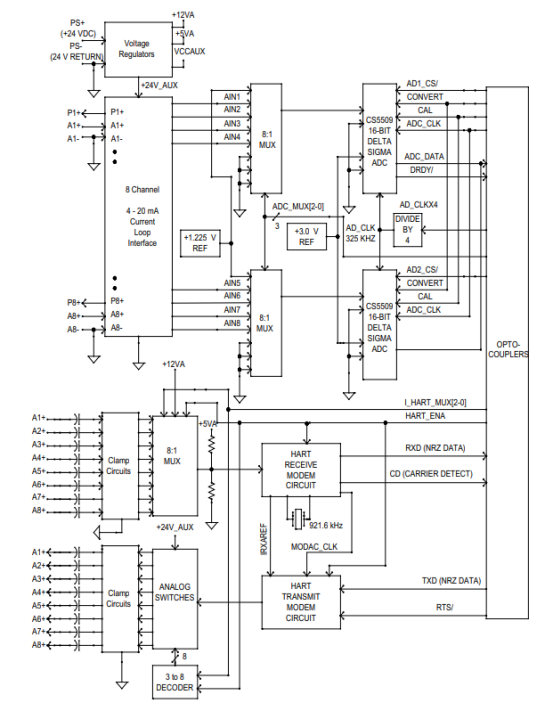

HART Analog Input Electronics Module FHI Field Board Block Diagram

FAQ - 1X00188H01

Q1. What functional role does the 1X00188H01 P-mod Cavity Insert play within Emerson automation and control system assemblies?

The 1X00188H01 serves as a precision-engineered P-mod cavity insert designed to support proper module positioning and mechanical integration within Emerson control system architectures. Its design helps maintain assembly integrity and reliable component alignment.

Q2. How does the material composition of the 1X00188H01 contribute to long-term durability in industrial operating environments?

The 1X00188H01 is manufactured from high-quality industrial-grade plastic, providing excellent resistance to corrosion, moisture exposure, and environmental degradation. This material selection ensures dependable performance throughout extended service cycles.

Q3. Why is the 1X00188H01 suitable for deployment in facilities experiencing extreme temperature fluctuations?

The 1X00188H01 is designed to operate within a temperature range of -40°C to +70°C, allowing it to maintain structural stability and dimensional accuracy in both low-temperature and high-temperature industrial applications.

Q4. Which environmental resilience characteristics distinguish the 1X00188H01 for use in demanding process automation installations?

The 1X00188H01 supports operation in humidity levels from 5% to 95% RH (non-condensing), making it suitable for environments where moisture levels vary significantly. This capability helps preserve component reliability and installation integrity.

More models
