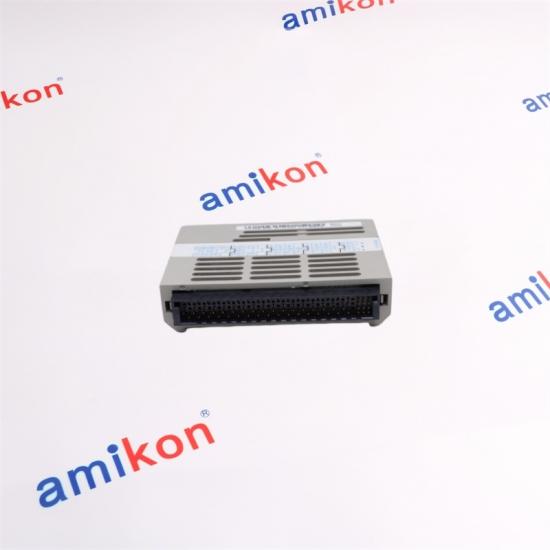

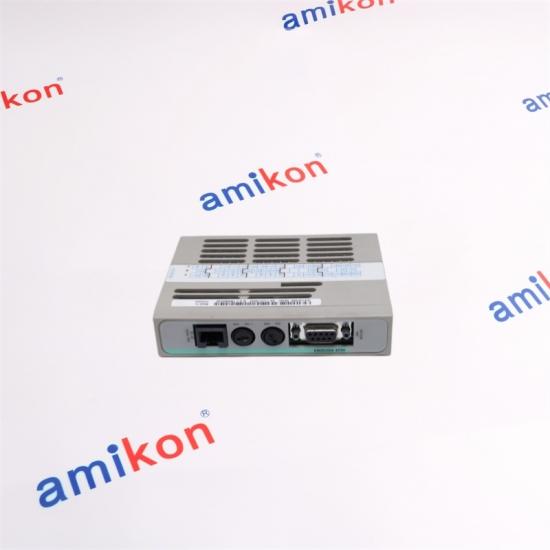

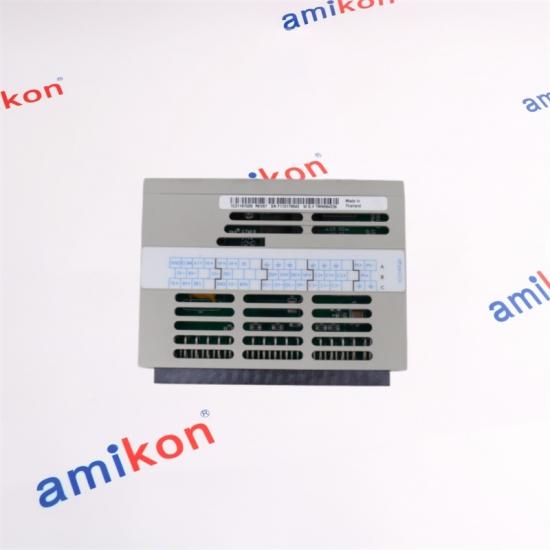

WESTINGHOUSE 1C31197G05 Valve Positioner Controller Module

▏Choose Amikon

Our service is more professional.

We are the ideological leader of the world's automation manufacturing industry and are committed to promoting global industry exchanges. No matter how complex your problem is, our experienced professional team will use the industry knowledge accumulated for many years to provide you with the most efficient solutions.

⇒ Email:sales@amikon.cn  WhatsApp:86-18020776792  WeChat:86-18020776792

▏Descripution & specifications - 1C31197G05

The 1C31197G05 is a Valve Positioner Controller Module. This module will provide an interface between an Ovation Controller and ONE Electro-Hydraulic (EH) servo-valve actuator in the field.

1C31197G05 has 330 Ohm resistors that provide up to ±24.9 mA into 82 ohm servo coils. Use with any Valve Positioner Electronics module.Only two coils may be driven by 1C31197G05. Use with any Valve Positioner Electronics module. The C3+ and C3- coil outputs are not available.

▏Description and Guidelines for Redundant VP Module

Two Ovation Valve Positioner (VP) cards (Primary and Backup) operate as a Primary backup pair to control a single steam valve (see Figure). The steam valve is fitted with two LVDTs, one connected to each Valve Positioner. Each VP then drives one coil in a high pressure hydraulic servo valve. The coils are completely isolated.

The Valve Positioners communicate serially to determine which VP should be Primary, and which should be Backup. Critical parameters of the redundant subsystem are exchanged over the serial link. These critical parameters are also exchanged over the Ovation bus, thus providing a redundant data path.

The Backup VP suspends its software PI routine, and replicates the servo output of the Primary. It then takes over control if the Primary fails. There are three types of failures that the subsystem will detect and respond to:

● Hardware Failures - Each VP continuously runs internal diagnostics and will cease operations if a diagnostic fails. A failure is indicated when both the serial communications and Ovation line watchdog timers expire. The VP card continuously executes these diagnostics:

— Microcontroller RAM

— Ovation RAM

— EPROM Checksum

— DA Converter Readback

— Ovation Watchdog Timer

— Redundant Communications Watchdog Timer

● Coil Drive - If the Primary VP detects a shorted or open servo coil, it will transfer control to the Backup VP. There is a customer setup requirement described in the section on servo coil failures.

● LVDT Failures - LVDT failures are detected by measuring the derivative of position feedback. As with the servo coil, there are setup requirements that enable the detection of LVDT problems. The requirements are described in the section on LVDT failures.

The VP pair utilizes the SLIM serial port for VP-to VP communications. The serial link is a VP-to-VP connection, not the “party-line” bus utilized with the SLIM.

Failover events are NOT bumpless (that is, the valve will dip, or move in the direction indicated by the mechanical bias setting, during the failover period). Catastrophic hardware failures, or removal of the Primary VP, are the worst failures because the Backup must wait for various timers to expire and then engage the PI loop.

If, for example, the failover required one second to complete (determined by the Controller loop time for example), and the valve was programmed to drift shut in 30 seconds under control of the mechanical bias-setting, the valve could drift 3% (=1/30).

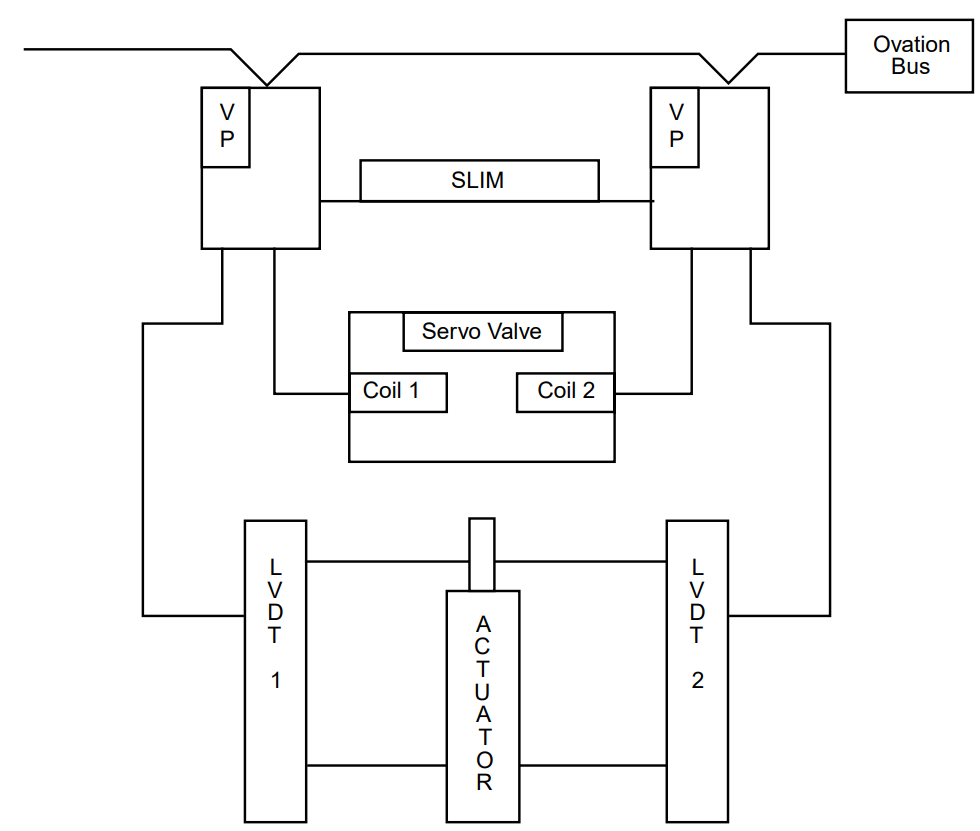

 Redundant Ovation Valve Positioner Subsystem

▏FAQ - 1C31197G05

1. How does the 1C31197G05 enhance signal integrity and operational reliability within Ovation control system architectures?

The 1C31197G05 is engineered to support stable signal processing and dependable communication between control system components. Its industrial-grade design helps minimize signal degradation, contributing to improved system accuracy and operational continuity.

2. Why is the 1C31197G05 considered a strategic component for modern process automation and plant control applications?

The 1C31197G05 is designed to integrate seamlessly into sophisticated automation environments, enabling efficient data exchange and control functions. Its reliability makes it a valuable asset in power generation, water treatment, and industrial manufacturing facilities.

3. What installation parameters should engineers evaluate before deploying the 1C31197G05 in a mission-critical control cabinet?

When integrating the 1C31197G05, engineers should assess system compatibility, power requirements, environmental conditions, wiring topology, and available cabinet space. Proper configuration ensures optimal performance and long-term operational stability.

4. How does the 1C31197G05 contribute to maximizing system availability and minimizing unplanned downtime?

The 1C31197G05 is manufactured to withstand continuous industrial operation, helping reduce the likelihood of communication failures and control interruptions. Its robust construction supports extended service life and enhances overall system dependability.

5. Which technical characteristics make the 1C31197G05 suitable for deployment in demanding industrial environments?

The 1C31197G05 is built for high-reliability automation applications where durability, consistent performance, and seamless system integration are essential. Its industrial design philosophy supports operation in challenging process environments while maintaining stable control system functionality.
