Manufacturer / Brand |
WESTINGHOUSE |
|
Part Number |
1X00024H01 WH1-2FF |
|
Dimensions |
4.0" × 16.0" × 7.0" (10.2 cm × 40.6 cm × 17.8 cm) |
|
Weight |
7 lbs 12 oz (3.5 kg) |
Ø Choose Amikon
|
Our service is more professional. |
||
|
We are the ideological leader of the world's automation manufacturing industry and are committed to promoting global industry exchanges. No matter how complex your problem is, our experienced professional team will use the industry knowledge accumulated for many years to provide you with the most efficient solutions. |
||
|
Email:sales@amikon.cn |
WhatsApp:86-18020776792 |
WeChat:86-18020776792 |
Ø Descripution & Technical specifications
|
Descripution |
|
|

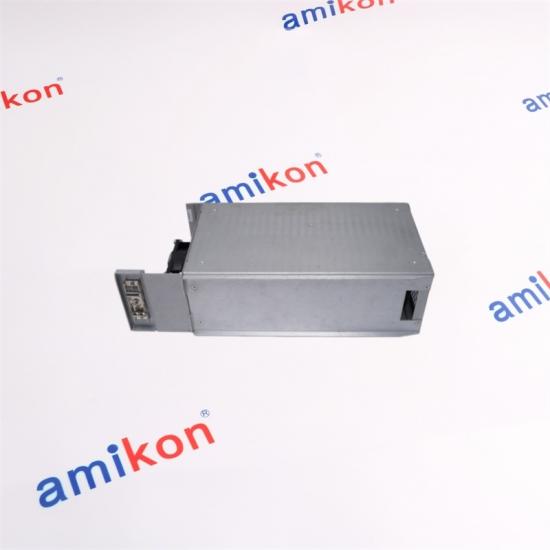

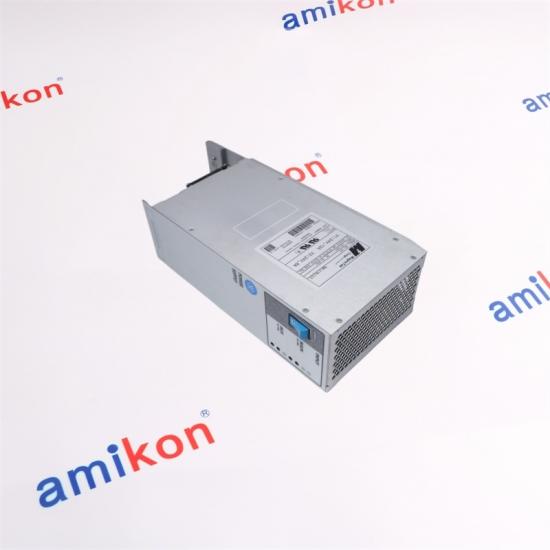

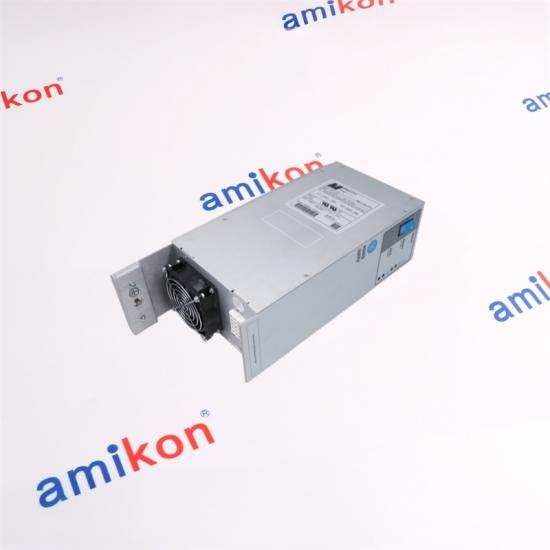

The Ovation 1X00024H01 WH1-2FF is an industrial power supply module manufactured by Emerson. It provides reliable DC power for various industrial applications. This unit accepts a wide range of AC input voltages (100-240VAC) and converts it to a stable 24VDC output. With a capacity of 12A, it can power a variety of industrial equipment. |
|
|
Parameter |
Specification |
|
Input Voltage |
100–240 VAC |
|
Input Current |
8 A |
|
Input Frequency |
50–60 Hz |
|
Output Voltage |
24 VDC |
|
Output Current |
12 A |
|
Dimensions |
4.0" × 16.0" × 7.0" (10.2 cm × 40.6 cm × 17.8 cm) |
|
Weight |
7 lbs 12 oz (3.5 kg) |
Ø Power Supply Features
Ovation power supplies provide the following features:
l Wide range inputs.
— 85 - 264 VAC
— 90 - 250 VDC
l Main power supply and auxiliary power supply can be contained in the same module.
l 24 VDC Main and 24/48 VDC auxiliary outputs.
— Power factor corrected
— Hot swap capability (on-line replacement in redundant configurations)
— 32 mS hold-up time
l LEDs on the front panel indicate conditions of input/output voltages

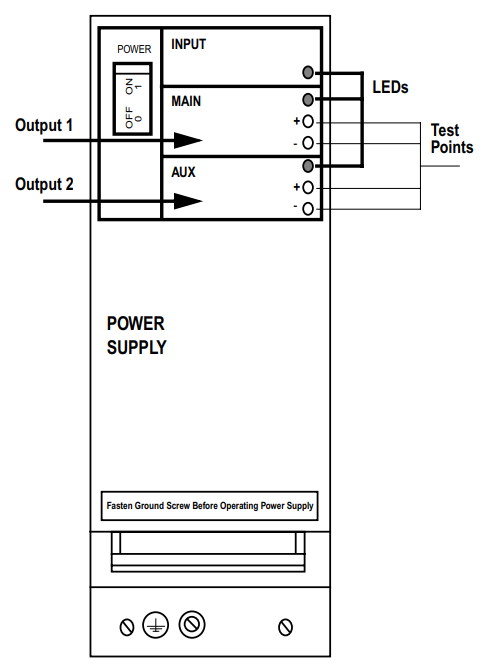

Typical Power Supply Front Panel (AC Input Version)
Ø FAQ
1. How does the 1X00024H01 WH1-2FF ensure dependable DC power delivery for critical industrial automation infrastructures?
The 1X00024H01 WH1-2FF converts a wide AC input range of 100–240 VAC into a regulated 24 VDC output, providing stable power for controllers, I/O modules, communication equipment, and other mission-critical automation devices.
2. Why is the 1X00024H01 WH1-2FF particularly advantageous for multinational facilities operating under diverse electrical standards?
The 1X00024H01 WH1-2FF supports a universal input voltage range of 100–240 VAC at 50–60 Hz, enabling seamless deployment across different geographic regions without requiring extensive power system modifications.
3. What load-management capabilities distinguish the 1X00024H01 WH1-2FF in high-demand control system environments?
With an output rating of 24 VDC at 12 A, the 1X00024H01 WH1-2FF is capable of supplying substantial power to multiple field devices and control components simultaneously, helping maintain system stability during continuous industrial operation.
4. Which engineering factors should be assessed when integrating the 1X00024H01 WH1-2FF into an existing control cabinet architecture?
Before installing the 1X00024H01 WH1-2FF, engineers should evaluate power consumption requirements, thermal management strategies, wiring configurations, load distribution, and available enclosure space. Proper implementation ensures optimal efficiency and long-term operational reliability.
