WESTINGHOUSE 1C31129G03 Electronics Module

Number of Channels

4

Maximum Update Time

2 ms

Output Range

0–5 V, 0–10 V, 0–20 mA

Resolution

12 bits

Guaranteed Accuracy (@25°C)

±0.1% of Full Scale

Temperature Coefficient

30 ppm/°C

User Loop Voltage

Power for current loop output supplied by module

Dielectric Isolation (Channel to Channel)

1000 V AC/DC

Dielectric Isolation (Channel to Logic)

1000 V AC/DC

Current Output Loading

0 Ω minimum; 750 Ω maximum

Voltage Output Loading

10 mA maximum

Module Power (Current Output)

4 W typical; 6 W maximum

Module Power (Voltage Output)

2 W typical; 3 W maximum

Operating Temperature Range

0°C to 60°C (32°F to 140°F)

Storage Temperature Range

-40°C to 85°C (-40°F to 185°F)

Humidity (Non-Condensing)

0% to 95% RH

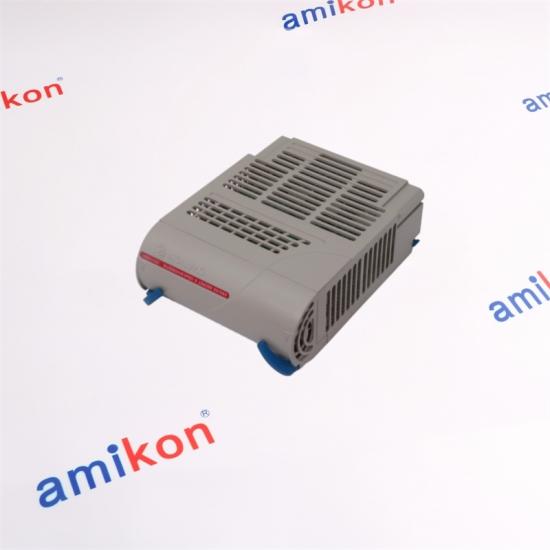

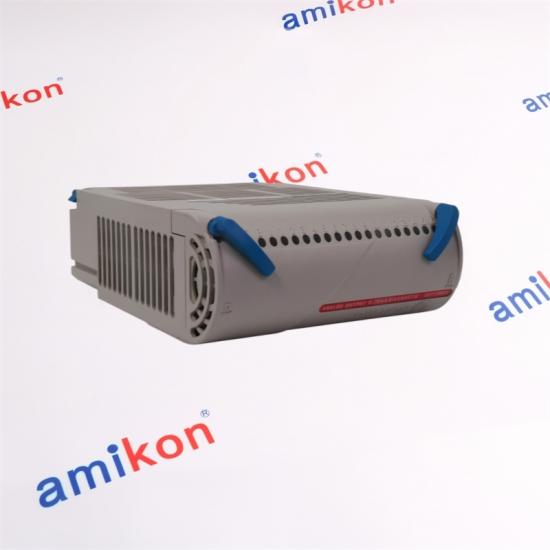

The 1C31129G03 Electronics Module is part of an I/O module, comprising a plastic housing, along with associated lenses and labels. It can accommodate up to two printed circuit boards (a logic board and a field board), providing the electronics needed to connect field devices to the I/O controller.

Writeable surface labels are provided on Electronics modules so that up to 16 point names can be identified on each label.

The labels on the Electronics modules are color-coded to match the appropriate modules.

Q1: How does the 1C31129G03 Electronics Module achieve exceptional analog output precision for sophisticated process automation applications?

The 1C31129G03 Electronics Module incorporates 12-bit resolution and high-accuracy output circuitry, enabling precise signal transmission for critical control loops, instrumentation interfaces, and process regulation tasks.

Q2: Why is the 1C31129G03 Electronics Module considered an optimal solution for multi-signal industrial control architectures?

With four independently configurable output channels supporting voltage and current signals, the 1C31129G03 Electronics Module offers remarkable versatility for integrating a wide range of field devices and control elements.

Q3: What protective design attributes distinguish the 1C31129G03 Electronics Module in electrically demanding environments?

The 1C31129G03 Electronics Module provides 1000 V AC/DC isolation between channels and logic circuits, enhancing noise immunity, reducing the risk of signal corruption, and improving overall system reliability.

Q4: How does the 1C31129G03 Electronics Module maintain output stability when exposed to fluctuating environmental conditions?

Featuring a low temperature coefficient of 30 ppm/°C and operation across a 0°C to 60°C temperature range, the 1C31129G03 Electronics Module delivers highly stable performance under varying industrial conditions.

Q5: Which technical parameters should engineers scrutinize before deploying the 1C31129G03 Electronics Module in a high-availability control system?

Engineers should evaluate update rates, output signal requirements, load impedance characteristics, isolation specifications, power consumption, and environmental factors to ensure the 1C31129G03 Electronics Module is optimally matched to the application.

Q6: What makes the 1C31129G03 Electronics Module particularly advantageous for precision-driven process industries?

The combination of rapid 2 ms update capability, configurable analog outputs, robust electrical isolation, and dependable accuracy allows the 1C31129G03 Electronics Module to support stringent performance requirements in power generation, chemical processing, oil and gas, and advanced manufacturing facilities.
