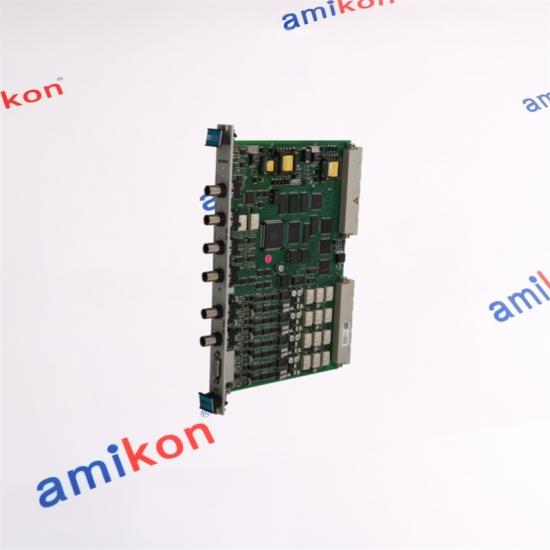

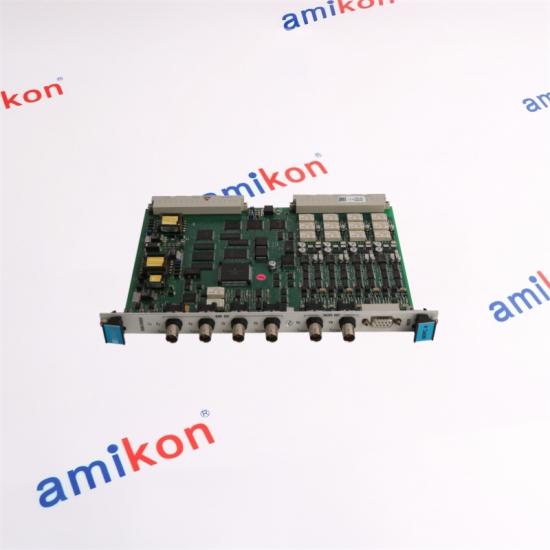

VIBRO-METER VM600 MPC4 200-510-074-113 standard machinery protection card

VIBRO METER VM600 MPC4 200-510-071-113
VIBRO METER VM600 MPC4 200-510-071-113
VIBRO METER VM600 MPC4 200-510-071-113

VIBRO-METER VM600 MPC4 200-510-074-113 standard machinery protection card

Calculate shipping
Quotation Request
VIBRO-METER

MPC4
MACHINERY
PROTECTION
▁▂▄▆█▆▄▂▁
VM600
SYSTEM CARD
VM600 MPC4 · EARLY STANDARD BUILD
200-510-074-113
Real-time vibration and speed supervision with programmable Alert, Danger and measurement-chain OK thresholds.
04 DYNAMIC INPUTS Four independently programmable measurement channels
02 SPEED INPUTS Two tachometer channels for speed and phase
2 kΩ BUFFERED PATH Legacy 2000 Ω buffered output impedance

GLOBAL RESPONSE
↗ International Delivery on the Day
⚙ Quick Response Support
◎ Intercontinental Cooperation Network

Sales Manager
Miya Zheng
✉ sales@amikon.cn ◉ 86-18020776792
◈4 DYNAMIC · 2 SPEED◎
STANDARD MPC4 · LEGACY 113 HARDWARE

VIBRO-METER VM600 MPC4 200-510-074-113

VIBRO-METER VM600 MPC4 200-510-074-113 is a standard machinery protection card for continuous online monitoring of critical rotating equipment. It processes four dynamic sensor channels and two speed channels, applies programmable measurement and alarm logic, and works with a matching IOC4T card to provide rear-rack field connections, analog outputs, discrete control inputs and relay functions. MPC4
MACHINERY
PROTECTION
Confirm VM600 MPC4 200-510-074-113 compatibility
Sales Manager: Miya Zheng · Send the full PNR, IOC card, rack details, quantity and destination.
EMAIL · sales@amikon.cnWHATSAPP · 86-18020776792
Version-specific purchasing point
The 074 segment denotes the embedded program generation and the final 113 segment marks an earlier hardware generation. Earlier MPC4/IOC4T pairs use the legacy buffered-output circuit with 2 kΩ output impedance. Pair the card with the correct IOC4T generation; do not mix it casually with the later 50 Ω arrangement.

Verified Electrical and Measurement Profile

Dynamic inputs 4 individually programmable channels Speed inputs 2 tachometer channels
Voltage input, DC 0 to +20 V or 0 to -20 V Voltage input, AC ±10 V maximum
Current input, DC 0 to 25 mA Current input, AC ±8 mA maximum
Common-mode range -50 to +50 V Input impedance 200 kΩ
Analog input bandwidth DC to 60 kHz (-3 dB) Processed AC range 0.1 Hz to 10 kHz without integration
Integrated AC range 2.5 Hz to 10 kHz Current measuring resistor 324.5 Ω
PROTECTION ENGINEERING

Channel Processing, Alarms and Diagnostics

◆ Four dynamic channels
Each channel can be independently configured for supported acceleration, velocity, displacement, proximity, dynamic pressure and related machinery measurements.		 ◎ Two tachometer channels
Speed inputs accept compatible proximity, magnetic pulse or TTL-type signals. Fractional tachometer ratios and speed-dependent alarm adaptation are supported.		 ◈ Broadband processing
Programmable high-pass, low-pass and band-pass filtering supports a wide range of rotating-machine protection tasks. Integration enables conversion among acceleration, velocity and displacement domains.
◆ Alarm strategy
Alert and Danger setpoints, time delay, hysteresis and latching are configurable. Setpoints may be adapted using speed or external control conditions.		 ◎ Diagnostics
Power-up self-test and continuous OK monitoring supervise signal paths, transducers and conditioners. Front indications show card, channel and alarm condition.		 ◈ Buffered raw signals
Front BNC outputs provide access to buffered dynamic signals. The associated IOC4T exposes corresponding rear outputs and the required field termination paths.
VM600 SIGNAL PATH

MPC4 / IOC4T System Relationship

Sensors
Acceleration, velocity, proximity and speed signals		 MPC4 074-113
Measurement, filtering, alarms and channel supervision		 IOC4T legacy pair
Field termination, analog output, DSI and four local relays		 VM600 rack
Power, buses and optional RLC16/IRC4 relay expansion

Amikon industrial service

 Amikon industrial service

Amikon's large stock is the core of our supply.
More than 400,000 electronic products across PLC, HMI, drives, servo, CNC, IPC and PG categories.
 Amikon industrial service

Current and long-unavailable industrial products are coordinated through strategic purchasing. A preferred supplier network supports urgent searches when an item is temporarily unavailable. Worldwide service, multilingual support and order tracking help reduce production interruption.
Contact Miya Zheng for VM600 MPC4 200-510-074-113
Sales Manager: Miya Zheng · Send the full PNR, IOC card, rack details, quantity and destination.
EMAIL · sales@amikon.cnWHATSAPP · 86-18020776792
Prompt contact
Notify us within seven days after receipt if an issue is found.		 Original condition
Keep the unit unchanged and provide the specific return reason.		 Return freight
Shipping costs arising from the return are borne by the buyer.
PURCHASING QUESTIONS

VM600 MPC4 200-510-074-113 FAQ

01 Can VM600 MPC4 200-510-074-113 be paired with any IOC4T card?
No. This earlier hardware generation must be matched to the compatible IOC4T buffered-output generation and rack arrangement.
02 What must be copied before replacing VM600 MPC4 200-510-074-113?
Preserve every channel type, sensor sensitivity, measurement mode, filter, full-scale range, Alert/Danger threshold, delay, hysteresis, latch and relay route.
03 Why could VM600 MPC4 200-510-074-113 show an OK fault after replacement?
Check sensor power, wiring continuity, transducer bias or gap, IOC4T seating, channel setup and the selected voltage or current input mode.
04 Can VM600 MPC4 200-510-074-113 use the same buffered-output load as a 115 card?
Do not assume so. The 113 generation uses the legacy higher-impedance buffered-output circuit, while later 115 hardware uses 50 Ω.
05 What should be tested before VM600 MPC4 200-510-074-113 returns to protection duty?
Validate raw signal quality, processed amplitude, speed, phase, alarm thresholds, relay routes, DSI bypass/trip-multiply behavior and system-fault handling.
