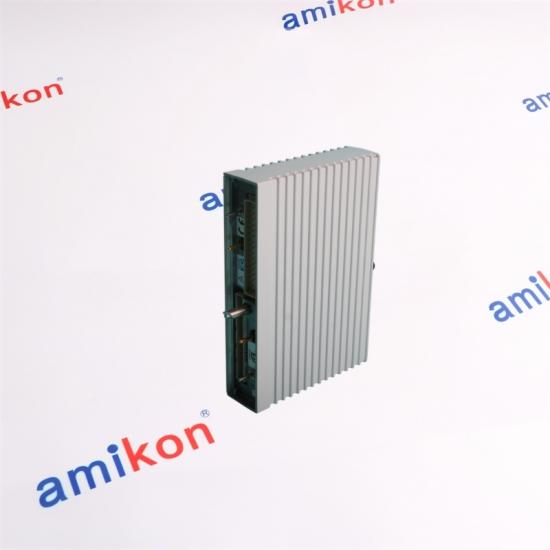

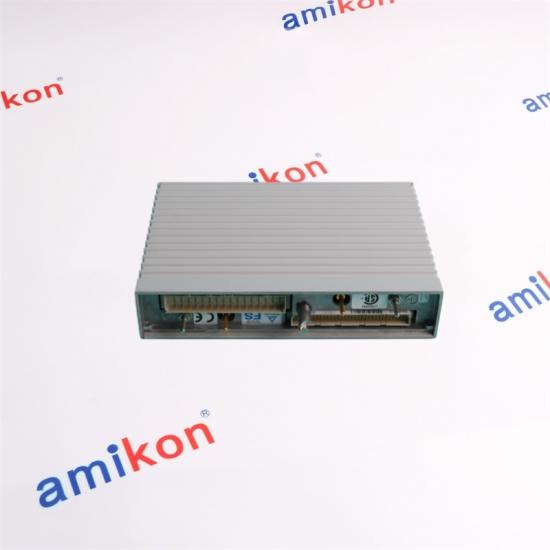

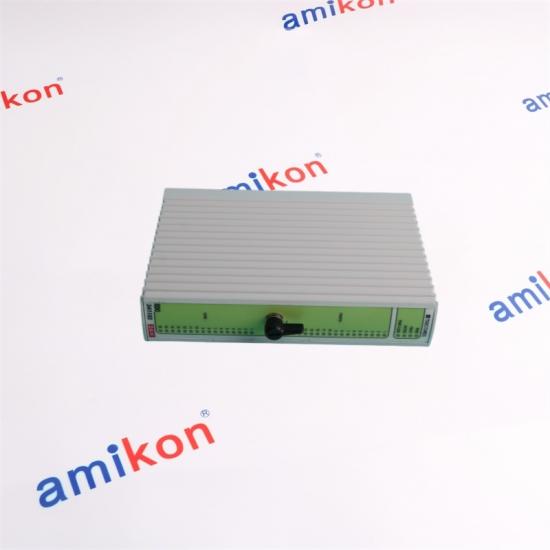

TRICONEX SDO 3411 Supervised Digital Output Modules

Overview

The TRICONEX SDO 3411 is a high-integrity, 24 VDC solid-state digital output module designed for the Triconex Tricon Safety Instrumented System (SIS). It features Triple Modular Redundant (TMR) architecture to ensure fault tolerance and TÜV SIL3-rated reliability for critical applications like emergency shutdowns

Specifications

Supervised Digital Output Modules

Designed for the most critical control programs, Supervised Digital Output (SDO) modules meet the needs of systems whose outputs remain in a single state for extended periods of time (in some applications, for years). An SDO module receives output signals from the Main Processors on each of three channels. Each set of three signals is then voted upon by a fully faulttolerant quadruplicated output switch whose elements are power transistors, so that one voted output signal is passed to the field termination.

Each SDO module has voltage and current loopback circuitry coupled with sophisticated online diagnostics that verify the operation of each output switch, the field circuit and the presence of a load. This design provides complete fault coverage without the need to influence the output signal.

The modules are called “supervised” because fault coverage is extended to include potential field problems. In other words, the field circuit is supervised by the SDO module so that the following field faults can be detected:

l Loss of power or blown fuse

l Open or missing load

l A field short resulting in the load being energized in error

l A shorted load in the de-energized state

Failure to detect field voltage on any output point energizes the power alarm indicator. Failure to detect the presence of a load energizes the load alarm indicator.

All SDO modules support hot-spare modules and require a separate external termination panel (ETP) with a cable interface to the Tricon controller backplane.

FAQ

Q1: How does the TRICONEX SDO3411 optimize safety-critical digital output execution while preserving deterministic response characteristics in Triple Modular Redundant (TMR) control architectures?
A: The TRICONEX SDO3411 is engineered to deliver highly reliable digital output control within TMR safety systems. Its fault-tolerant architecture continuously validates output integrity, ensuring deterministic switching performance and uninterrupted process availability even when individual channels experience faults.

Q2: Why is the TRICONEX SDO3411 considered a preferred digital output module for high-availability emergency shutdown (ESD) and process safeguarding applications?
A: The TRICONEX SDO3411 combines redundant diagnostics, continuous self-monitoring, and secure output isolation to maximize operational reliability. These capabilities make it particularly suitable for emergency shutdown, burner management, turbine protection, and other SIL-rated safety instrumented systems.

Q3: What diagnostic intelligence distinguishes the TRICONEX SDO3411 from conventional digital output modules in mission-critical industrial environments?
A: The TRICONEX SDO3411 incorporates extensive online diagnostics that continuously monitor output channel health, communication integrity, and hardware status. This proactive diagnostic capability enables early fault detection, minimizes unplanned downtime, and simplifies predictive maintenance strategies.

Q4: Which engineering considerations should be evaluated when integrating the TRICONEX SDO3411 into an existing Tricon safety controller infrastructure?
A: When deploying the TRICONEX SDO3411, engineers should verify controller compatibility, output load characteristics, wiring configuration, field device requirements, and overall system redundancy strategy. Proper integration ensures full utilization of the module's fault-tolerant performance and diagnostic capabilities.

Q5: How does the TRICONEX SDO3411 contribute to long-term operational resilience and lifecycle reliability in demanding industrial automation systems?
A: The TRICONEX SDO3411 enhances system resilience through continuous fault monitoring, redundant hardware architecture, and dependable digital output operation. Its robust industrial design supports long service life, reduces maintenance interventions, and helps maintain maximum process uptime in critical automation applications.
