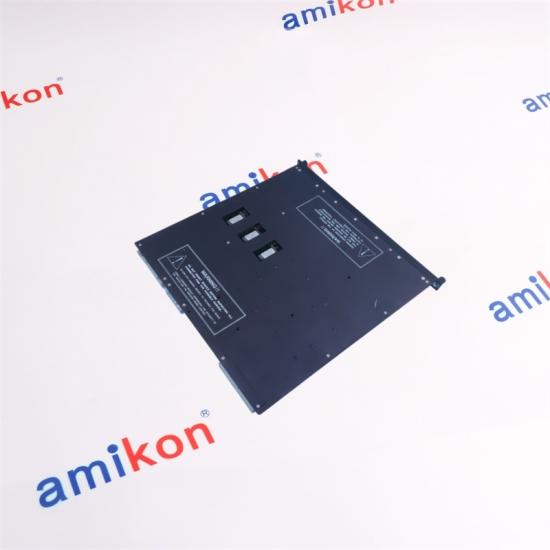

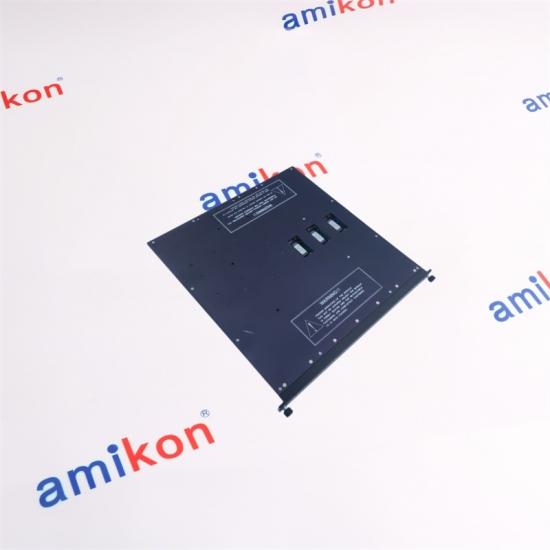

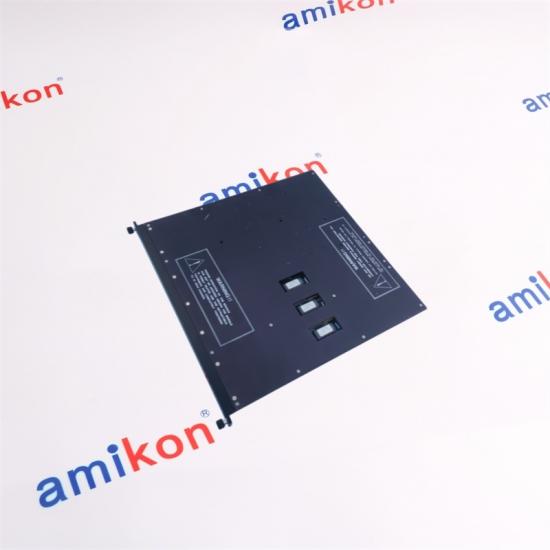

TRICONEX 3607E TMR Digital Output Module

Calculate shipping

Quotation Request

Brand	TRICONEX
Model Number	3607E
Module Description	Digital Output Module
Type	TMR
Weight	2.82kg
Dimension	2.2x40.6x39.9cm

Product Categories

Brands
- ABB
- BENTLY NEVADA
- HONEYWELL
- EMERSON
- ALLEN BRADLEY
- YOKOGAWA
- GENERAL ELECTRIC
- TRICONEX
- ICS TRIPLEX
- HIMA
- BACHMANN
- SIEMENS
- PROSOFT
- SCHNEIDER
- FOXBORO
- OTHERS

New Products

Product Details

About us

Our Business Scope

l Control Systems(DCS，PLC)

l Drives(Frequency Inverter and Servo)

l HMI and Display Panels

l Panel Controllers

l Power Supplies

l Motors

Company Services

l Professional Sales Team

l 24/7 Online service

l Full 12-month warranty

l Over millions spares inventory

l Parts delivered worldwide

Want to know more about

Pls contact Miya

Whatsapp：+86-18020776792

E-mail：sales@amikon.cn

Overview

The Triconex 3607E is a 16-point, 48 VDC Triple Modular Redundant (TMR) Digital Output Module. Manufactured by Schneider Electric, it is specifically designed for critical safety instrumented systems and turbomachinery control in high-risk industries like oil, gas, and power generation.

Product specifications

Nominal Voltage	48 VDC
Output Signals	16, non-commoned
Voltage Range	44-80 VDC
Voltage D rop	< 3V, typical
Frequency Range	n/a
Current Ratings, Maximum	1A per point 5A surge/10 ms
Load Leakage	2 mA maximum
Chassis Leakage	n/a
Fuses (on Field Termination)	1 per output, 1.25A fast-acting
Point Isolation	1500 VDC

TMR Digital Output Modules

A TMR digital output (DO) module receives output signals from the main processors on each of three channels. Each set of three signals is then voted by special quadruplicated output circuitry on the module. The circuitry produces one voted output signal and passes it to the field termination. The quadruplicated voter circuitry provides multiple redundancy for all critical signal paths, guaranteeing safety and maximum availability.

Each TMR digital output module has a voltage-loopback circuit which verifies the operation of each output switch independently of the presence of a load and determines whether latent faults exist. Failure of the detected field voltage to match the commanded state of the output point activates the LOAD/FUSE alarm indicator.

In addition, ongoing diagnostics are performed on each channel and circuit of a TMR digital output module. Failure of any diagnostic on any channel activates the Fault indicator, which in turn activates the chassis alarm signal. The Fault indicator merely indicates a channel fault, not a module failure. The module is guaranteed to operate properly in the presence of a single fault and may continue to operate properly with certain kinds of multiple faults.

All TMR digital output modules support hot-spare capability, and require a separate external termination panel (ETP) with a cable interface to the Tricon backplane. Each module is mechanically keyed to prevent improper installation in a configured chassis.

Digital outputs are designed to source the current to field devices, so field power must be wired to each output point on the field termination.

FAQ

Q	How does the TRICONEX 3607E Digital Output Module achieve deterministic output integrity while supporting safety-critical process automation architectures?
A	The TRICONEX 3607E utilizes a Triple Modular Redundant (TMR) architecture with continuous diagnostics and output voting mechanisms, ensuring highly reliable digital output performance and maximum fault tolerance in mission-critical industrial applications.
Q	Why is the TRICONEX 3607E particularly suitable for high-availability Safety Instrumented Systems (SIS) that demand uninterrupted operational continuity?
A	The TRICONEX 3607E is engineered to provide exceptional system availability through redundant hardware design, automatic fault detection, and online module replacement capabilities, minimizing process interruptions and maintaining safe operation.
Q	What diagnostic intelligence does the TRICONEX 3607E incorporate to proactively identify output-channel anomalies and preserve system integrity?
A	The TRICONEX 3607E performs continuous self-diagnostics, monitors output circuitry in real time, detects field faults and internal failures, and communicates diagnostic information to the controller for rapid maintenance and troubleshooting.
Q	Which electrical characteristics of the TRICONEX 3607E contribute to dependable field-device actuation across demanding industrial environments?
A	The TRICONEX 3607E provides isolated digital outputs with industrial-grade electrical protection, robust output drive capability, and reliable switching performance, making it well suited for controlling solenoids, relays, valves, and other field actuators.
Q	How does the TRICONEX 3607E simplify lifecycle maintenance while preserving the integrity of a running Tricon safety system?
A	The TRICONEX 3607E supports online maintenance features, including hot replacement, comprehensive diagnostic reporting, and seamless integration with the Tricon controller, allowing maintenance activities to be performed with minimal disruption to plant operations.
