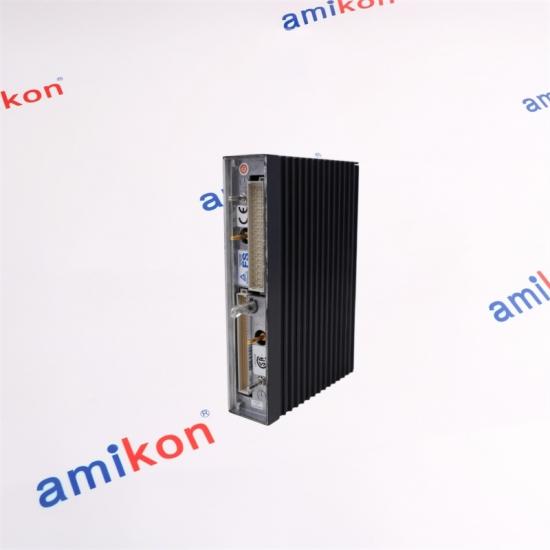

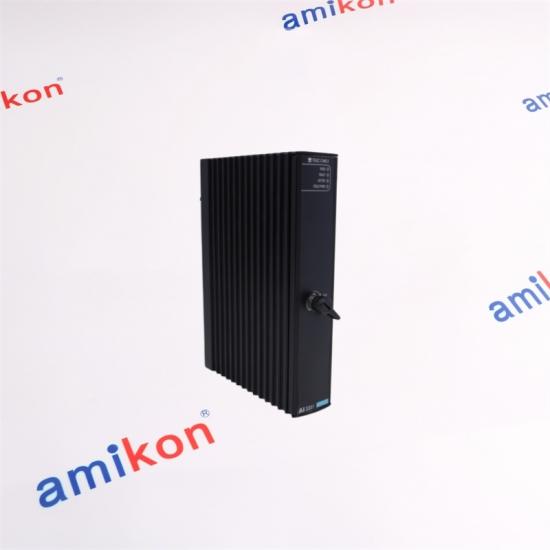

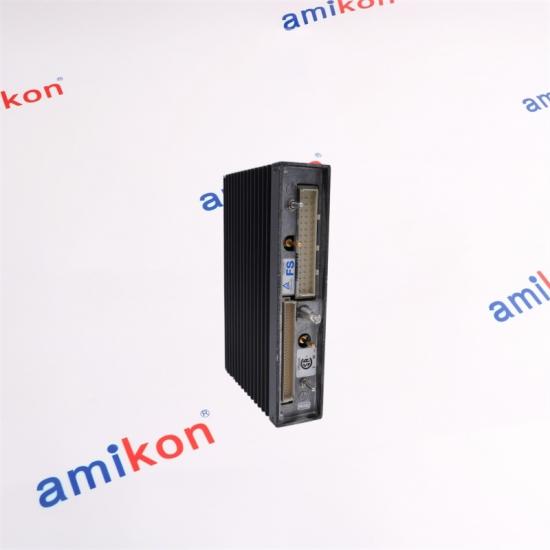

TRICONEX AI 3351 Analog Input Module

Want to know more about

Pls contact Miya

  Whatsapp：+86-18020776792

  E-mail：sales@amikon.cn 

Analog Input Module

The Analog Input (AI) Module has three independent input channels. Each input channel receives variable voltage signals from each point, converts them to digital values, and transmits the values to the three MPs on demand. One value is then selected using a mid-value selection algorithm to ensure correct data for every scan. Sensing of each input point is performed in a manner that prevents a single failure on one channel from affecting another channel.

The AI Module sustains complete, ongoing diagnostics for each channel. If the diagnostics detect a failure on any channel, the module’s Fault indicator is activated, which in turn activates the system alarm. The Fault indicator points to a channel fault, not a complete module failure. The AI Module is guaranteed to operate properly in the presence of a single fault and may continue to operate properly with multiple faults.

The AI Module supports hot sparing for online replacement of a faulty module or continuous back-up to an active module. The AI Module is mechanically keyed to prevent improper installation in a configured baseplate.

AI 3351 Specifications

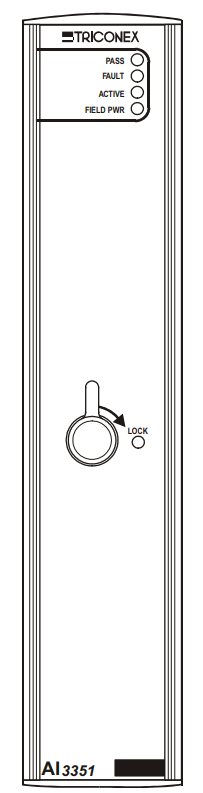

Model 3351 Analog Input Module - Front Panel

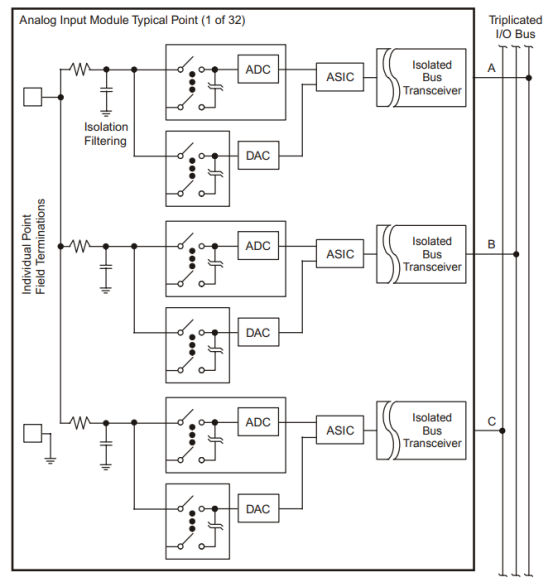

Model 3351 Analog Input Module Simplified Schematic

FAQ

Q1: How does the TRICONEX AI3351 ensure high-integrity analog signal acquisition while maintaining diagnostic coverage in safety-critical control systems?
A: The TRICONEX AI3351 is engineered to accurately acquire 4–20 mA analog input signals while employing continuous Force-to-Value Diagnostics (FVD). Combined with rapid scan times and high-resolution conversion, it provides dependable data integrity for Safety Instrumented Systems (SIS).

Q2: Why is the TRICONEX AI3351 particularly well suited for demanding process industries requiring continuous analog input validation?
A: The TRICONEX AI3351 supports a specified operational current range of 2–22 mA DC with a 12-bit resolution and an absolute accuracy of 0.15% of full scale. These characteristics enable precise process monitoring in industries where measurement accuracy and functional safety are essential.

Q3: What electrical protection and isolation capabilities distinguish the TRICONEX AI3351 in mission-critical industrial automation environments?
A: The TRICONEX AI3351 features robust electrical protection, including 500 V DC minimum isolation between functional earth and protective earth and 800 V DC minimum isolation between functional earth and logic circuits. These safeguards enhance system reliability by minimizing the effects of electrical interference and fault propagation.

Q4: How does the TRICONEX AI3351 optimize diagnostic performance without compromising analog input response speed?
A: The TRICONEX AI3351 combines Force-to-Value Diagnostic (FVD) technology with an analog scan time of less than 1 ms for all 32 input points. This architecture enables rapid fault detection while maintaining fast and accurate analog signal acquisition for real-time process control.

Q5: Which engineering factors should be evaluated before integrating the TRICONEX AI3351 into a Tricon safety architecture?
A: When implementing the TRICONEX AI3351, engineers should verify input current specifications, source and input impedance requirements, field device compatibility, isolation ratings, and controller configuration. Proper system integration ensures optimal measurement accuracy, diagnostic effectiveness, and long-term operational reliability.
