TRICONEX DO 3401 Digital Output Module

Overview

The DO3401 is a 16-channel Digital Output module designed for the Triconex Trident Safety Instrumented System (SIS). It supports a 24VDC operating range and is frequently used in high-integrity applications like emergency shutdown and fire safety.

Model 3401 Digital Output Module Specifications

Model 3401 Digital Output Module

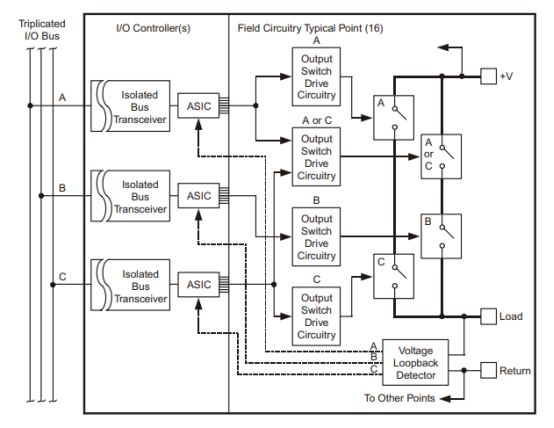

Model 3401 Digital Output Module Simplified Schematic

FAQ

Q1: How does the TRICONEX DO3401 ensure deterministic digital output control for safety-critical process automation applications?
A1: The TRICONEX DO3401 features 16 commoned digital output points with a nominal output voltage of 24 VDC, providing reliable and deterministic signal switching for high-integrity Safety Instrumented Systems (SIS).

Q2: What advanced electrical protection mechanisms distinguish the TRICONEX DO3401 in demanding industrial environments?
A2: The TRICONEX DO3401 incorporates self-limiting output current, reverse input voltage protection, field power loss detection, short-circuit diagnostics, and robust electrical isolation, enhancing both operational safety and module reliability.

Q3: Why is the TRICONEX DO3401 particularly well-suited for high-availability control systems requiring comprehensive diagnostics?
A3: The TRICONEX DO3401 provides continuous output monitoring, loop-back verification, and diagnostic fault detection with a loop-back scan time of less than 1 ms for all 16 channels, enabling rapid fault identification and minimizing system downtime.

Q4: Which performance characteristics enable the TRICONEX DO3401 to maintain precise and dependable output operation under varying load conditions?
A4: The TRICONEX DO3401 supports an operational voltage range of 15–30 VDC, maintains an on-state voltage drop of less than 1 VDC at 1.5 A, and offers self-limiting switching and carry current capabilities to ensure stable output performance.

Q5: How does the TRICONEX DO3401 contribute to system integrity and long-term reliability within Triple Modular Redundant (TMR) safety architectures?
A5: The TRICONEX DO3401 combines high-speed diagnostics, functional isolation up to 800 VDC (logic), comprehensive field alarm reporting, and dependable digital output control to improve fault tolerance, simplify maintenance, and maximize the availability of Triconex safety systems.
