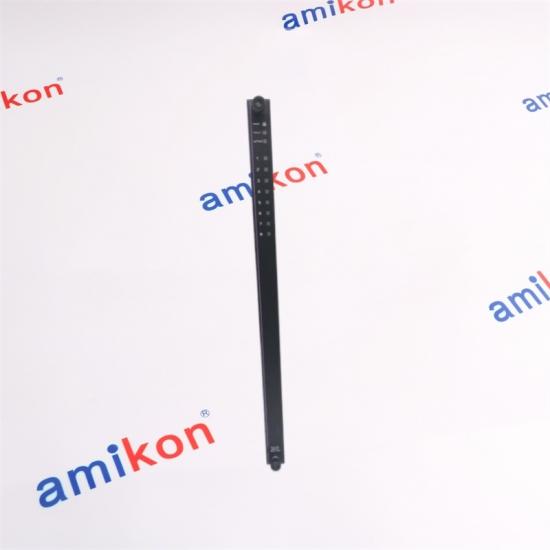

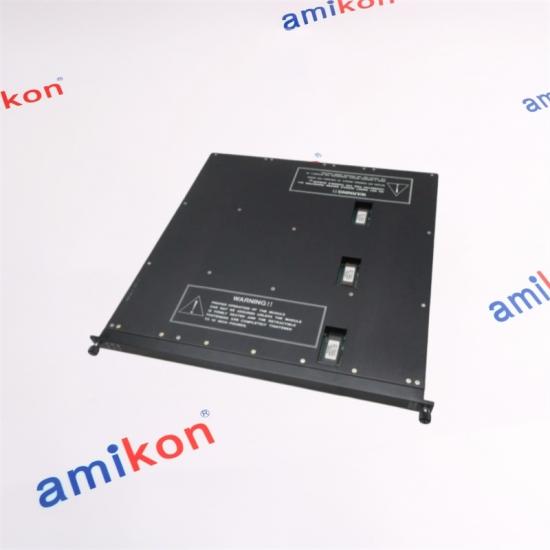

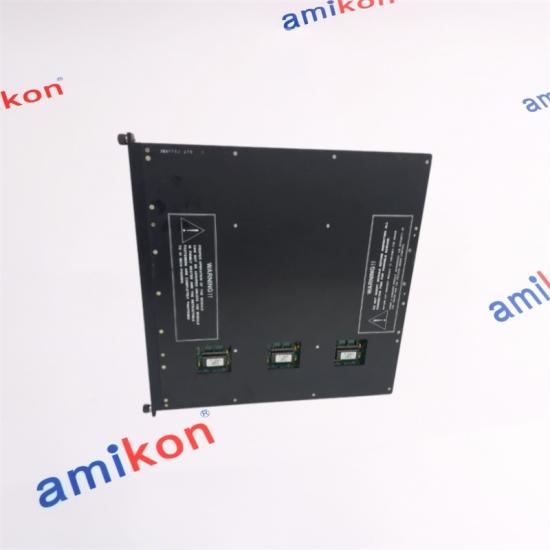

TRICONEX 3510 Pulse Input Module

Pulse Input Modules provide eight very sensitive, high-frequency inputs, which are used with non-amplified magnetic speed sensors common on rotating equipment such as turbines or compressors. The module senses voltage transitions from magnetic transducer input devices. The transitions are accumulated during a selected window of time (rate measurement), and the resulting count is used to generate a frequency or RPM which is transmitted to the Main Processors. The pulse count is measured to 1 microsecond resolution.

The type of speed sensor typically used with the Pulse Input Module consists of an inductive coil and rotating teeth. The sensor is physically close to the teeth of a gear on the rotating shaft. As the shaft rotates and the teeth move past the sensor, the resulting change in the magnetic field causes a sinusoidal signal to be induced in the sensor. The magnitude of the output voltage depends on how fast the teeth pass the sensor, the distance between the sensor and the teeth, and the construction of the sensor. A typical gear has 30 to 120 teeth spaced at equal distances around its perimeter. The output frequency is proportional to the rotational speed of the shaft and the number of teeth.

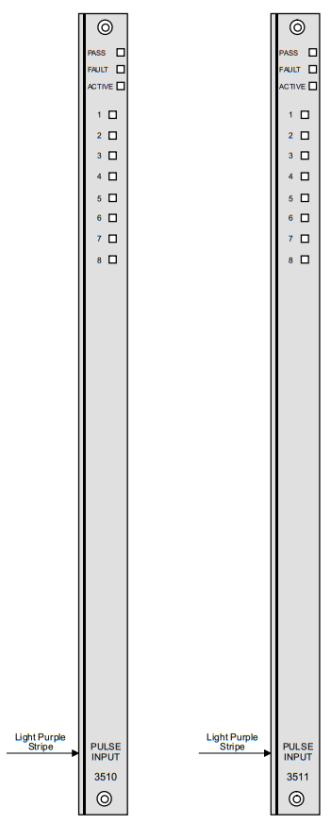

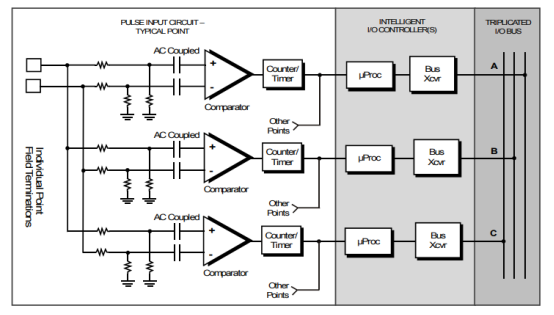

Pulse Input Modules have three isolated input channels. Each input channel independently processes all data input to the module and passes the data to the Main Processors, where it is voted just prior to processing to ensure the highest integrity.

Each module provides complete ongoing diagnostics on each channel. Failure of any diagnostic on any channel activates the module’s Fault indicator, which in turn activates the chassis alarm signal. The Fault indicator points to a channel fault, not a module failure. The module is guaranteed to operate properly in the presence of a single fault and may continue to operate properly with certain kinds of multiple faults.

Pulse Input Modules include the hot-spare feature and require a separate field termination (a cable interface to a remotely located External Termination Panel). Each Pulse Input Module is mechanically keyed to prevent improper installation in a configured chassis.

Feature

Specification

Number of input signals

8, non-commoned

Input frequency range

20 Hz to 20,000 Hz

Minimum input change

0.5% of full scale

Input change sample period

1 scan or 210 ms, whichever is greater

Minimum period of mis-compares

Minimum period of mis-compares

Status indicator: Module status

Pass, Fault, Active

Logic power

< 20 watts

Update rate

50 ms, typical

Common mode range

-100V to +100V peak-to-peak
