TRICONEX SAFETY SYSTEM COMPONENT

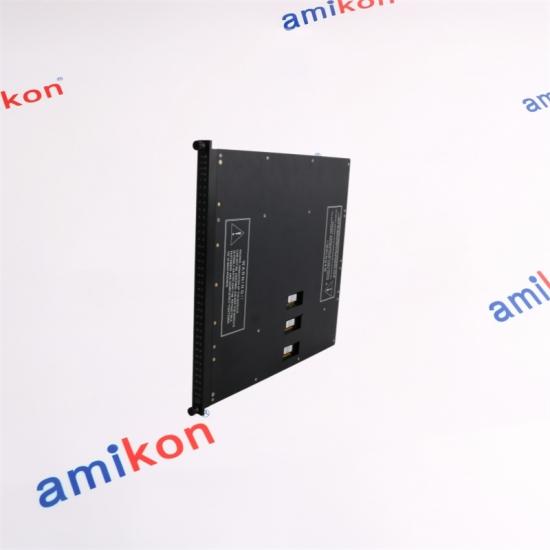

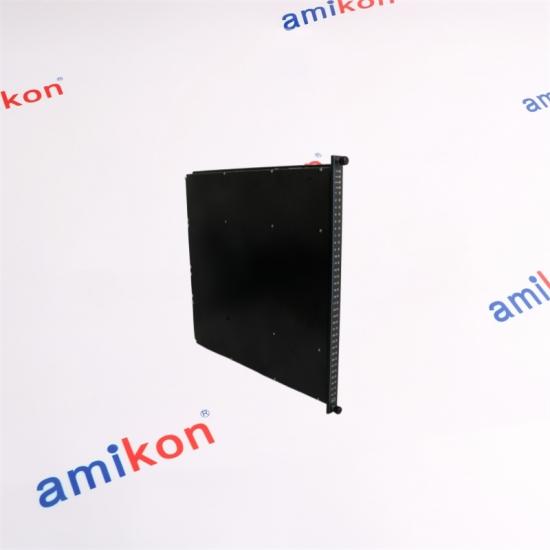

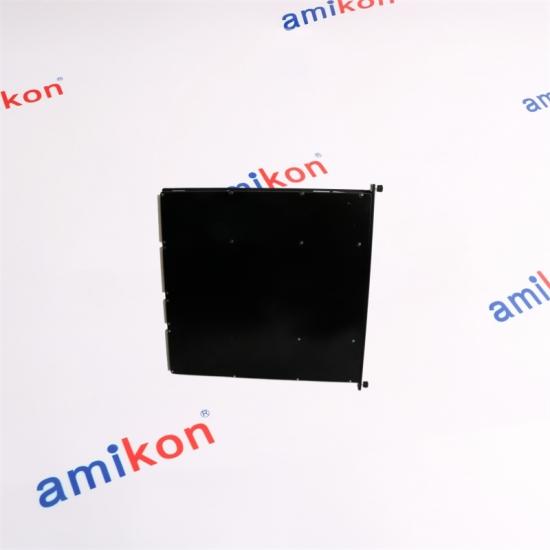

4609

Advanced Communication Module for I/A Series Integration

The 4609 ACM connects a Tricon controller to a Foxboro I/A Series environment, where it appears as a safety node on the Nodebus. It exchanges aliased process values, alarms, diagnostics and time data while also providing a separate NET 2 path for TriStation and TSAA communication.

I/A SERIES ACM

10 Mbps NETWORK

< 20 W LOAD

Technical Profile

I/A Series Nodebus

A 15-pin AUI connection carries Nodebus data to the DNBI, while the 9-pin RS-423 link carries Nodebus control at 2400 baud.

NET 2 Host Path

A BNC port for RG-58 50-ohm cable supports TriStation, TSAA and host applications on a separate 10 Mbps network connection.

Supervision

PASS, FAULT and ACTIVE show module state; ONLINE and SBRDY show Nodebus status; TX and RX indicators show port activity.

Parameter	4609 Value
BNC / 15-pin communication speed	10 megabits per second
9-pin Nodebus control speed	2400 baud
Port isolation	500 VDC for network and reserved serial ports
Logic power	Less than 20 watts
System compatibility	Tricon v10.x or earlier systems

Request a Quote for 4609

Send the required quantity, delivery destination and installed-system details for a focused response.

Miya Zheng
Sales Manager

EMAIL QUOTE

SYSTEM RELATIONSHIP

4609 ACM System Role and Boundaries

Tricon Side	Collects aliased process values, alarms and diagnostics from the controller.	Advantage: keeps safety-controller data available to plant operations without moving the safety logic into the DCS.
ACM 4609	Maps the controller into the I/A Series environment as a safety node and propagates alarms and diagnostic values.	Advantage: full-rate Nodebus exchange, I/A time synchronization, write protection and hot-spare communication capability.
Host Side	NET 2 serves TriStation, TSAA and external host applications through a separate BNC Ethernet connection.	Boundary: 4609 is intended for Tricon v10.x or earlier and legacy I/A Series Nodebus integration; it is not the same architecture as a modern TCM.

Amikon's Large Stock Is the Core of Our Supply

Multilingual Support
Customer coordination and structured order tracking.

400,000+ Industrial Products
PLC, HMI, drives, servo, CNC, IPC and PG coverage.

Stock-Driven Response
Coverage for current and mature equipment.

Our industrial product range serves customers worldwide. Market insight and strategic purchasing support rapid availability checks. If an item is not on hand, we search our preferred supplier network. Fast coordination helps reduce production interruption, with no additional handling or hidden charges.

Talk With Miya Zheng

Include the exact model, existing chassis or controller version, quantity and destination.

Sales Manager
Miya Zheng

EMAIL
sales@amikon.cn

WHATSAPP
+86 18020776792

Return support: Contact us within seven days after receipt if a problem occurs. Keep the item in its original condition and state the return reason. A return or replacement can be arranged after the item arrives and is checked. Return freight is paid by the buyer.

4609 Buyer FAQ

1. Is 4609 intended for standard Ethernet-only integration? No. Its primary role is Tricon-to-Foxboro I/A Series Nodebus integration, with a separate BNC NET 2 path for TriStation and TSAA.	2. Which Tricon versions support 4609? The stated compatibility is Tricon v10.x or earlier. Confirm the controller revision before ordering.
3. Does 4609 support communication continuity? Yes. The ACM architecture supports a hot-spare arrangement for uninterrupted I/A Series Nodebus communication when configured correctly.	4. What cabling must be checked for 4609? Verify the 15-pin AUI path to the DNBI, the 9-pin RS-423 control connection and the RG-58 50-ohm BNC network path used by NET 2.
5. What reduces replacement risk for 4609? Match the exact model, Tricon system version, DNBI/Nodebus architecture, connector types, node addressing and spare-pair arrangement before removing the installed ACM.
