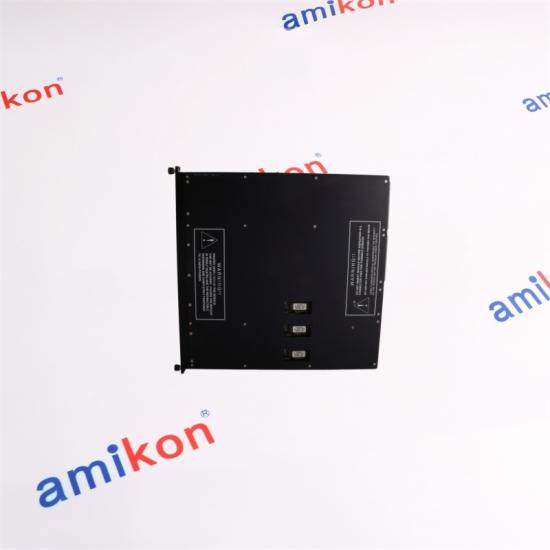

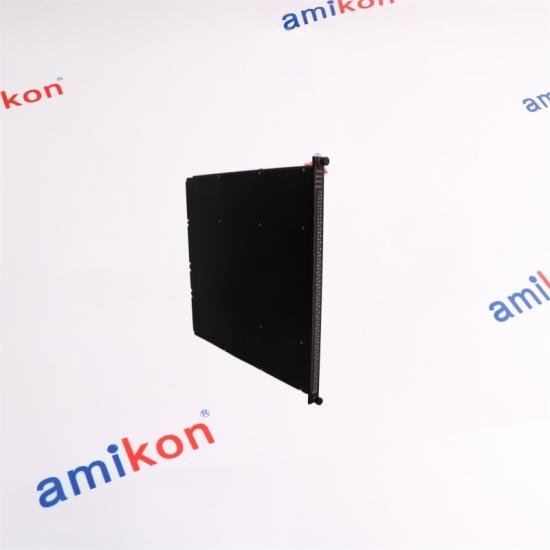

TRICONEX 3564 64-Point Single Digital Input Module

Calculate shipping

Quotation Request

SINGLE DIGITAL INPUT

TRICONEX
3564

64-Point · 24V DC · Commoned

Self-test circuitry detects stuck-On and stuck-Off conditions in less than half a second.

64 INPUT FIELD

15–30V DC
input range

<2 ms
input delay

1,500V DC
point isolation
