TRICONEX SAFETY SYSTEM I/O

3603B

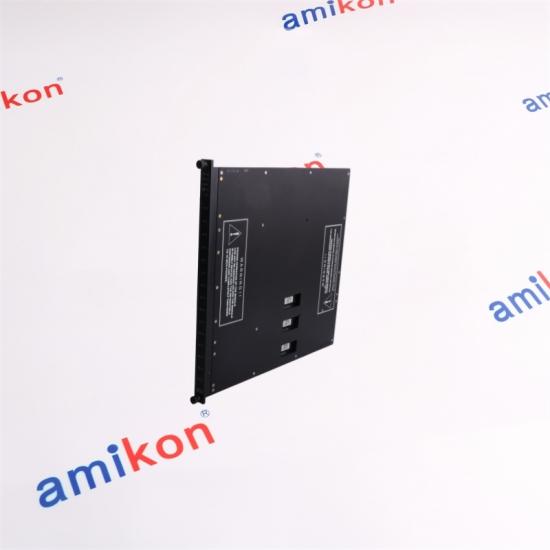

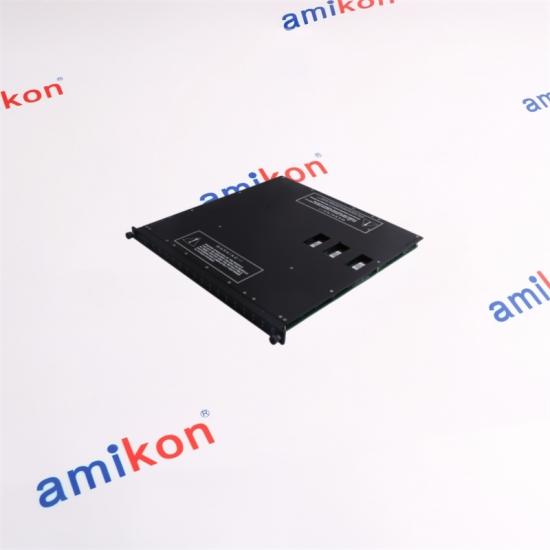

16-Point TMR Digital Output Module, 120 VDC

Model 3603B is a Triple Modular Redundant digital output module for 120 VDC loads. Its 16 outputs are non-commoned and optically isolated, with independent output voting diagnostics, point status indication and field load/fuse alarms. The design targets high-integrity control of discrete loads while maintaining channel-level fault tolerance.

16 NON-COMMONED

99-155 VDC

0.8 A PER POINT

Technical Profile

120

VDC Output Class

Operating range 99-155 VDC with 16 separately wired output signals.

TMR

Triplicated Output Path

Three channels vote the output command and apply continuous output diagnostics.

1 kV

Point Isolation

Minimum point isolation with per-point status and LOAD/FUSE field alarm.

Parameter	3603B Value
Maximum current	0.8 A per point; 4 A surge for 10 ms
Leakage current	2 mA maximum
Field protection	One 1 A fast-acting fuse per output on the termination assembly
Diagnostic interval	Every 100 ms plus one scan; diagnostic pulse up to 2 ms
Logic load	Less than 10 watts

Request a Quote for 3603B

Send the required quantity, delivery destination and installed-system details for a focused response.

Miya Zheng
Sales Manager

EMAIL QUOTE

SYSTEM RELATIONSHIP

3603B Within the 120 VDC TMR Output Family

Model	Output Arrangement	Compatibility Impact
3603B	16 non-commoned 120 VDC outputs	Requires power at every point through the matching non-commoned termination arrangement.
3603E / 3603T	16 commoned 120 VDC outputs	Different field-power grouping and termination; must not be mixed with 3603B in one logical slot.
3604E	16 non-commoned 24 VDC outputs	Similar point arrangement but a different voltage class and field termination.

Amikon's Large Stock Is the Core of Our Supply

Multilingual Support
Customer coordination and structured order tracking.

400,000+ Industrial Products
PLC, HMI, drives, servo, CNC, IPC and PG coverage.

Stock-Driven Response
Coverage for current and mature equipment.

Our industrial product range serves customers worldwide. Market insight and strategic purchasing support rapid availability checks. If an item is not on hand, we search our preferred supplier network. Fast coordination helps reduce production interruption, with no additional handling or hidden charges.

Talk With Miya Zheng

Include the exact model, existing chassis or controller version, quantity and destination.

Sales Manager
Miya Zheng

EMAIL
sales@amikon.cn

WHATSAPP
+86 18020776792

Return support: Contact us within seven days after receipt if a problem occurs. Keep the item in its original condition and state the return reason. A return or replacement can be arranged after the item arrives and is checked. Return freight is paid by the buyer.

3603B Buyer FAQ

1. Can 3603B share a logical slot with 3603E or 3603T? No. These variants must not be mixed in the same logical slot.	2. Is 3603B a commoned output module? No. Its 16 outputs are non-commoned, so termination and point power differ from commoned 3603E/3603T arrangements.
3. What load current can 3603B switch? The maximum rating is 0.8 A per point, with a 4 A surge allowance for 10 ms.	4. Why can 3603B produce a short diagnostic pulse? Output voting diagnostics exercise the switch path; the pulse can reach 2 ms unless diagnostic pulsing is disabled through the supported function.
5. What should be verified before replacing 3603B? Confirm the 120 VDC load class, non-commoned wiring, termination assembly, per-point fuse arrangement, logical-slot partner and load sensitivity to diagnostic pulses.
