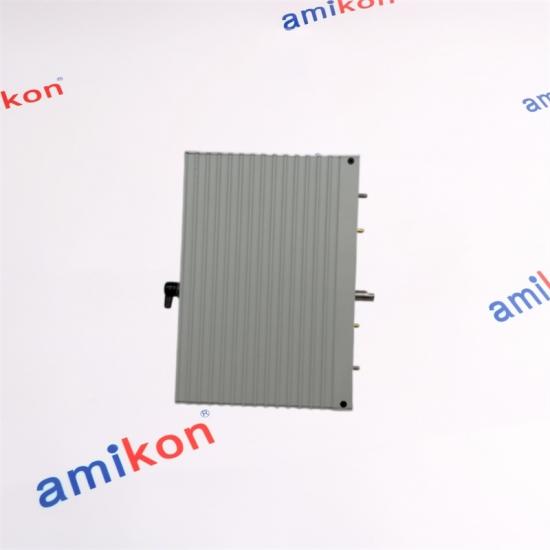

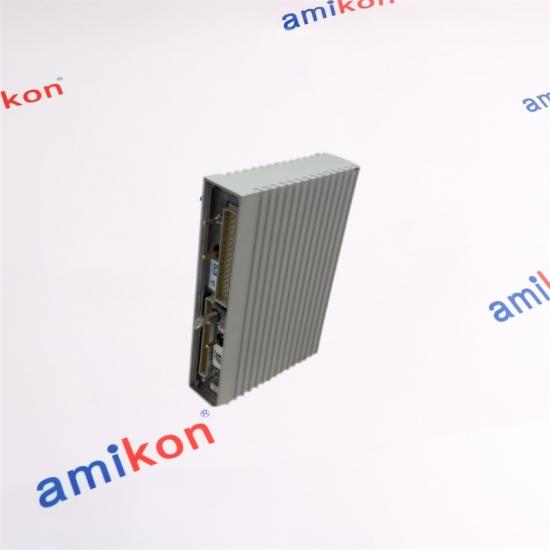

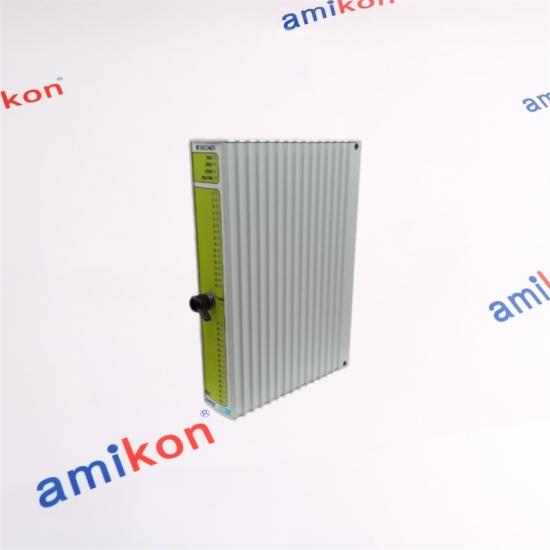

TRICONEX 3301S2 32-point Digital Input Module

The Triconex 3301S2 is a 32-point digital input module for the Tri-GP platform. The module handles discrete field signals at a nominal 24 VDC input level and uses three independent processing paths for the input data. The design separates field-side signal handling from the system logic path through isolated bus interfaces.

For maintenance and replacement planning, the important point is not simply the model number. The complete installation context includes the Tri-GP platform, the 24 VDC field signal arrangement, the commoned input configuration and the corresponding baseplate/interface arrangement.

Three independent processing paths handle the input data, supporting the fault-tolerant architecture used by Triconex systems.

The module is designed around a nominal 24 VDC discrete input arrangement with 32 commoned input points.

The architecture provides ongoing diagnostics for the module channels and supports fault indication when abnormal channel conditions are detected.

Its 32-point configuration is suited to installations requiring a relatively high density of discrete status and interlock signals.

3301S2 is appropriate when the required point type is a 24 VDC digital input and the target platform is the Tri-GP architecture associated with the S2 family.

Yes, the 3301S2 is specified as a 32-point commoned digital input module with a nominal 24 VDC input. The key replacement check is that the existing installation uses the corresponding Tri-GP architecture and matching field/interface arrangement rather than only matching the 3301S2 part number.

Verify the installed platform, module position, field voltage, 32-point commoned input arrangement, baseplate/interface configuration and the required system configuration. This is particularly important when replacing hardware from an older installation where visually similar modules may perform different I/O functions.

Both belong to the Tri-GP general-purpose I/O family, but they are not interchangeable simply because both are digital-input modules. The 3301S2 is the standard 32-point 24 VDC digital input module, while the 3311S2 is identified as the high-resolution 24 VDC digital input variant. The existing project requirement should determine which model is appropriate.

Not based on voltage alone. A replacement must also match the I/O function, point configuration, platform and interface arrangement. For example, an analog-input module or a high-resolution digital-input variant serves a different role even when its nominal field voltage may appear similar.

For a faster quotation, provide the exact Part Number, Quantity, Destination, Required Date and Machine/System. If the module is being used as a replacement, including the existing platform and field voltage arrangement can also help confirm the intended configuration.

A precise part-number check is recommended before purchase when the existing installation has been modified or contains mixed-generation hardware.
