SIEMENS INDUSTRIAL ETHERNET

6GK5205-3BB00-2AB2 / SCALANCE XB205-3

PRODUCT SYSTEM AMIKON CONTACT FAQ MODELS

MANAGED INDUSTRIAL ETHERNET

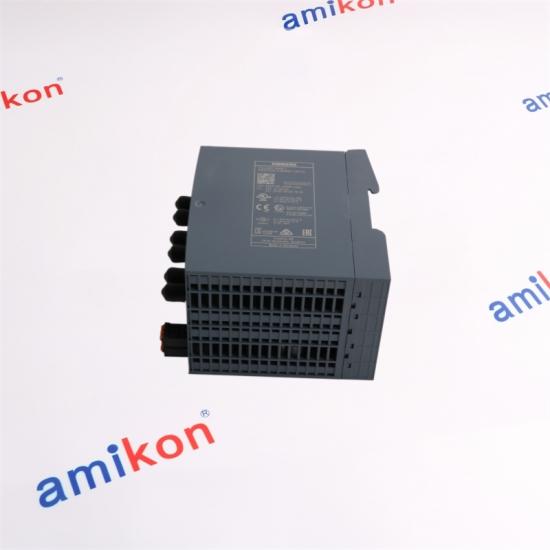

SCALANCE XB205-3

6GK5205-3BB00-2AB2

Managed Layer 2 Industrial Ethernet switching with copper and multimode fiber connectivity

The SCALANCE XB205-3 combines five 10/100 Mbps RJ45 ports with three 100 Mbps multimode fiber ST ports, providing a compact managed network node for industrial Ethernet architectures.

RJ45

FO ST

SPEED

10/100

MODE

NETWORK TOPOLOGY NODE

8-Port Managed Switch

Copper + multimode fiber architecture

01 / SWITCHING ARCHITECTURE

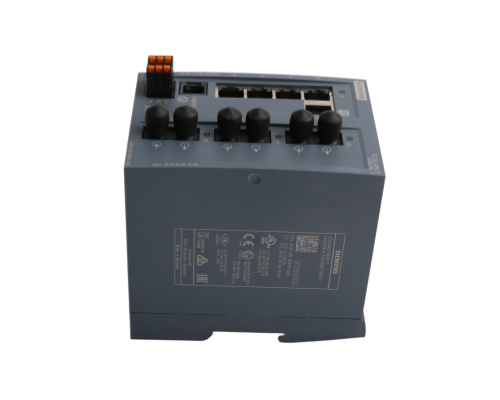

Industrial Ethernet Connectivity in a Compact Form

Copper Network Layer Five electrical Ethernet ports are provided as RJ45 interfaces. Each supports 10 Mbit/s or 100 Mbit/s operation, giving the switch a practical copper connection layer for industrial terminal equipment and network components. 5 × RJ45 • 10/100 Mbps		Multimode Fiber Layer Three optical ports use ST connections for 100 Mbps multimode fiber. This makes the 6GK5205-3BB00-2AB2 particularly distinct from related XB205-3 versions using SC connectors or single-mode optical connections. 3 × ST • 100 Mbps • Multimode fiber
Managed Layer 2 Operation Management functions include Web Based Management, CLI, STEP 7 configuration, RMON, port mirroring, CoS, VLAN by port, SNMP v1/v2/v3, DHCP client and LLDP.		Industrial Diagnostics The switch provides port diagnostics, packet-size and packet-type statistics, error statistics, SysLog and loopback diagnostics. PROFINET IO diagnostics and topology support through LLDP are also included.
Redundancy Architecture Supported redundancy mechanisms include ring redundancy, HRP, MRP, STP, RSTP and RSTP+. MRP can operate with a redundancy manager, while HRP supports redundancy-manager and standby configurations.		Security-Oriented Functions The documented feature set includes MAC-based and port/MAC-based ACLs, IEEE 802.1X with RADIUS, broadcast/multicast/unicast limiting, broadcast blocking, SSH and SSL.

6GK5205-3BB00-2AB2 Technical Matrix

Product type	SCALANCE XB205-3 managed Layer 2 IE switch
Transmission rate	10 Mbit/s / 100 Mbit/s
Electrical ports	5 × RJ45
Optical ports	3 × 100 Mbps ST, multimode
Console connection	1 × RJ11
Management connection	1 × RJ45
Supply	24 VDC nominal; 19.2–28.8 VDC range
Redundant power	Supported; 6-pole terminal block
Maximum current	0.3 A
Power loss	7.2 W rated
Operating temperature	0 °C to +60 °C
Storage / transport	−40 °C to +70 °C
Relative humidity	Maximum 95% at 25 °C, non-condensing
Protection rating	IP20
Dimensions	80 × 117 × 109 mm
Net weight	0.35 kg
Mounting	35 mm top-hat DIN rail

02 / FAMILY POSITION

SCALANCE XB-200 Family Relationship

SCALANCE XB-200

Managed Layer 2 Industrial Ethernet switches covering different port counts and copper/fiber interface arrangements.

→

XB205-3

5 × RJ45
3 × 100 Mbps ST
Multimode fiber

→

6GK5205-3BB00-2AB2

PROFINET factory configuration with the ST multimode fiber interface arrangement.

Interface Variant Comparison

Variant	Fiber connector	Fiber type	Factory network mode
6GK5205-3BB00-2AB2	ST	Multimode	PROFINET
6GK5205-3BD00-2AB2	SC	Multimode	PROFINET
6GK5205-3BF00-2AB2	SC	Single-mode	PROFINET
6GK5205-3BB00-2TB2	ST	Multimode	EtherNet/IP

For replacement work, the connector type, fiber mode and factory network configuration should all be checked against the existing installation. The PROFINET and EtherNet/IP versions of the family are differentiated by their factory settings, while the physical interface arrangement also changes between ST, SC and single-mode variants.

The 6GK5205-3BB00-2AB2 is the ST multimode / PROFINET configuration of the SCALANCE XB205-3 family.

AMIKON INDUSTRIAL AUTOMATION

CONNECT • CONTROL • SUPPORT

Industrial Automation
Parts, Ready When Needed.

20+ YEARS OF INDUSTRIAL AUTOMATION SUPPLY

We have a wide range of brands and products for various industries, we provide services to tens of thousands of customers around the world.

03 / DIRECT CONTACT

Talk to AMIKON About Your Requirement

SALES MANAGER

Miya Zheng

Support for part matching, availability, quotation and order coordination.

CONTACT

sales@amikon.cn

WhatsApp: +86 180 2077 6792

INQUIRY DETAILS

Part Number
Quantity
Destination
Required Date
Machine / System

Delivery: 3–5 Days | Warranty: 12 Months | Payment: T/T | Shipping: E-packing / FedEx / EMS / TNT / DHL / UPS

Return & Replacement

Please contact us within 7 days if you have any question after you receiving the items. The returned items has to be in its original condition, with a specific reason for the return. We will issue a return or replacement for your order after we received the returns. The buyer is responsible for all the shipping cost incurred.

04 / BUYER QUESTIONS

6GK5205-3BB00-2AB2 Purchase & Application FAQ

Can 6GK5205-3BB00-2AB2 be used when the existing network uses ST multimode fiber?

Yes. This exact variant has three 100 Mbps ST ports for multimode fiber. This is an important replacement point because other XB205-3 variants use SC connectors or single-mode fiber. The installed fiber connector and fiber type should therefore be checked before ordering.

Is 6GK5205-3BB00-2AB2 the correct variant when a Siemens network is configured for PROFINET?

The 6GK5205-3BB00-2AB2 is the PROFINET factory-setting variant of the SCALANCE XB205-3. The related 6GK5205-3BB00-2TB2 uses the EtherNet/IP factory configuration. For replacement work, the required network mode should be matched with the installed system configuration.

Does 6GK5205-3BB00-2AB2 provide enough fiber connections for a ring topology?

The switch provides three optical ST ports in addition to five RJ45 ports, and the family supports ring redundancy including MRP and HRP. For the specific installation, the selected ring ports and the network topology must correspond to the existing configuration.

What should be checked before replacing 6GK5205-3BB00-2AB2 in an operating cabinet?

Check the complete article number, five RJ45 connections, three ST multimode fiber connections, 24 VDC supply arrangement, redundant power wiring, DIN-rail installation, PROFINET configuration and the active redundancy arrangement. These points are more useful for replacement matching than comparing the housing appearance alone.
