SIMATIC ET 200S / DIGITAL OUTPUT
6ES7132-
4BD32-0AA0 4DO · DC 24 V · 2 A

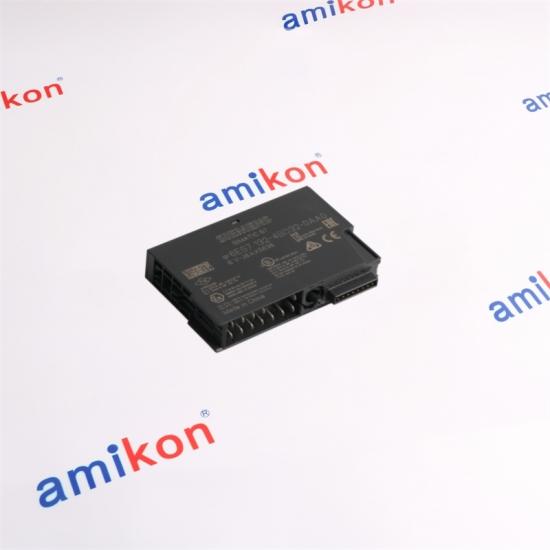

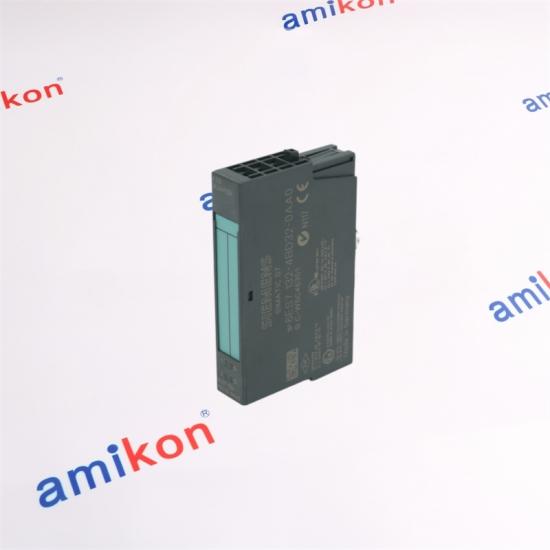

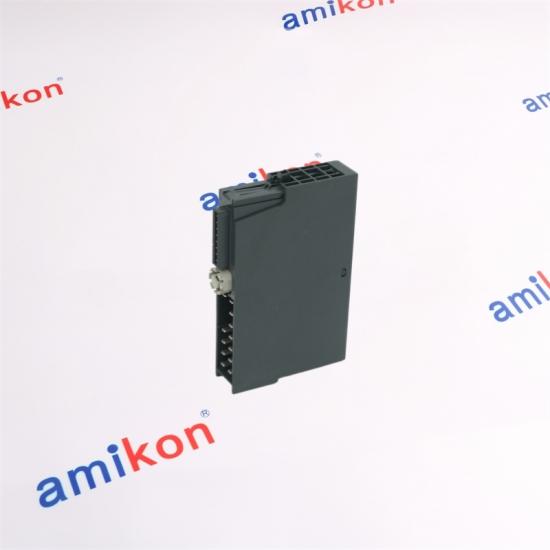

The Siemens 6ES7132-4BD32-0AA0 is a four-channel digital output module for the SIMATIC ET 200S distributed I/O system. The module provides 24 V DC source outputs with a rated output current of 2 A per channel and a maximum total output current of 4 A per module.
PNP / SOURCE SHORT-CIRCUIT PROTECTION GREEN LED
|
OUTPUT MATRIX
4 × Digital Channels
|
|
01 / OUTPUT
4 DO
Four digital transistor outputs.
|
02 / LOAD
24 V DC
Rated load voltage supplied through the power module.
|
03 / CHANNEL
2 A
Rated output current for each channel.
|
04 / MODULE
4 A
Total output current per module.
|
|
05 / OUTPUT TYPE
PNP
Source output / current-sourcing transistor architecture.
|
06 / PROTECTION
Short Circuit
Short-circuit protection is provided for the outputs.
|
07 / STATUS
Green LED
One green status indicator is provided for each digital output channel.
|
08 / DIAGNOSTICS
No
The module does not provide a diagnostics function.
|
|
WIDTH
15 mm
|
HEIGHT
81 mm
|
DEPTH
52 mm
|
WEIGHT
40 g
|
POWER LOSS
1.6 W
|
ADDRESS
1 Byte
|
| CHARACTERISTIC | VALUE | APPLICATION CONTEXT |
| 0 → 1 output delay | Max. 50 μs | Resistive load |
| 1 → 0 output delay | Max. 120 μs | Resistive load |
| Switching frequency | Up to 1,000 Hz | Resistive load |
| Lamp load | 10 W max. | Maximum lamp-load switching capacity |
|
PLC /
CONTROLLER |
→ |
NETWORK / STATION
ET 200S
Distributed I/O station architecture.
|
→ |
ELECTRONIC MODULE
6ES7132
Four-channel digital output module.
|
→ |
24 V DC
FIELD LOADS |
| MODULE | OUTPUT COUNT | CURRENT CLASS | ROLE |
| 6ES7132-4BD32-0AA0 | 4 DO | 2 A / channel | Four-channel higher-current digital output configuration. |
| 6ES7132-4BD02-0AA0 | 4 DO | 0.5 A / channel | Four-channel lower-current output configuration. |
| 6ES7132-4BB31-0AA0 | 2 DO | 2 A / channel | Two-channel configuration where fewer output points are required. |
|
03 / PROCUREMENT CHANNEL
Specify the part.
We handle the supply. For a quotation on 6ES7132-4BD32-0AA0, provide the part number, quantity, destination, required date and machine or system application. For replacement requirements, including the existing ET 200S station arrangement can help clarify the requested configuration.
|
AMIKON SALES
Miya Zheng
Sales Manager
|
|||||||||||
|
01
|
What should be checked before replacing 6ES7132-4BD32-0AA0 with another ET 200S output module?
|
The replacement should be checked against the required number of channels, output current, load voltage, output type, terminal-module arrangement and the electrical characteristics of the connected field loads. Matching only the physical width is not sufficient. |
|
02
|
When is the 2 A rating of 6ES7132-4BD32-0AA0 important in a selection decision?
|
It becomes important when the connected 24 V DC field load requires more current than a lower-current ET 200S digital output can provide. The module has a 2 A rated current per output, with a 4 A total output-current limit for the module. |
|
03
|
Can 6ES7132-4BD32-0AA0 be used for solenoid valves and DC contactors?
|
Yes, the module is intended for 24 V DC field loads and the module documentation specifically describes applications including solenoid valves, DC contactors and indicator lights. The load's current and switching characteristics still need to remain within the specified output limits. |
|
04
|
Does 6ES7132-4BD32-0AA0 provide isolation between its four output channels?
|
No. The four output channels are not electrically isolated from each other. The outputs are electrically isolated from the backplane bus, with an isolation test value of 500 V DC. |
|
05
|
What output behavior should be considered when 6ES7132-4BD32-0AA0 drives inductive loads?
|
The switching frequency depends on the load type. Siemens specifies up to 1,000 Hz for resistive loads, while inductive-load switching is specified at up to 2 Hz under the stated test condition. The output also limits inductive shutdown voltage. |
|
06 / AFTER-SALES
Return &
Replacement A straightforward process for eligible return and replacement requests.
|
01 Please contact us within 7 days if you have any question after you receiving the items.
02 The returned items has to be in its original condition, with a specific reason for the return. We will issue a return or replacement for your order after we received the returns.
03 The buyer is responsible for all the shipping cost incurred.
|
|
