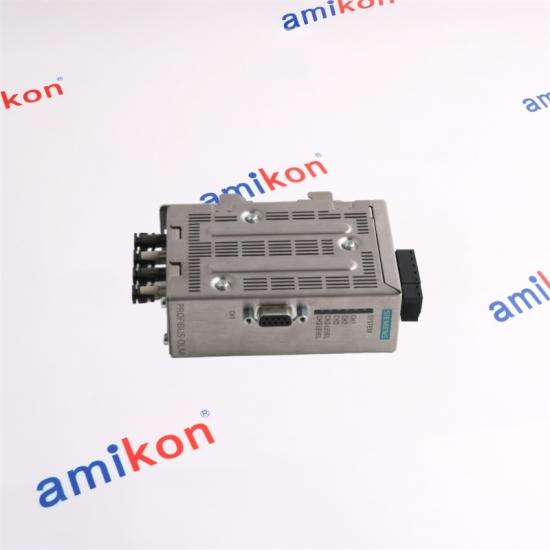

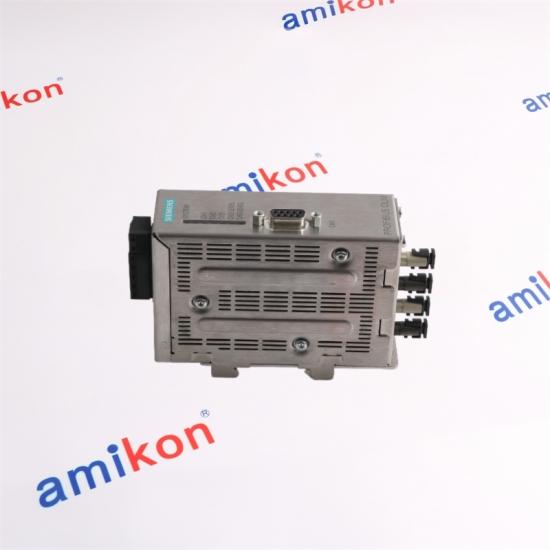

SIEMENS 6GK1503-3CD00 optical link module

Whatsapp:86-18020776792

Email:sales@amikon.cn

    Contact us and get the best price

Function: PROFIBUS OLM/G12-EEC V4.0 optical link module
Electrical Port: 1 × RS-485 (9-pin Sub-D)
Fiber Ports: 2 × glass-fiber channels (4 × BFOC sockets, 890 nm multi-mode)
Line Length: up to 3 km on 50/125 µm or 62.5/125 µm fiber (≤ 3 dB/km)
Data Rate: 9.6 kbit/s … 12 Mbit/s (auto-detect)
Supply Voltage: 18.8 – 28.8 V DC (24 V nominal)
Current Draw: ≤ 0.2 A at 24 V
Operating Temperature: –25 °C … +60 °C
Storage / Transport: –40 °C … +70 °C, 95 % RH non-condensing

Model 6GK1503-3CD00 is a PROFIBUS optical link module that turns any RS-485 segment into a glass-fiber ring or line—no configuration needed.
It extends your network up to 3 km while rejecting EMI, survives –25 °C to +60 °C, and snaps onto standard DIN-rail.
With auto-baud detection and built-in signal contacts for fast fault indication, it keeps your PROFIBUS running cleanly in harsh plants, ships or offshore decks.
