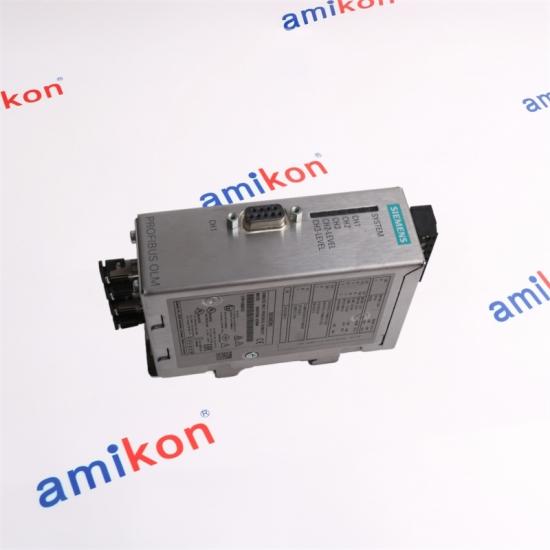

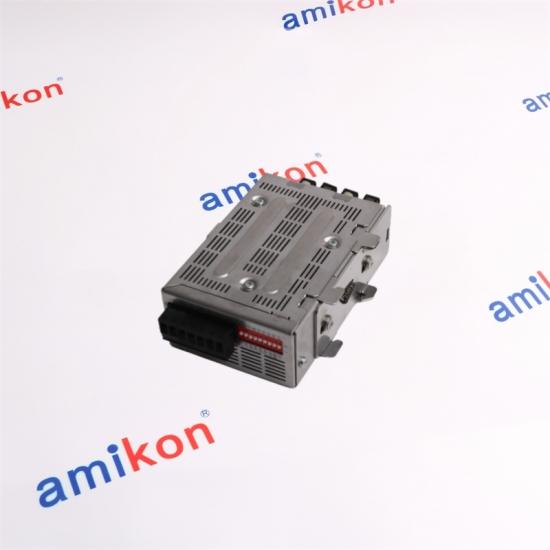

SIEMENS 6GK1503-2CB00 optical link module

Whatsapp:86-18020776792

Email:sales@amikon.cn

    Contact us and get the best price

Function: PROFIBUS OLM/G11 V4.0 optical link module
Electrical Port: 1 × RS-485 (9-pin Sub-D socket)
Fiber Port: 1 × glass/plastic fiber channel (2 × BFOC sockets, 690 nm multi-mode)
Line Length: up to 3 km on 50/125 µm fiber (≤ 3 dB/km)
Data Rate: 9.6 kbit/s … 12 Mbit/s (auto-detect)
Supply Voltage: 18.8 – 28.8 V DC (24 V nominal)
Current Draw: ≤ 0.2 A at 24 V
Operating Temperature: 0 °C … +60 °C
Storage Temperature: –40 °C … +70 °C

Model 6GK1503-2CB00 is a compact PROFIBUS optical link module that converts one electrical RS-485 segment to one fiber pair, giving you 3 km of interference-free reach without any software setup. It snaps onto DIN-rail, needs only 24 V, and uses standard BFOC connectors, so you can add fiber to an existing PROFIBUS line in minutes—perfect for high-noise zones like welding shops or long conveyor runs.

◎ Cost Reduction & Efficiency: High-quality spare parts reduce recurring failures, and our precise matching avoids waste, lowering overall maintenance costs by 30%+.

◎ Rapid Response: A professional team is on standby 24/7, responding to all maintenance needs within 30 minutes.

◎ Always in Stock: We stock a full range of spare parts, including both mainstream and rare items, eliminating the problem of downtime due to lack of parts.

◎ Fast Delivery: Direct shipping from nearby warehouses; standard orders delivered next day, and expedited delivery for urgent needs, reducing downtime by 80%.

◎ High Cost-Effectiveness: Personalized one-on-one service and economies of scale through bulk purchasing ensure both excellent service and competitive pricing.

◎ Quality Assurance: 100% genuine product guarantee, multiple quality checks, and comprehensive warranty service for worry-free use.
