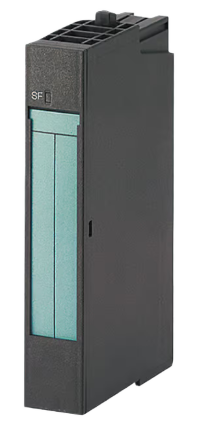

SIEMENS 6ES7134-4MB02-0AB0 2 AI I 2/4WIRE HF electronic module

Calculate shipping

Quotation Request

SIEMENS

6ES7134-4MB02-0AB0

SIMATIC ET 200S

Analog Input Module

INDUSTRIAL AUTOMATION

KEY PARAMETERS

CHANNELS

2 Analog Inputs

U/I

INPUT TYPE

Voltage / Current

SYSTEM

SIMATIC ET 200S

CONTACT

Miya Zheng

sales@amikon.cn

PHONE / WHATSAPP

+86 180 2077 6792

Scan to
contact sales

Product Categories

Brands
- ABB
- BENTLY NEVADA
- HONEYWELL
- EMERSON
- ALLEN BRADLEY
- YOKOGAWA
- GENERAL ELECTRIC
- TRICONEX
- ICS TRIPLEX
- HIMA
- BACHMANN
- SIEMENS
- PROSOFT
- SCHNEIDER
- FOXBORO
- OTHERS

New Products

Product Details

SIEMENS / 6ES7134-4MB02-0AB0

Overview Parameters Application Comparison FAQ Contact

SIMATIC DP · ET 200S

6ES7134-4MB02-0AB0

2 AI I 2/4WIRE HF Analog Electronic Module

A high-feature analog input module for the SIMATIC ET 200S distributed I/O system, designed for current measurement with two analog input channels and support for both two-wire and four-wire measuring transducers.

2 Analog Inputs 15-bit Resolution 15 mm Width High Feature

Channels

2 AI

Width

15 mm

Cycle Time

0.5 ms

Resolution

15 bit

Technical Core

Technical Parameters

6ES7134-4MB02-0AB0

Product Type

SIMATIC DP Electronic Module

System

SIMATIC ET 200S

Analog Inputs

2 current inputs

Input Ranges

±20 mA / 4–20 mA

Resolution

15 bit + sign / 15 bit

Module Cycle Time

0.5 ms

Transducer Support

2-wire / 4-wire

Module Width

15 mm

Isochronous Operation I&M Functions Current Measurement High Feature

Dual Current Inputs

Two analog current channels support ±20 mA and 4–20 mA measurement ranges, allowing the module to process standard industrial current signals.

High-Feature Processing

The module combines high-resolution current measurement with a 0.5 ms module cycle time and support for isochronous operation.

2-Wire / 4-Wire Flexibility

Support for two-wire and four-wire measuring transducers makes the module suitable for different current-signal arrangements within ET 200S installations.

System Context

Where 6ES7134-4MB02-0AB0 Fits

◈

Distributed I/O

The module belongs to the SIMATIC ET 200S distributed I/O architecture and is used for acquiring analog current signals at distributed field locations.

◌

Current-Signal Acquisition

Typical search scenarios include replacement of a failed analog current channel, restoration of a field measurement point, or maintenance of an existing ET 200S station.

△

Downtime Prevention

Loss of an analog input module can interrupt measurement of process variables and may affect control sequences that depend on those values. Matching the exact module helps reduce replacement-related commissioning risk.

Same-Series Selection

How It Compares Within ET 200S Analog Inputs

Module	Input Type	Channels	Resolution	Cycle Time	Best Fit
6ES7134-4MB02-0AB0	Current	2 AI	15 bit + sign / 15 bit	0.5 ms	High-feature current measurement
6ES7134-4GB11-0AB0	Current	2 AI	13 bit + sign / 12 bit	65 ms/channel	Standard current input
6ES7134-4LB02-0AB0	Voltage	2 AI	15 bit + sign / 15 bit	0.5 ms	High-feature voltage measurement

The comparison is intended to make selection easier: the 6ES7134-4MB02-0AB0 is specifically the high-feature current-input variant, while the 6ES7134-4LB02-0AB0 is a high-feature voltage-input variant.

AMIKON

Industrial Automation Parts, Connected Worldwide

AMIKON is an industrial automation parts supplier with business coverage across 167 countries, with established business lines serving Europe, the Americas, Asia-Pacific and the Middle East.

Our mission is to support a more sustainable and efficient global industrial supply chain. With an inventory covering more than one million hard-to-find industrial parts, AMIKON helps system integrators and suppliers reduce unexpected component shortages and extended lead times.

16+ Years of Delivering Control System Parts Worldwide

Shop a broad inventory of rare and hard-to-find automation parts for ABB, Alstom, Bently Nevada, Emerson, GE, Honeywell, Rolls Entronic, Siemens, Triconex, Westinghouse and Woodward control systems.

Technical Questions

6ES7134-4MB02-0AB0 FAQ

What is the main difference between the 6ES7134-4MB02-0AB0 and the standard ET 200S current-input modules?

The 6ES7134-4MB02-0AB0 is a high-feature two-channel current-input module. It provides 15-bit-class measurement resolution, a 0.5 ms module cycle time, isochronous operation and support for two-wire or four-wire measuring transducers. These characteristics distinguish it from standard current-input variants such as the 6ES7134-4GB11-0AB0, which uses lower-resolution conversion and a longer cycle time.

Can the 6ES7134-4MB02-0AB0 handle both 4–20 mA and ±20 mA signals?

Yes. The module supports two current-input ranges: ±20 mA with 15 bits plus sign and 4–20 mA with 15-bit resolution. This makes it suitable for industrial current measurement where either bipolar current signals or the widely used 4–20 mA range is required.

Why would a maintenance engineer search specifically for 6ES7134-4MB02-0AB0 instead of another ET 200S analog module?

Exact matching matters when an existing ET 200S station depends on a particular current-input configuration. The 6ES7134-4MB02-0AB0 combines two current inputs, 2-wire/4-wire transducer support, high-resolution conversion and high-speed operation. Replacing it with a voltage-input or standard current-input variant can change the electrical signal type or performance characteristics of the existing station.

What should be checked before replacing a 6ES7134-4MB02-0AB0 in an operating ET 200S station?

First confirm the exact order number and that the replacement is the current-input 2AI I 2/4WIRE HF version. Then verify the connected transducer arrangement, selected current range, terminal assignment and the station configuration. For maintenance work, the replacement should reproduce the existing channel function rather than simply matching the physical module width.

Is the 6ES7134-4MB02-0AB0 suitable when fast analog acquisition is important?

It is designed as a high-feature module and specifies a 0.5 ms module cycle time. It also supports isochronous operation, with a minimum isochronous DP cycle of 0.7 ms stated for the module. This makes it a stronger fit for applications where faster analog acquisition is important than the standard ET 200S current-input alternatives.
