SIMATIC ET 200SP · ANALOG INPUT
6ES7134-6TD00-0CA1
AI 4xI 2-wire HART High Feature

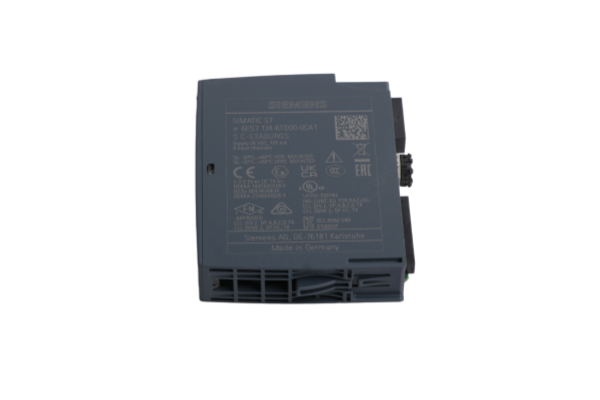

Four-channel analog input module for 2-wire current measurement with HART communication, designed for the SIMATIC ET 200SP distributed I/O system. 4 × Analog Input 4–20 mA HART 16-bit ±0.3%
|
 PRODUCT
6ES7134-6TD00-0CA1
|
|
04
ANALOG CHANNELS
Four current-input channels for 2-wire transmitters.
|
16
BIT RESOLUTION
16-bit analog value processing for the module.
|
±0.3%
ACCURACY
Specified module accuracy for the analog input function.
|
4–20
mA HART
Current measurement with HART communication capability.
|
|
ENGINEERING FEATURES
Designed for Clear Channel-Level Diagnostics
Channel Diagnostics
Channel-by-channel monitoring supports detection of wire break, short circuit, overflow and underflow conditions.
HART Capability
Supports HART communication from Rev. 5 through Rev. 7 for compatible 2-wire current loops.
Run-Time Reparameterization
Reparameterization during RUN operation is supported, helping simplify parameter changes during system operation.
|
MODULE ARCHITECTURE
|
|
SYSTEM APPLICATION
Where the 6ES7134-6TD00-0CA1 Fits
The module is intended for distributed analog acquisition within the SIMATIC ET 200SP system. Its four 2-wire current inputs are suited to process transmitters using the 4–20 mA HART signal range. In operating plants, this type of module is commonly searched for when a channel develops a wire-break or short-circuit condition, when a process value moves outside its permitted range, or when an existing HART input channel requires replacement. |
DOWNTIME CONSIDERATION
Protecting the Signal Path
A failed analog input channel can interrupt the controller's access to a process measurement. In applications where the signal participates in monitoring, regulation or interlocking, restoring the correct input module can help reduce troubleshooting time and avoid extended process interruption.
|
|
⌁
Wire Break
Channel-by-channel detection
|
⊘
Short Circuit
Input and sensor supply monitoring
|
↑
Overflow
Channel-level range monitoring
|
↓
Underflow
Channel-level range monitoring
|
|
ENGINEERING ENVIRONMENT
Integration & Configuration
|
INSTALLATION DATA
Compact Physical Footprint
MODULE DIMENSIONS
15 × 73 × 58
mm · Width × Height × Depth
APPROX. WEIGHT
31 g
|
