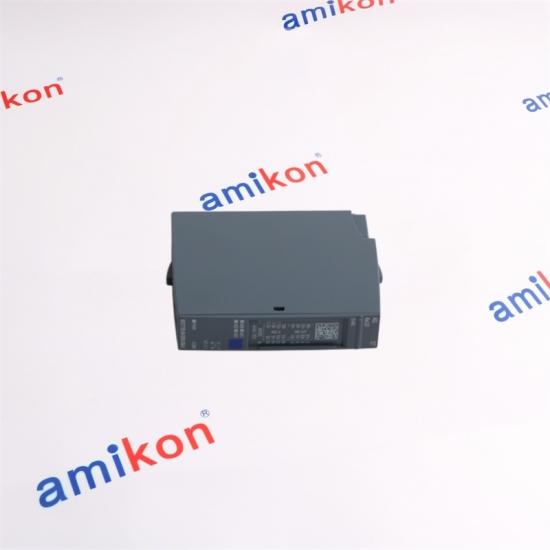

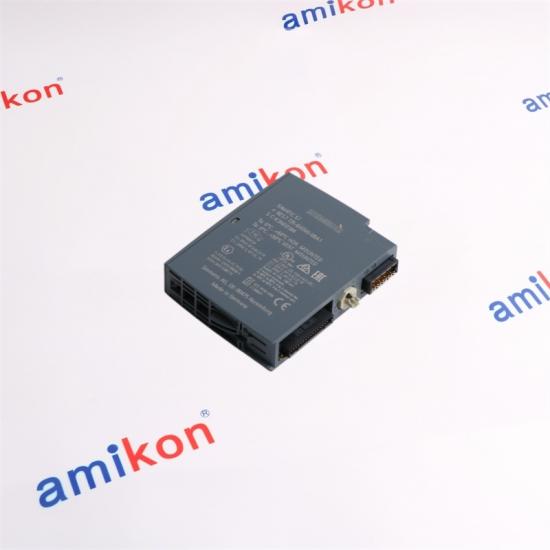

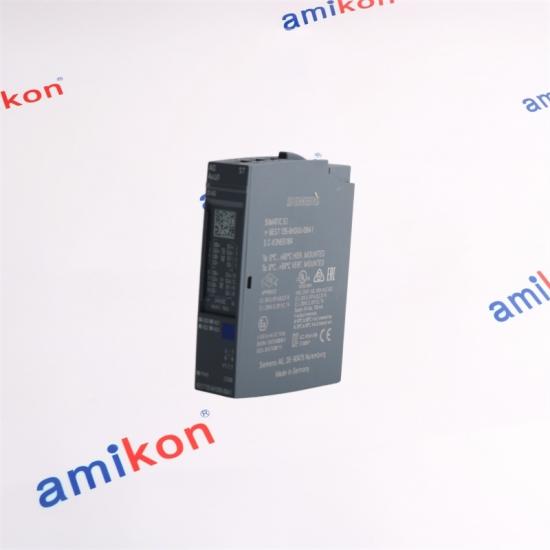

SIEMENS 6ES7135-6HD00-0BA1 ET 200SP Analog Output Module

Calculate shipping

Quotation Request

SIMATIC ET 200SP

6ES7135-6HD00-0BA1

PRODUCT

ANALOG
OUTPUT

OUTPUT CHANNELS

Analog outputs

RESOLUTION

16 bit

Analog signal resolution

ACCURACY

±0.3%

Module accuracy

CONTACT

Miya Zheng

Sales Manager

sales@amikon.cn

PHONE / WHATSAPP

+86 180 2077 6792

Product Categories

Brands
- ABB
- BENTLY NEVADA
- HONEYWELL
- EMERSON
- ALLEN BRADLEY
- YOKOGAWA
- GENERAL ELECTRIC
- TRICONEX
- ICS TRIPLEX
- HIMA
- BACHMANN
- SIEMENS
- PROSOFT
- SCHNEIDER
- FOXBORO
- OTHERS

New Products

Product Details

SIMATIC ET 200SP

Overview Parameters Applications FAQ Contact

SIMATIC ET 200SP

6ES7135-6HD00-0BA1

AQ 4xU/I ST

Analog output module with four configurable voltage or current outputs.

Standard analog output module

CORE CONFIGURATION

Four-channel analog output

≋

OUTPUTS

4 Channels

RESOLUTION

Up to 16 bit

SUPPLY

24 V DC

BASE UNIT

A0 / A1

Voltage ranges include ±10 V, ±5 V, 0–10 V and 1–5 V. Current ranges include ±20 mA, 0–20 mA and 4–20 mA.

DIRECT CONTACT

Need this module?

Contact Miya directly for product availability and purchasing details.

Sales Manager

Miya Zheng

✉ sales@amikon.cn ☎ +86 180 2077 6792

01 / OUTPUT

Voltage + Current

02 / PRECISION

±0.3% basic error limit

03 / DIAGNOSTICS

Module & channel diagnostics

04 / WIDTH

15 mm

TECHNICAL CORE

Technical Parameters

A compact ET 200SP analog output module designed for flexible voltage and current signal generation.

Output Architecture

Analog outputs4

Voltage output±10 V / ±5 V / 0–10 V / 1–5 V

Current output±20 mA / 0–20 mA / 4–20 mA

Cycle time≥ 5 ms

Electrical Characteristics

Rated supply24 V DC

Supply range19.2–28.8 V DC

Maximum current150 mA

Typical power loss1.5 W

Accuracy & Load

Basic error limit±0.3%

Linearity error±0.03%

Voltage load≥ 2 kΩ

Current load≤ 500 Ω

Mechanical & System Fit

Width15 mm

WeightApprox. 31 g

BaseUnitsA0 / A1

Operating temperature0–60 °C horizontal

SYSTEM ROLE

Analog signal generation inside ET 200SP

The module is used where a SIMATIC ET 200SP station must provide controlled analog voltage or current signals to connected actuators and process devices.

OUTPUT CHANNELS

24 V

DC SUPPLY

PROCESS CONTINUITY

When this module becomes a replacement target

Unexpected analog output

An output channel may no longer generate the expected voltage or current signal, affecting the connected process device.

Channel or wiring diagnostics

Short-circuit, wire-break, supply-voltage, overflow or underflow conditions can trigger diagnostic handling.

Production interruption risk

If the affected analog output controls a critical process variable or actuator, loss of the channel can contribute to process interruption or equipment downtime.

DIAGNOSTIC CAPABILITY

Built for easier fault localization

Diagnostic functions help operators distinguish between supply, wiring, output-range and module-related conditions.

⚡

Supply voltage

⌁

Short-circuit

↗

Overflow

↘

Underflow

◌

Wire break

FAQ

Questions engineers usually ask

Practical answers focused on configuration, output selection, system integration and replacement decisions.

MODEL

6ES7135-6HD00-0BA1

What is the main function of Siemens 6ES7135-6HD00-0BA1?

It is a SIMATIC ET 200SP AQ 4xU/I ST analog output module with four channels. Each channel can be configured for voltage or current output ranges, allowing the ET 200SP station to provide analog control signals to connected process devices.

Which analog signal ranges can 6ES7135-6HD00-0BA1 generate?

Voltage output can be configured as ±10 V, ±5 V, 0–10 V or 1–5 V. Current output can be configured as ±20 mA, 0–20 mA or 4–20 mA. The available resolution depends on the selected range and can reach 16 bits including sign.

Can the output behavior be defined when the CPU enters STOP?

Yes. The module provides configurable behavior for CPU STOP. Depending on the selected configuration, an output can be switched off, retain its last value, or use a defined substitute value.

Which BaseUnit types are suitable for 6ES7135-6HD00-0BA1?

The module is specified for ET 200SP BaseUnit types A0 and A1. Correct BaseUnit selection is important because the module receives its required supply and field connection through the ET 200SP station architecture.

How does 6ES7135-6HD00-0BA1 compare with a typical digital output module in the same ET 200SP family?

The key distinction is the signal type. A digital output module switches discrete states, while 6ES7135-6HD00-0BA1 generates continuously variable analog voltage or current signals. This makes the AQ 4xU/I ST suitable when a process device requires a proportional control signal rather than a simple ON/OFF command.

FAMILY POSITION

How the AQ 4xU/I ST fits your signal architecture

Selection point

6ES7135-6HD00-0BA1

Digital output

Signal requirement

Signal form

Analog

Discrete

Continuous / ON-OFF

Typical output

Voltage / Current

Switching state

Depends on actuator

Best fit

Proportional control

Binary control

Process requirement
