SIEMENS LOGO! EXPANSION MODULE

6ED1055-1NB10-0BA2

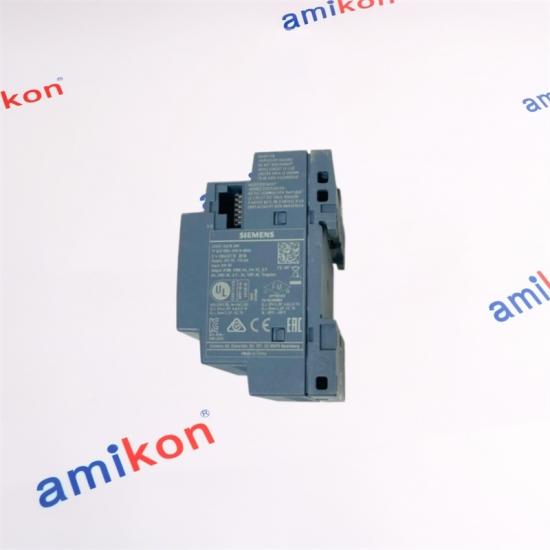

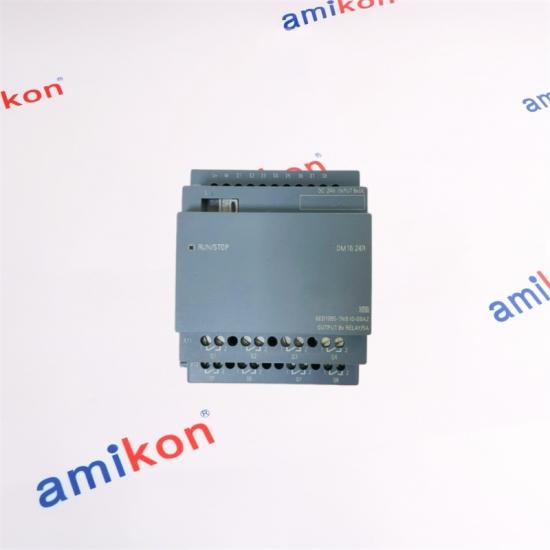

LOGO! DM16 24R Expansion Module

A LOGO! 8 expansion module with 24 V DC supply and I/O, providing 8 digital inputs and 8 relay outputs. The Siemens product description specifies 4 MW and use with LOGO! 8.

INPUTS

8 DI

OUTPUTS

8 Relay

SUPPLY

24 V DC

◆

PRODUCT FAMILY

LOGO! Expansion Modules

●

MOUNTING

35 mm DIN Rail

▣

WIDTH

4 spacing units

✓

PROTECTION

IP20

Product Profile

Compact digital expansion for LOGO! 8 control architectures

The Siemens 6ED1055-1NB10-0BA2 is the LOGO! DM16 24R expansion module. Siemens specifies the module for LOGO! 8 and defines it as a 24 V DC / 24 V DC / relay module with 8 digital inputs and 8 digital outputs.

Its compact DIN-rail format allows additional digital I/O to be incorporated into a LOGO! control arrangement while keeping the installation organized inside the control cabinet.

Technical Specifications

Key electrical, mechanical and environmental characteristics

Manufacturer	Siemens
Article Number	6ED1055-1NB10-0BA2
Product	LOGO! DM16 24R expansion module
Application Family	LOGO! 8
Supply Voltage	24 V DC
Permissible Supply Range	20.4 to 28.8 V DC
Digital Inputs	8
Input Type	DC
Digital Output	8 relay outputs
Rated Output Current	5 A for signal "1"
Minimum Load Current	100 mA
Relay Contact Capacity	3 A inductive / 5 A resistive
Lamp Load	Maximum 1,000 W
Switching Frequency	2 Hz resistive / 0.5 Hz inductive / 10 Hz mechanical
Input Delay	Maximum 1.5 ms, standard inputs
Mounting	35 mm DIN rail
Width	71.5 mm
Height	90 mm
Depth	58 mm
Protection Rating	IP20
Operating Temperature	-20 °C to +55 °C, no condensation
Approvals / Standards	CE, CSA, UL, FM, IEC 61131, VDE 0631, Marine approval

Where It Fits in a Control System

Practical replacement and troubleshooting context

LOGO! 8 Expansion

The module is designed as part of the LOGO! 8 expansion architecture, adding eight digital inputs and eight relay outputs to the control arrangement.

Typical Search Trigger

It may be searched during troubleshooting when a LOGO! installation shows missing digital input signals, unavailable relay outputs, or a suspected expansion-module hardware fault.

Downtime Consideration

A failed I/O expansion can prevent connected control signals from being processed or switched as intended. Depending on the machine logic, this can interrupt automatic operation and increase downtime exposure.

Replacement Check

Before ordering, match the complete part number 6ED1055-1NB10-0BA2 and verify the existing LOGO! configuration, supply voltage, I/O arrangement and relay-output requirements.
