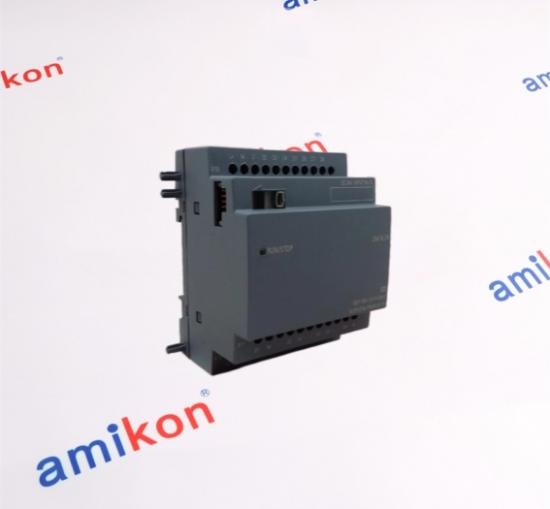

6ED1055-1CB10-0BA2

A 24 V DC digital expansion module for LOGO! 8, providing 8 digital inputs and 8 transistor digital outputs in a compact DIN-rail format. The module is designed to extend the digital I/O capability of a LOGO! control configuration.

Designed for LOGO! Expansion

The 6ED1055-1CB10-0BA2 belongs to the Siemens LOGO! expansion module family. It is specified as a LOGO! DM16 24 expansion module for LOGO! 8 and provides additional digital I/O capacity for a LOGO! control configuration.

Compact DIN-Rail Architecture

The module is designed for mounting on a 35 mm DIN rail and occupies 4 spacing units. Its compact dimensions support installation where cabinet space needs to be used efficiently.

LOGO! 8 Control Configurations

The module is intended as a digital expansion component for LOGO! 8. It adds eight digital inputs and eight transistor outputs to a compatible control configuration, allowing additional field signals and switching functions to be connected.

Digital Signal Expansion

Typical search situations include a requirement to restore or expand digital I/O capacity when an existing LOGO! 8 configuration needs additional input or transistor output channels.

When I/O Availability Becomes Critical

If an expansion module becomes unavailable, the associated digital signals and output functions may no longer be available to the control configuration. For equipment relying on those I/O channels, this can create a risk of interrupted machine or process operation.

Output Protection

The transistor outputs include short-circuit protection. The specified output current is 0.3 A and switching frequency depends on the load type, with Siemens specifying up to 10 Hz for resistive loads and 0.5 Hz for inductive loads.

Send the Right Details — Get a Faster Response

For a quotation on 6ED1055-1CB10-0BA2, please include the following information so the order can be checked efficiently:
