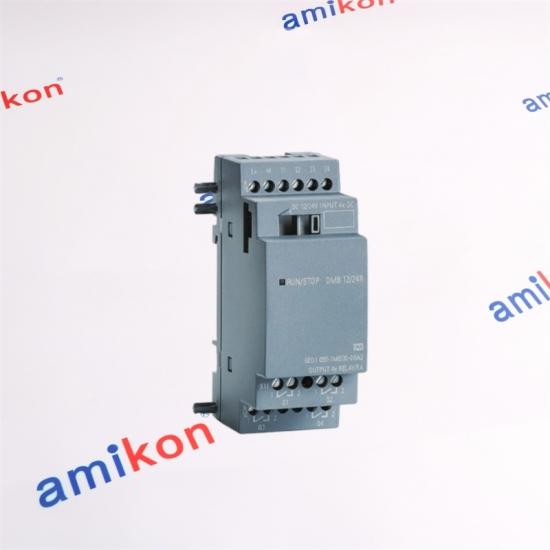

SIEMENS 6ED1055-1HB00-0BA2 LOGO! DM8 24R AC / DC / NPN Expansion Module

Calculate shipping

Quotation Request

SIEMENS LOGO! 8 EXPANSION MODULE

6ED1055-1HB00-0BA2

DM8 24R

INPUTS

4 Digital Inputs

OUTPUTS

4 Relay Outputs

SUPPLY

24 V

INPUT TYPE

AC / DC / NPN

LOGO! 8 | 35 mm DIN Rail | 2 Spacing Units

Delivery: 3–5 Days | Warranty: 12 Months | Packaging: Brand New

Sales Manager: Miya zheng

sales@amikon.cn | WhatsApp: +86 180 2077 6792

Product Categories

Brands
- ABB
- BENTLY NEVADA
- HONEYWELL
- EMERSON
- ALLEN BRADLEY
- YOKOGAWA
- GENERAL ELECTRIC
- TRICONEX
- ICS TRIPLEX
- HIMA
- BACHMANN
- SIEMENS
- PROSOFT
- SCHNEIDER
- FOXBORO
- OTHERS

New Products

Product Details

SIEMENS | 6ED1055-1HB00-0BA2

Overview Specifications Application FAQ Models GET QUOTE

LOGO! 8 EXPANSION MODULE

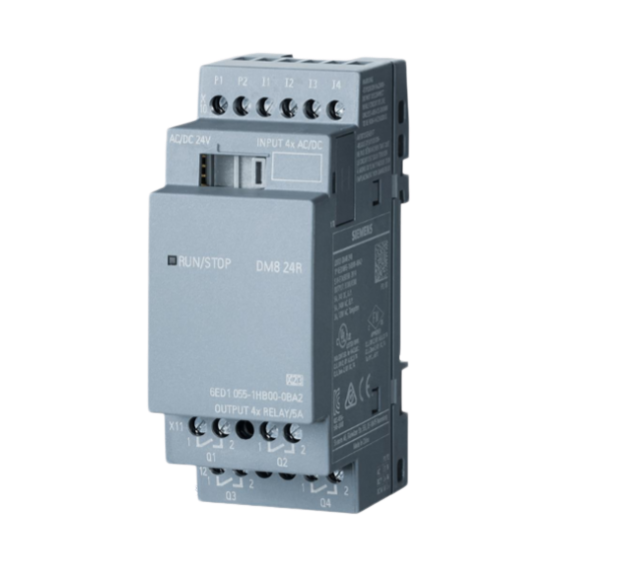

Siemens 6ED1055-1HB00-0BA2

LOGO! DM8 24R Expansion Module

Siemens 6ED1055-1HB00-0BA2 is a LOGO! DM8 24R expansion module designed for LOGO! 8 configurations. The module provides 4 digital inputs and 4 relay outputs with a 24 V / 24 V / relay power and I/O arrangement.

4 DI 4 DO RELAY 24 V LOGO! 8

REQUEST PRICE EMAIL SALES

6ED1055-1HB00-0BA2

PRODUCT TYPE

LOGO! DM8 24R

4 digital inputs / 4 relay outputs

INPUTS

4 DI

OUTPUTS

4 Relay DO

SUPPLY

24 V

MOUNTING

35 mm DIN

STATUS

Active Product

PRODUCT DATA

Technical Specification

Manufacturer	Siemens
Article Number	6ED1055-1HB00-0BA2
Product Description	LOGO! DM8 24R expansion module
Product Family	LOGO! expansion modules
Compatible Controller	LOGO! 8
Power / I/O Arrangement	24 V / 24 V / Relay
Digital Inputs	4
Digital Outputs	4
Output Technology	Relay
Input Type	AC / DC / NPN
Mounting	35 mm DIN rail
Width	2 spacing units
Net Weight	0.166 kg
Product Lifecycle	PM300: Active Product

MODULE PROFILE

DM8 24R

● 4 digital inputs

● 4 relay outputs

● AC/DC/NPN input

● 24 V configuration

● LOGO! 8 expansion

● 35 mm DIN rail

SUPPLY SUPPORT

3–5 Days Delivery

AUTOMATION PARTS SUPPORT

Hard-to-Find Parts Shouldn't Keep a System Waiting.

Tell us exactly which component you need, how many units are required, where they should be delivered and when the part is needed.

Delivery: 3–5 Days
Warranty: 12 Months
Packaging: Brand New

MULTILINGUAL SUPPORT TEAM

Replace the image path with your team photo.

AUTOMATION PARTS INVENTORY

Replace the image path with your warehouse photo.

SYSTEM APPLICATION

Where the 6ED1055-1HB00-0BA2 Fits

The 6ED1055-1HB00-0BA2 is an expansion component within the LOGO! 8 platform. Its combination of four digital inputs and four relay outputs makes it relevant where additional digital signal capacity is required in a compact LOGO! control configuration.

Compact Control

Suitable for LOGO! 8 configurations where a compact controller needs additional digital I/O capacity.

Switching Functions

The relay outputs can be incorporated into control logic for switching functions within the limits of the specified load characteristics.

Additional Field Signals

Four additional digital inputs allow compatible field signals to be incorporated into the LOGO! control configuration.

Maintenance Replacement

The exact article number becomes important when a failed expansion module has to be matched with the installed LOGO! 8 configuration.

MAINTENANCE CONSIDERATION

Why Engineers May Search This Exact Part Number

When the digital input or relay-output section of a LOGO! 8 expansion arrangement no longer operates as expected, maintenance teams may search for the exact 6ED1055-1HB00-0BA2 article number to preserve the existing I/O architecture. If the affected signals participate in machine sequencing, switching or building-control functions, loss of the module can make those functions unavailable and may increase the risk of an unplanned operational stop.

ENGINEERING QUESTIONS

FAQ

Q1. What exactly is Siemens 6ED1055-1HB00-0BA2 intended to add to a LOGO! 8 system?

It is a LOGO! DM8 24R expansion module that adds 4 digital inputs and 4 relay outputs to a compatible LOGO! 8 configuration.

Q2. Which signal characteristics distinguish the 6ED1055-1HB00-0BA2 from a transistor-output DM8?

The 6ED1055-1HB00-0BA2 is the DM8 24R version and uses relay outputs. Siemens identifies its input capability as AC/DC/NPN.

Q3. What mounting arrangement should be checked before installing Siemens 6ED1055-1HB00-0BA2?

Siemens specifies mounting on a 35 mm DIN rail. The module occupies 2 spacing units.

Q4. How can the 6ED1055-1HB00-0BA2 affect a machine when its I/O section is unavailable?

If its digital inputs or relay outputs are used by the programmed control sequence, the associated signals may no longer be available to the LOGO! 8 logic. Depending on the machine design, this can lead to unavailable functions, alarms or an operational interruption.

Q5. Which information should be confirmed when sourcing a replacement 6ED1055-1HB00-0BA2?

Confirm the exact article number, the existing LOGO! 8 configuration, the 24 V supply arrangement, the 4 DI / 4 relay DO requirement and the electrical characteristics of the connected loads.
