Product Details

PROSOFT TECHNOLOGY · PLX5x GATEWAY

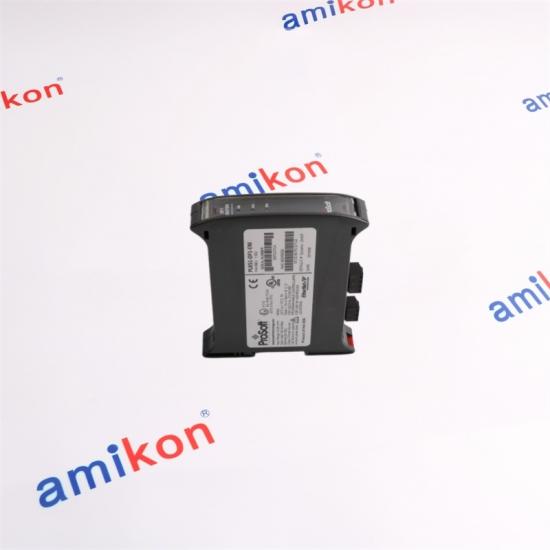

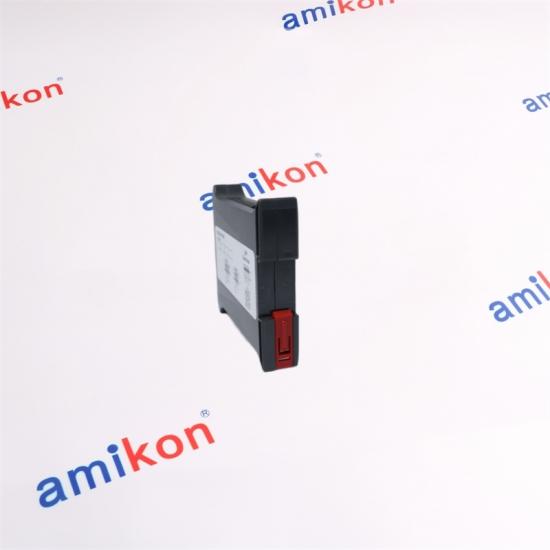

PLX51-DNPS

DNP3 Outstation / Slave Gateway

A communications gateway designed to route DNP3 traffic to EtherNet/IP or Modbus networks, with Ethernet and serial connectivity for industrial integration.

DNP3 SECURE v5

Secure authentication support

900,000 EVENTS

Onboard DNP3 event storage

DLR SUPPORT

EtherNet/IP Device Level Ring

COMMUNICATION BRIDGE

DNP3

↔

EtherNet/IP
Modbus

The gateway operates as a DNP3 Outstation or Slave and can connect DNP3 devices into Logix environments without requiring controller data copying or mapping.

DIN RAIL ETHERNET

01 / PRODUCT DETAIL

Integration
Without Rebuilding
the Control Layer

The PLX51-DNPS is a DNP3 gateway configured as an Outstation or Slave. It provides intelligent routing between DNP3 and EtherNet/IP or Modbus, supporting both Ethernet and serial communications. For Logix integration, the gateway can write directly into Logix tags, avoiding the need to copy or map data in the controller.

◆ Protocol Layer DNP3 Outstation / Slave with EtherNet/IP and Modbus Master/Slave support.	◇ Network Resilience DLR support is available for EtherNet/IP network architectures.
○ Event Handling Onboard storage supports up to 900,000 DNP3 events, with unsolicited reporting supported.	+ Diagnostics Diagnostics, statistics and a DNP3 traffic analyzer assist troubleshooting and fault analysis.

02 / HARDWARE & ENVIRONMENT

PLX51-DNPS Specification Profile

Physical

Enclosure	IP20, NEMA/UL Open Type, DIN Rail
Dimensions	149 × 34 × 116 mm
Ethernet	2 × 10/100 Base-T RJ45
Serial	RS232 / RS485, 9-way terminal

Electrical

Input	10–32 V DC
Current	121 mA @ 24 VDC
Consumption	3.1 W; 300 mA maximum
USB Power	5 V, max. 200 mA / 1 W

Environment

Temperature	−20°C to +70°C
Humidity	5–95%, non-condensing
Altitude	< 2000 m
Earth	Terminal-based connection

03 / SERIES CONTEXT

The PLX5x
Gateway Family

The PLX5x platform is designed for industrial protocol integration where existing field networks need to exchange data with modern Ethernet-based control architectures. The PLX51-DNPS specifically provides the DNP3 Outstation/Slave role while supporting EtherNet/IP and Modbus communication paths.

DNP3

Outstation / Slave operation

EtherNet/IP

Industrial Ethernet integration

Modbus

TCP/IP and RTU support

04 / DIRECT CONTACT

Ready to verify
your PLX51-DNPS requirement?

Send the part number, required quantity and application details for a focused quotation.

✉ Email: sales@amikon.cn	☎ Phone / WhatsApp
Sales Manager: Miya Zheng \| Phone/WhatsApp: 86-18020776792

05 / PURCHASING QUESTIONS

PLX51-DNPS FAQ

Q1 · Does PLX51-DNPS fit a Logix integration where controller tag mapping is a concern? Yes. ProSoft states that PLX51-DNPS can write directly into Logix tags, eliminating the need to copy or map data in the Logix controller for this integration approach.	Q2 · Can PLX51-DNPS be used when the DNP3 side requires secure authentication? Yes. The gateway supports DNP3 Secure Authentication v5, providing a security mechanism for DNP3 communication with supported system architectures.
Q3 · Is PLX51-DNPS suitable when an application needs both Ethernet and serial communications? Yes. The hardware provides two 10/100 Base-T Ethernet ports and serial connectivity supporting RS232 and RS485 through a 9-way terminal arrangement.	Q4 · How does PLX51-DNPS help when DNP3 event retention matters? The gateway provides onboard storage for up to 900,000 DNP3 events and supports unsolicited reporting, which can be useful in architectures where event handling is important.
Q5 · What should be checked before replacing an existing PLX51-DNPS installation? Verify the required DNP3 role, EtherNet/IP or Modbus architecture, Ethernet and serial connection requirements, power range, environmental conditions, and the existing configuration before ordering a replacement unit.

06 / INDUSTRIAL PARTS SUPPORT

Keep Your Automation Projects Moving

We provide industrial automation components across a wide range of brands and applications, helping maintenance and engineering teams reduce sourcing delays and restore operating systems efficiently.

A practical sourcing route for industrial automation

Amikon focuses on hard-to-find automation components used to keep manufacturing systems running. Our service combines international sourcing, industrial parts availability and responsive quotation support.

◆ Worldwide parts delivery	◆ Multi-brand sourcing
◆ Spare-parts support	◆ Fast quotation response

Built around the needs of maintenance teams

From current automation components to difficult-to-source parts, our goal is to shorten procurement time and help customers return equipment to service with less interruption.

Global delivery · Industrial automation · Responsive sales support

07 / ORDERING SUPPORT

Send the right details.
Get a focused quotation.

Please include:

Part Number	Quantity	Destination
Required Date	Machine / System

Commercial Details

Delivery	3–5 days
Warranty	12 months
Packaging	Brand New
Delivery Way	E-packing / FedEx / EMS / TNT / DHL / UPS
Payment Term	T/T

Return / Replacement Policy

Please contact us within 7 days after receiving the items if any issue occurs. Returned items should remain in their original condition and include the specific reason for return. A return or replacement can be arranged after the returned item is received. The buyer is responsible for shipping costs incurred for the return or replacement.
