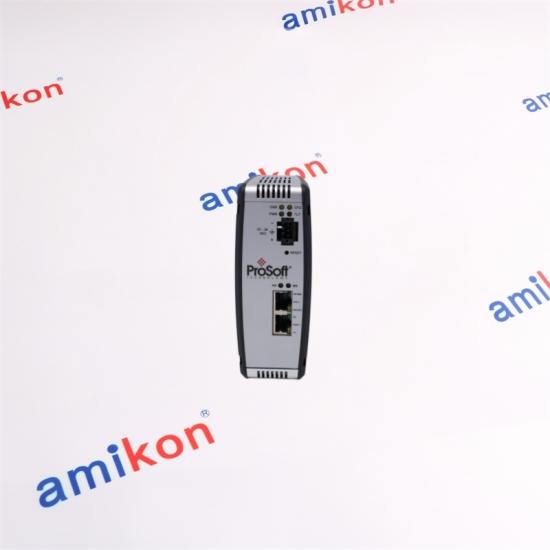

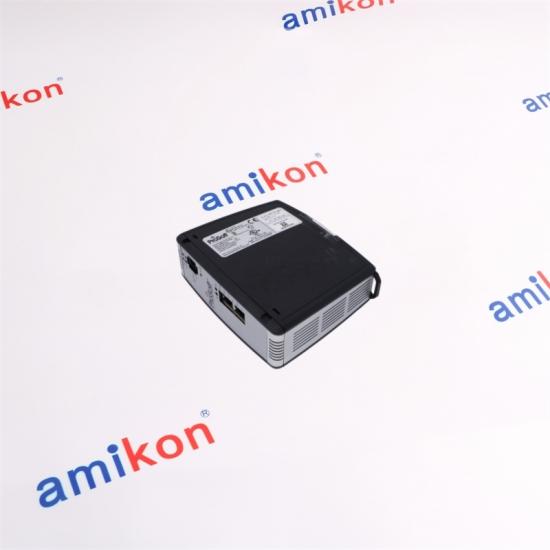

PROSOFT PLX31-PND-MBS Stand-alone DIN-rail Gateway

Calculate shipping

Quotation Request

PROFINET ↔ MODBUS SERIAL

PLX31-PND-MBS

Stand-alone DIN-rail gateway for bidirectional communication between PROFINET controllers and Modbus serial devices.

PROFINET CLASS A DEVICE

SERIAL MODBUS RTU / ASCII	SERIAL MODE MASTER / SLAVE
DATA EXCHANGE Up to 10,000 × 16-bit registers

Ethernet connectivity supports network communication, remote configuration and diagnostics, while the optional SD card can retain configuration files for recovery and transfer.

AMIKON CONTACT

Miya zheng

Sales Manager

EMAIL SALES WHATSAPP

We have a wide range of brands and products for various industries, we provide services to tens of thousands of customers around the world.

Product Categories

Brands
- ABB
- BENTLY NEVADA
- HONEYWELL
- EMERSON
- ALLEN BRADLEY
- YOKOGAWA
- GENERAL ELECTRIC
- TRICONEX
- ICS TRIPLEX
- HIMA
- BACHMANN
- SIEMENS
- PROSOFT
- SCHNEIDER
- FOXBORO
- OTHERS

New Products

Product Details

PROSOFT TECHNOLOGY · PLX30 PLATFORM

PLX31-PND-MBS

PROFINET → MODBUS SERIAL GATEWAY

A stand-alone DIN-rail gateway designed for bi-directional data exchange between a PROFINET Controller and Modbus serial devices. The serial interface can operate as a Modbus master or slave, while the PROFINET side operates as a Class A device.

PROFINET

Class A Device

MODBUS

RTU / ASCII

SERIAL

RS232 / 422 / 485

CORE SPECIFICATIONS

PROFINET I/O DATA 1440 / 1440 bytes Input / Output	SERIAL PORTS 1 Port RS232 / RS422 / RS485
DATA CAPACITY 10,000 16-bit registers	COMMAND LIST Up to 100 Fully configurable commands
POWER INPUT 10–36 VDC 24 VDC nominal	OPERATING RANGE -25°C to 70°C -13°F to 158°F

EMAIL AMIKON WHATSAPP / PHONE

⇄

Bi-Directional Exchange

Transfers data between a PROFINET Controller and Modbus serial devices in both directions.

◆

◎

Flexible Serial Layer

The serial port supports Modbus RTU and ASCII operation and can be configured as master or slave.

◆

▣

Remote Access

Ethernet connectivity supports network communication, remote configuration and diagnostics.

TECHNICAL PROFILE

PROFINET Type	Class A Device
Exchange Types	Cyclic Real-time (RT) and Acyclic Data
Ethernet	10/100 Mbit full / half duplex RJ45
Modbus Modes	RTU with CRC-16 / ASCII with LRC
Baud Rate	110 baud to 115.2 kbps

Data Size	7 or 8 bits
Parity	None / Even / Odd
Node Address	1 to 247
Humidity	5%–95% RH, non-condensing
Enclosure	IP20 / NEMA/UL Open Type / DIN Rail

FIELD CONNECTION

Designed for Panel Integration

Mounting
DIN Rail

Serial Interface
RS232 / RS422 / RS485

Ethernet
RJ45, 10/100 Mbit

Serial Isolation
2500 Vrms port signal isolation

DATA HANDLING

Built Around Configurable Data Exchange

100 Configurable Commands Function code, slave address, register addressing and word/bit count can be configured.	10K 16-bit Registers Up to 10,000 16-bit registers can be used for data exchange.
Polling Control Continuous polling or polling on data change can be configured.	Status Monitoring Individual command error codes and a maintained slave status list support diagnostics.

READY TO INQUIRE?

PLX31-PND-MBS

Please provide Part Number, Quantity, Destination, Required Date and Machine/System when requesting a quotation.

EMAIL sales@amikon.cn	PHONE / WHATSAPP 86-18020776792
SALES MANAGER · MIYA ZHENG

DELIVERY

3–5 Days

WARRANTY

12 Months

PACKAGING

Brand New

PAYMENT

T/T

Delivery way: E-packing / FedEx / EMS / TNT / DHL / UPS

PLX31-PND-MBS FAQ

Q1 · Can PLX31-PND-MBS bridge an existing Modbus serial network to a PROFINET Controller?

Yes. PLX31-PND-MBS is designed for bi-directional data transfer between a PROFINET Controller and Modbus serial devices. Its serial interface supports Modbus RTU and ASCII operation, while the PROFINET side operates as a Class A device.

Q2 · When replacing PLX31-PND-MBS, how much Modbus data can the application exchange?

The gateway supports up to 10,000 16-bit registers for data exchange. It also provides up to 100 configurable Modbus commands, allowing the application to organize register, coil and status operations according to the connected devices.

Q3 · Is PLX31-PND-MBS limited to one Modbus communication mode?

No. The serial interface supports both Modbus RTU with CRC-16 error checking and Modbus ASCII with LRC error checking. Communication parameters such as baud rate, parity, data size and stop bits are software configurable.

Q4 · What serial interface options should be checked before ordering PLX31-PND-MBS?

The gateway provides one serial port supporting RS232, RS422 and RS485. The required electrical interface should therefore be checked against the connected Modbus device and its existing serial wiring before replacement or installation.

Q5 · Can PLX31-PND-MBS be configured and diagnosed remotely?

Yes. The gateway provides Ethernet connectivity for network communication, remote configuration and diagnostics. ProSoft Configuration Builder can be used for remote configuration, while the gateway provides protocol and configuration status indications.

CONFIGURATION NOTE

For a replacement project, verify the PROFINET controller configuration, serial interface, Modbus addressing and command requirements together before shipment.
