02 / FUNCTION
Signal Conditioning

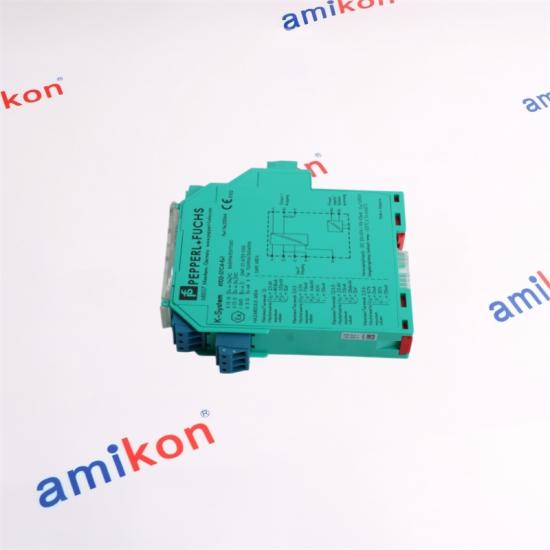

Without a Bulky Footprint The KFD2-STC4-1 supplies a connected transmitter and transfers the measured current signal to the control side through an isolated signal-conditioning stage. The input supports 0/4–20 mA operation. For a 20 mA input, the available voltage at the field-side transmitter connection is specified at a minimum of 16 V for the relevant terminals. The control-side output provides 4–20 mA and supports loads from 0 to 800 Ω. The output is specified for overload conditions above 25 mA. |
|
| CATEGORY | PARAMETER | SPECIFICATION |
| SUPPLY | Rated voltage | 20–35 V DC |
| Connection | Power Rail or terminals 14+, 15− | |
| Power dissipation | 1.5 W | |
| Power consumption | 1.9 W | |
| INPUT | Signal | 0/4–20 mA |
| Input resistance | ≤64 Ω at terminals 2−, 3; ≤500 Ω at terminals 1+, 3 | |
| Available voltage | ≥16 V at 20 mA, terminals 1+, 3 | |
| Input terminals | 1+, 2−, 3 or 5−, 6+ | |
| OUTPUT | Signal | 4–20 mA |
| Load | 0–800 Ω | |
| Overload | >25 mA | |
| Output terminals | 7−, 8+, 9 | |
| TRANSFER | Deviation at 20 °C | ≤10 µA, including calibration, linearity, hysteresis, loads and supply fluctuations |
| Temperature influence | ≤20 ppm/K | |
| Settling time | 200 µs | |
| Bandwidth | 0–7.5 kHz and 0.3–7.5 kHz depending on signal direction and test condition | |
| ISOLATION | Input / output | Basic insulation according to EN 50178; rated insulation voltage 253 Veff |
| Input / power supply | Basic insulation according to EN 50178; rated insulation voltage 253 Veff | |
| Output / power supply | Functional insulation; rated insulation voltage 50 V AC | |
| MECHANICAL | Dimensions | 20 × 124 × 115 mm (W × H × D) |
| Mass | Approx. 200 g | |
| Protection degree | IP20 | |
| Mounting | 35 mm DIN mounting rail according to EN 60715 | |
| ENVIRONMENT | Ambient temperature | −20…+60 °C (−4…+140 °F) |
| EMC | EN 61326-1:2013, industrial locations; NE 21:2006 |
|
FIELD DEVICE
SMART TRANSMITTER
Process measurement
|
→ |
K-SYSTEM INTERFACE
KFD2-STC4-1
Supply · Isolation · Conditioning
|
→ |
CONTROL SIDE
ANALOG INPUT
4–20 mA control signal
|
|
POWER RAIL OPTION
The device can receive supply through a Power Rail arrangement or through terminals 14+ and 15−.
|
DIN RAIL INSTALLATION
The 20 mm wide housing is designed for mounting on a 35 mm DIN rail according to EN 60715.
|
CONTROL INTEGRATION
A 4–20 mA output with a specified 0–800 Ω load range allows integration with compatible control-side analog circuits.
|
|
AFTER-SALES
Return / Replacement
|
01 Please contact us within 7 days if you have any question after you receiving the items.
02 The returned items has to be in its original condition, specific reason for the return, we will issue a return or replacement for your order after we received the returns.
03 The buyer is responsible for all the shipping cost incurred.
|
|
Q1 · Is KFD2-STC4-1 suitable when an existing 4–20 mA transmitter needs to be retained?
Yes, where the existing loop matches the unit's electrical arrangement. KFD2-STC4-1 accepts 0/4–20 mA and is designed to supply 2-wire and 3-wire SMART transmitters. Before replacement, verify the transmitter wiring, supply requirement, terminal arrangement and the receiving control input.
|
Q2 · Can KFD2-STC4-1 replace a two-channel STC4 unit directly?
Not as a direct channel-for-channel replacement. KFD2-STC4-1 is a one-channel device, while KFD2-STC4-2 provides two channels. If the existing installation uses two independent analog loops, replacing it with a single-channel unit would require the control architecture and wiring to be reconsidered.
|
|
Q3 · Does KFD2-STC4-1 provide enough output drive for a control input with significant loop resistance?
The specified output load range is 0–800 Ω. Therefore, the total resistance presented by the receiving circuit should be checked against this range, including connected devices and wiring. If the required load exceeds the specified range, another interface arrangement should be considered.
|
Q4 · Is KFD2-STC4-1 the right choice when the application specifically requires an Ex interface?
The standard KFD2-STC4-1 should not be treated as interchangeable with an Ex variant solely because both belong to the STC4 family. Pepperl+Fuchs offers dedicated Ex versions with hazardous-area characteristics. If the field circuit has a hazardous-area requirement, the exact Ex designation and applicable approval conditions must be matched before ordering.
|
|
Q5 · What should be checked before ordering KFD2-STC4-1 as a lifecycle replacement?
Confirm the complete loop architecture rather than matching only the part number. Check the number of channels, input range, output range, transmitter type, terminal assignment, supply method, output load, mounting arrangement and any required hazardous-area interface. These checks help avoid a replacement that fits mechanically but does not match the installed signal circuit.
|
ORDER CHECK
Match the complete signal path
Part number · channel count · input · output · supply · load · mounting · field-area requirements
|
