PEPPERL+FUCHS · K-SYSTEM

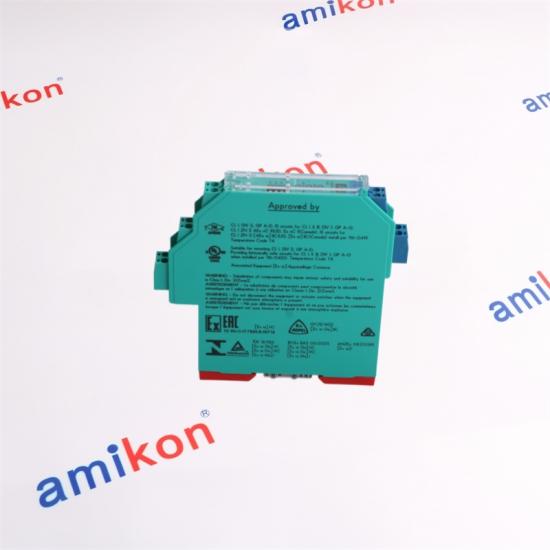

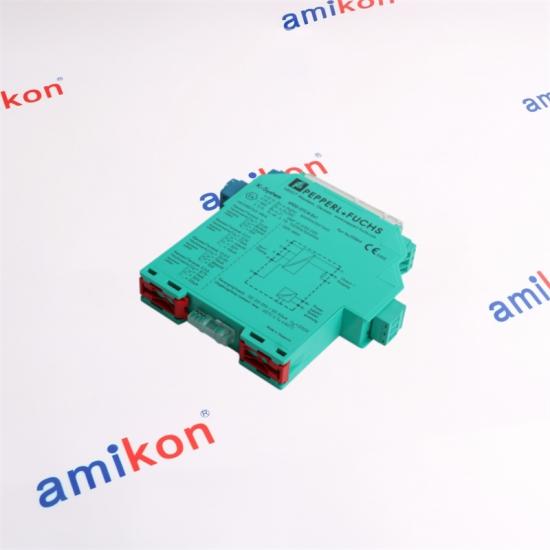

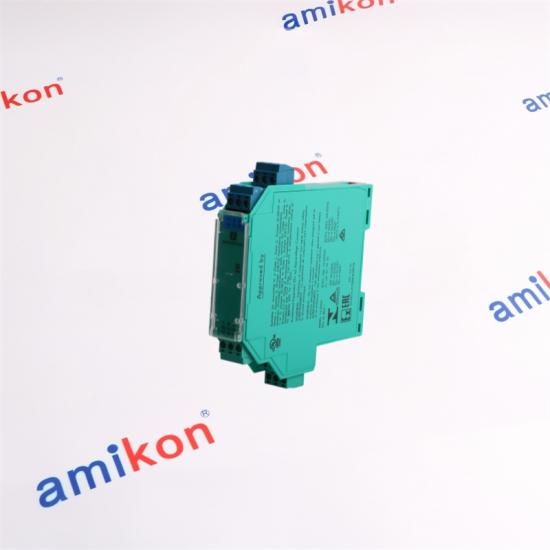

KCD2-STC-EX

Isolated signal conditioning for industrial 4–20 mA transmitter loops.
SIGNAL
4–20 mA
CHANNEL
1 Channel
SUPPLY
24 V DC
◆ LOOP ISOLATION   The Ex version is intended for intrinsically safe applications and transfers the analog signal to the safe area as an isolated current value. Applicable versions support bidirectional HART communication.
AMIKON GLOBAL AUTOMATION
Reliable Parts. Direct Response.
✉   sales@amikon.cn ☎   86-18020776792
Sales Manager
Miya Zheng
We have a wide range of brands and products for various industries, we provide services to tens of thousands of customers around the world.
AMIKON global automation supply


AMIKON
GLOBAL AUTOMATION
AMIKON industrial automation service

INDUSTRIAL AUTOMATION PARTS
FIND THE PART.
KEEP SYSTEMS MOVING.

We continue to innovate and strive to improve the world's automation parts supply level.
20+
Years Experience
551K+
Parts Range
128+
Manufacturers
AMIKON customer support

PART NO.
KCD2-STC-EX
CONTACT OUR TEAM
EMAIL SALES WHATSAPP








PEPPERL+FUCHS · K-SYSTEM

KCD2-STC-EX

KCD2-STC-Ex1 SMART Transmitter Power Supply
1
Isolated Channel
24 V DC
Power Rail Supply
4–20 mA
Analog Signal
12.5 mm
Housing Width
SIGNAL CONDITIONING
Hazardous-area transmitter interface
The KCD2-STC-Ex1 provides galvanic separation between the field and control sides while supplying 2-wire SMART transmitters or accepting current sources. The output can be operated as a current source, current sink, or voltage source through DIP-switch configuration.

SIGNAL ARCHITECTURE

KCD2-STC-Ex1 FUNCTIONAL PATH

01 · FIELD SIDE
2-Wire SMART Transmitter
The input accepts a 4–20 mA signal. The field-side circuit can supply a 2-wire transmitter and is designed for intrinsically safe applications when installed within the applicable parameters.
→
02 · ISOLATION
Galvanic Separation
Input/output isolation and input/power-supply isolation separate the field signal from the control-side circuit. The rated insulation voltage is 300 Veff for the specified insulation paths.
→
03 · CONTROL SIDE
PLC / DCS Interface
The control-side output supports 4–20 mA operation and, in source mode, 1–5 V operation through the internal 250 Ω resistor. HART communicator access is available through the dedicated terminal arrangement.
ENGINEERING PROFILE

TECHNICAL CHARACTERISTICS

POWER & GENERAL
Signal type Analog input
Supply connection Power Rail or terminals 9+, 10−
Rated supply voltage 19–30 V DC
Ripple ≤ 10 %
Power consumption ≤ 1.1 W
Power dissipation ≤ 800 mW
FIELD INPUT
Input terminals 1+, 2−; 3+, 4−
Input signal 4–20 mA, limited to approximately 26 mA
Open-circuit voltage 22 V at terminals 1+, 2−
Short-circuit current 26 mA at terminals 1+, 2−
Available voltage ≥15 V at 20 mA; ≥18 V at 4 mA
CONTROL-SIDE OUTPUT
Output terminals 5−, 6+; terminals 5−, 8+ for HART resistor
Source mode 4–20 mA or 1–5 V
Internal resistor 250 Ω, 0.1 %
Source-mode load 0–350 Ω
Sink mode 4–20 mA; operating voltage 10–30 V
Output ripple 20 mV RMS
DYNAMIC PERFORMANCE
Deviation at 20 °C <0.1 % full scale for 4–20 mA; ≤±0.2 % for 1–5 V
Bandwidth 0–3 kHz at −3 dB
Settling time ≤50 ms
Rise / fall time ≤10 ms
MECHANICAL & INSTALLATION
Ambient temperature −40 to +70 °C
Degree of protection IP20
Connection Screw terminals
Mounting 35 mm DIN mounting rail according to EN 60715
Dimensions 12.5 × 119 × 114 mm (W × H × D)
Mass Approx. 100 g

HAZARDOUS AREA
INTRINSIC SAFETY INTERFACE
The KCD2-STC-Ex1 is an associated apparatus for intrinsically safe circuits and can be installed in the non-hazardous area. Its field-side circuits are intended for supplying and interfacing with suitable intrinsically safe field equipment.
ATEX
[Ex ia Ga] IIC
[Ex ia Da] IIIC
[Ex ia Ma] I
IECEx
[Ex ia Ga] IIC
[Ex ia Da] IIIC
[Ex ia Ma] I
FUNCTIONAL SAFETY
SIL 2
SC 3 according to IEC/EN 61508
APPLICATION LOGIC

WHERE KCD2-STC-Ex1 FITS

FIELD TRANSMITTER
2-Wire SMART Devices
The device is intended for transmitter supply and analog signal transfer. The field input accepts the 4–20 mA loop signal while maintaining the required electrical separation between field and control sides.
CONTROL SYSTEM
PLC / DCS Analog Interface
Source or sink operation allows the output circuit to be adapted to different control-side analog interface arrangements. Source mode also provides a 1–5 V output through the internal 250 Ω resistor.
HART COMMUNICATION
Communication Access
The terminal arrangement includes connections intended for a HART resistor, supporting access for HART communicators while maintaining the signal-conditioning function.
CABINET INSTALLATION
Compact DIN-Rail Layout
The 12.5 mm housing is designed for compact control cabinet installation on a 35 mm DIN mounting rail, making the module suitable where panel space is limited.

SERIES / SYSTEM RELATION

KCD2-STC FAMILY POSITIONING

TARGET MODEL
KCD2-STC-Ex1
Hazardous-area transmitter power supply and isolated barrier for 2-wire SMART transmitters and current sources, with 4–20 mA or 1–5 V output capability.
RELATED VARIANT
KCD2-STC-Ex1.SP
A related KCD2-STC-Ex1 variant within the same transmitter power-supply family. Selection should be based on the exact connection and installation requirements of the intended replacement.
SAFE-AREA COUNTERPART
KCD2-STC-1
The KCD2-STC family also includes a safe-area signal-conditioning version. It is not an automatic substitute for the Ex variant because the intended field circuit and hazardous-area requirements differ.
Selection note: For a replacement, verify the exact part designation, field-side circuit type, output configuration, supply arrangement, terminal arrangement, and applicable hazardous-area requirements before installation.
PURCHASE SUPPORT

REQUEST KCD2-STC-EX

AMIKON SALES
Miya Zheng
Sales Manager

DELIVERY
3–5 Days
WARRANTY
12 Months
PACKAGING
Brand New
PAYMENT
T/T
DELIVERY WAY
E-packing / FedEx / EMS / TNT / DHL / UPS
INQUIRY
Part Number · Quantity · Destination · Required Date · Machine/System
AFTER-SALES
Return / Replace
01. Please contact us within 7 days if you have any question after you receiving the items.
02. The returned items has to be in its original condition, with a specific reason for the return. We will issue a return or replacement for your order after we received the returns.
03. The buyer is responsible for all the shipping cost incurred.
BUYER QUESTIONS

KCD2-STC-EX FAQ

Can KCD2-STC-Ex1 be used when the field transmitter is installed in a hazardous area?
Yes, the KCD2-STC-Ex1 is an associated apparatus with intrinsically safe field circuits. The field-side circuits are intended for suitable intrinsically safe devices, while the barrier itself is installed in the non-hazardous area. The exact installation must comply with the applicable Ex parameters and installation requirements.
Is KCD2-STC-Ex1 suitable for a 4–20 mA SMART transmitter with HART communication?
The device is designed for 2-wire SMART transmitters and supports bidirectional SMART communication. Its terminal arrangement includes connections for a HART resistor, allowing access for HART communicators while the analog signal is transferred to the control side.
When replacing a KCD2-STC-Ex1, does the 1–5 V output setting need to be checked?
Yes. The KCD2-STC-Ex1 can operate in source mode with either 4–20 mA or 1–5 V output. The 1–5 V function uses an internal 250 Ω resistor, so the receiving system and its expected signal format should be verified before replacement.
Does KCD2-STC-Ex1 require attention to the available field-loop voltage during replacement?
Yes. The field side provides at least 15 V at 20 mA and at least 18 V at 4 mA for the specified transmitter connection. The actual transmitter load, loop resistance, cable characteristics, and installation conditions should therefore be checked when selecting a replacement.
How should KCD2-STC-Ex1 be compared with KCD2-STC-Ex1.SP for a replacement order?
They belong to the same KCD2-STC-Ex1 transmitter power-supply family, but the exact variant designation should be matched before ordering. Check the complete part number, terminal arrangement, mounting requirements, field circuit, output configuration, and the intended application rather than treating the two designations as interchangeable.
