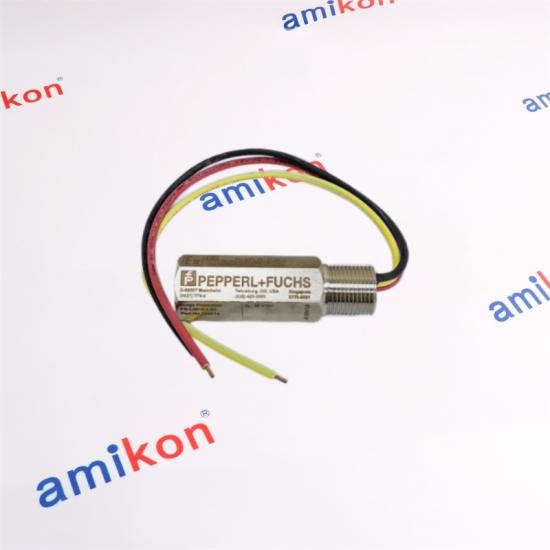

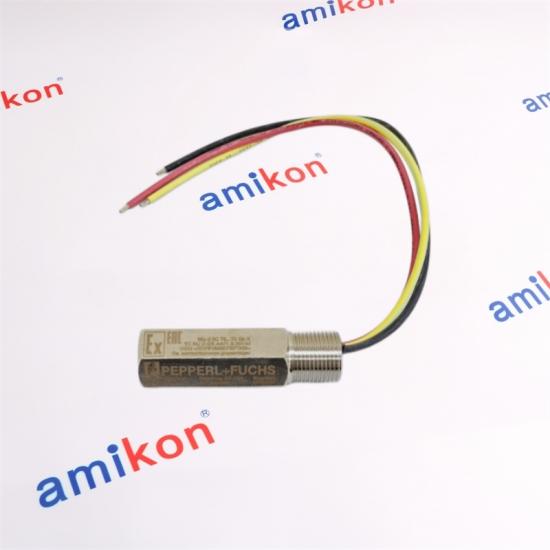

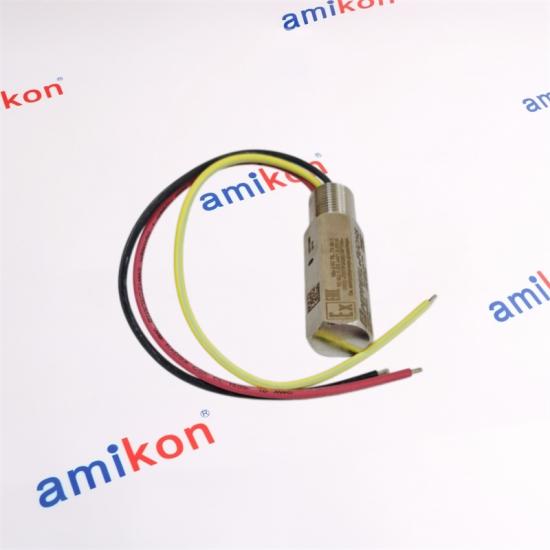

FS-LBF-I1.32Fieldbus Surge Protector · Ex ia · M20 × 1.5
A stainless-steel field-mounted surge protector designed for FOUNDATION Fieldbus H1 and PROFIBUS PA installations, with intrinsically safe operation for FISCO and Entity applications.
|
APPLICATION CORE
FOUNDATION Fieldbus H1
PROFIBUS PA Zone 1 FISCO / Entity |
|
01 / PROTECTION ARCHITECTURE
Built Around the Fieldbus Path
Surge diversion at the field installation
The FS-LBF-I1.32 is designed to divert surge energy toward earth through gas discharge tubes. This architecture is intended to protect connected field devices and control equipment from voltage surges and lightning-related transients.
|
⚡
FIELD CONNECTION LOGIC
The protector does not replace the requirements of the connected intrinsically safe circuit. Installation must follow the applicable hazardous-area requirements.
|
||||||||||
|
Product Family
F*-LBF-I1.32
|
Specific Version
FS-LBF-I1.32
|
Connection Thread
M20 × 1.5
|
Mounting
Screw mounting
|
|
Rated Voltage Ur
32 V
|
Rated Current Ir
550 mA
|
Nominal Discharge Current
10 kA per line / 10 kA total, 8/20 µs
|
Maximum Surge Current
10 kA, 8/20 µs
|
|
Protection Level
50 V line/line at 1 kV/µs
|
Protection to Earth
1.2 kV at 1 kV/µs
|
Reaction Time
Max. 1 ns line/line; max. 100 ns line/earth
|
Capacitance
25 pF line/line; 15 pF line/earth
|
|
Ambient Temperature
−50 ... +80 °C
|
Storage Temperature
−50 ... +85 °C
|
Housing
Stainless steel 1.4401 / AISI 316
|
Mass
160 g
|
|
Protection Degree
IP00 / IP67 when correctly installed
|
Core Cross Section
1.3 mm²
|
Fieldbus Standard
IEC 61158-2
|
Surge Protection Standard
IEC 61643-21
|
|
EX / APPROVAL PROFILE
Intrinsically Safe Field Protection
The FS-LBF-I1.32 is certified for intrinsically safe fieldbus applications and is intended for installation in hazardous area Zone 1.
|
|
|
FS-LBF-I1.32
Intrinsically safe · M20 × 1.5
The requested configuration for M20 × 1.5 field installation.
|
FN-LBF-I1.32
Intrinsically safe · 1/2" NPT
Same intrinsically safe protection family with a different connecting thread.
|
FS-LBF-D1.32
Flameproof · M20 × 1.5
Same M20 × 1.5 thread family, but a different protection concept.
|
FN-LBF-D1.32
Flameproof · 1/2" NPT
Flameproof version with 1/2" NPT connecting thread.
|
|
FIELD SIDE
Outdoor Junctions
The threaded housing is designed for field installation through the enclosure entry and is suitable for outdoor installation when correctly installed.
|
NETWORK SIDE
H1 / PA Segments
The protector is designed around the fieldbus electrical environment defined by IEC 61158-2 and supports FOUNDATION Fieldbus H1 and PROFIBUS PA.
|
GROUND PATH
Short & Solid
A solid ground connection with large cross-sections and short wiring is required for effective surge protection.
|
|
AMIKON INDUSTRIAL AUTOMATION
Need the FS-LBF-I1.32?
Send the part number, quantity, destination, required date and application details. Our sales team can help verify the requested configuration before order processing.
|
ORDER DETAILS
|
|
RETURN CARE
After-Sales
|
7-Day Contact: Please contact us within 7 days if you have any question after you receiving the items.
Return Condition: The returned items has to be in its original condition, with a specific reason for the return. We will issue a return or replacement for your order after we received the returns. Shipping: The buyer is responsible for all the shipping cost incurred. |
| 01 |
Can FS-LBF-I1.32 replace an existing fieldbus surge protector in a FOUNDATION Fieldbus H1 or PROFIBUS PA installation?
It can be considered when the existing application requires the same intrinsically safe F*-LBF-I1.32 protection concept and the field connection matches the FS version. For an FS-LBF-I1.32 replacement, the M20 × 1.5 connection and hazardous-area requirements should be checked before ordering.
|
| 02 |
Why does FS-LBF-I1.32 matter when the existing installation already has fieldbus surge protection?
Replacement compatibility depends on more than the surge-protection function. The thread, protection concept, hazardous-area certification, fieldbus application and grounding arrangement all affect whether the replacement is appropriate. FS-LBF-I1.32 is the M20 × 1.5 intrinsically safe version of the family.
|
| 03 |
Can FS-LBF-I1.32 be selected for a Zone 1 FISCO or Entity fieldbus installation?
Yes. The FS-LBF-I1.32 is certified Ex ia and its hazardous-area electrical limits include separate Entity and FISCO values. Entity values are Ui 30 V, Ii 550 mA and Pi 3 W; FISCO values are Ui 17.5 V, Ii 380 mA and Pi 5.32 W.
|
| 04 |
Does the FS-LBF-I1.32 require special attention to the grounding arrangement during replacement?
Yes. Effective surge protection depends on a solid ground connection. The manufacturer specifies large ground conductor cross-sections and short wiring as a basic requirement for effective protection. Grounding should therefore be checked as part of replacement work rather than treating the device as an isolated component.
|
| 05 |
What should be verified before ordering FS-LBF-I1.32 for an existing enclosure?
Confirm the M20 × 1.5 threaded version, the Ex ia protection concept, the intended FOUNDATION Fieldbus H1 or PROFIBUS PA application, the required hazardous-area arrangement and the available grounding path. If the existing component uses 1/2" NPT or a flameproof configuration, another F*-LBF variant may be required instead.
|
