MTL 5500 SERIES · SIGNAL INTERFACE

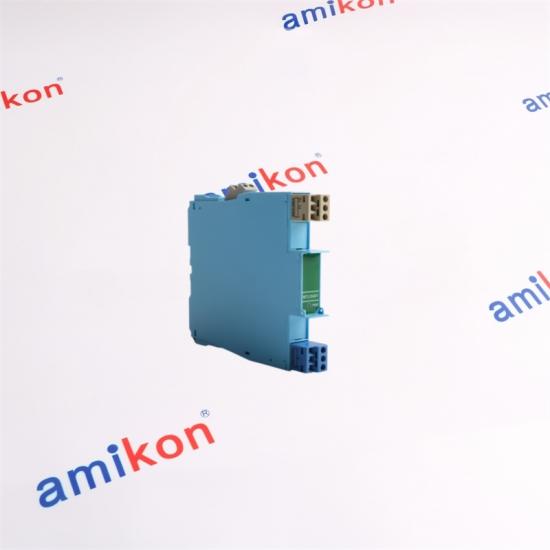

MTL5544D
Repeater Power Supply for 4–20 mA Transmitters
The MTL5544D is designed to energize a conventional 2- or 3-wire 4–20 mA transmitter located in a hazardous area and reproduce the current into safe-area circuits. Its fully floating transmitter supply and galvanic isolation create a clear separation between hazardous-area field wiring and safe-area signal circuits. The unit provides two safe-area output paths. Channel 1 supports HART communication for suitable 2-wire transmitters, while Channel 2 provides a conventional analogue output path without HART communication.
|
EATON / MTL
MTL5544D
4–20 mA
Repeater Power Supply
Hazardous Area → Safe Area
|
|
Core Electrical Characteristics
|
Output & HART Architecture
The MTL5544D reproduces the transmitter current into two safe-area output circuits. The output paths provide separation from the hazardous-area transmitter loop while retaining the 4–20 mA analogue signal. For a suitable 2-wire HART transmitter, Channel 1 provides a communication path for digital signals superimposed on the analogue current. Channel 2 is intended for conventional analogue use and does not support HART communication.
|
|
HAZARDOUS AREA
2 / 3-wire
4–20 mA transmitter |
→ |
MTL5544D
Floating transmitter supply
Galvanic isolation |
→ |
SAFE AREA
CH1: HART capable
CH2: analogue output |
|
Output Loading
Safe-area load resistance is specified up to 450 Ω at 20 mA and up to 360 Ω at 24 mA. The output resistance is greater than 1 MΩ.
|
Connection & Installation
|
| 1 | Current input | 2 | Transmitter supply +ve |
| 3 | Common | 7 | Channel 2 output +ve via 220 Ω; HART not supported |
| 8 | Channel 2 output −ve | 9 | Channel 2 output +ve |
| 10 | Channel 1 output +ve via 220 Ω for HART applications | 11 | Channel 1 output −ve |
| 12 | Channel 1 output +ve | 13 | Supply −ve |
| 14 | Supply +ve | — | Power supply: 20–35 V DC |
|
Environmental Envelope
|
Protection & Compliance
The MTL5544D is intended for hazardous-area signal interfacing and is associated with IECEx / ATEX applications. The product family is designed around galvanic isolation and EMC performance for industrial process applications.
|
The MTL5500 family covers a broad range of intrinsically safe galvanic interface functions. Within the repeater power supply group, the MTL5544D is suited to 4–20 mA transmitter loops where a hazardous-area transmitter must be powered while the signal is reproduced into safe-area circuits.
|
MTL5541
Repeater power supply family member
|
MTL5544D
4–20 mA transmitter interface with dual safe-area output paths
|
MTL5544S
Related repeater power supply configuration
|
MTL5575
Related MTL5500 signal-interface option
|
|
ENGINEERING PARTS SUPPORT
Need MTL5544D for your next maintenance window?
Send the part number, required quantity, destination and required date. Our sales team can assist with availability, commercial details and order coordination. |
|
| Delivery | 3–5 Days | Warranty | 12 Months | T/T Payment |
|
01 · Can MTL5544D replace an existing 4–20 mA repeater in a hazardous-area loop?
It can be considered when the existing interface requires a 2- or 3-wire 4–20 mA transmitter supply, safe-area signal repetition and compatible power, load and hazardous-area requirements. Before replacement, verify the transmitter wiring, output load, certification requirements and terminal arrangement rather than treating the model number alone as sufficient. |
02 · What should buyers verify before selecting MTL5544D for a HART loop?
The key purchasing point is the communication path: HART is supported on Channel 1 for suitable 2-wire transmitters, while Channel 2 does not support HART. The safe-area load must also remain within the specified resistance range so the analogue and communication functions can operate correctly. |
|
03 · Does MTL5544D provide enough output capacity for two safe-area loads?
The design provides two safe-area output paths, and the operating arrangement requires a suitable load to be present on both output channels. For a replacement project, check the actual receiving devices and their loop resistance before commissioning, especially where temporary test wiring is used. |
04 · Is MTL5544D suitable when panel space is limited?
The unit is designed for T-section 35 mm DIN rail mounting and has a width of approximately 15.8 mm, making its narrow form factor useful for dense interface assemblies. The complete panel arrangement should still allow the required wiring, ferrules, heat dissipation and installation clearances. |
|
05 · What makes MTL5544D useful for lifecycle replacement projects?
Its combination of a floating transmitter supply, galvanic isolation, 4–20 mA signal repetition and dual safe-area output paths allows one interface to serve both process-current distribution and downstream control-system requirements. For an exact replacement, compare the existing terminal wiring, power range, transmitter type, load resistance and HART requirement before ordering. |
|
|
