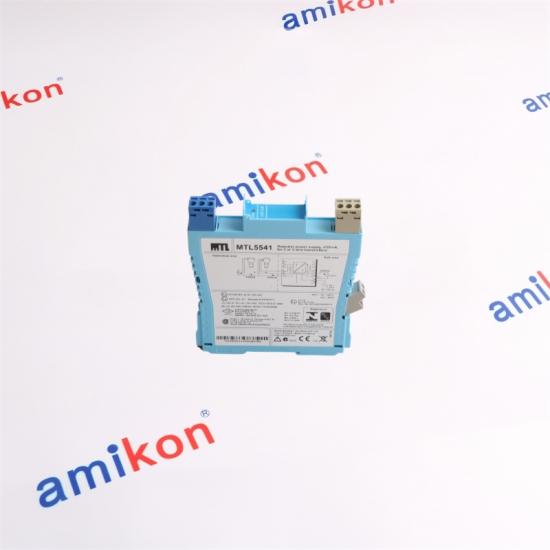

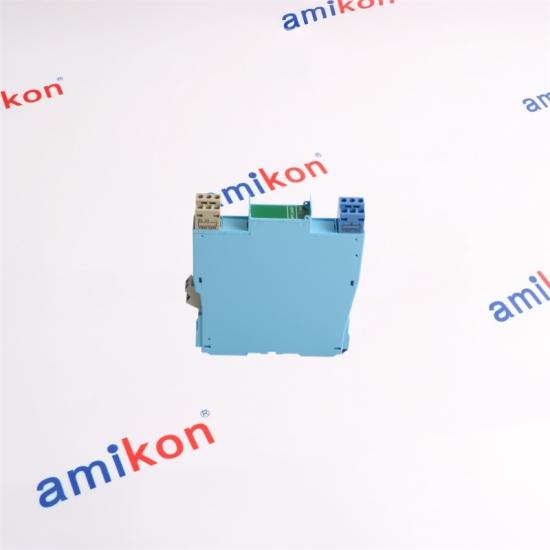

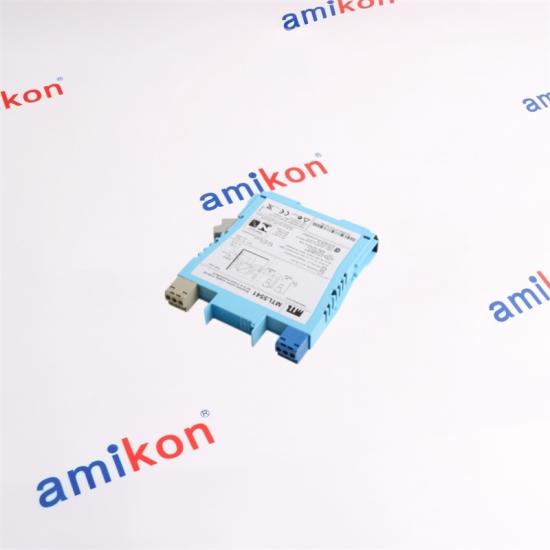

MTL5541
1-Channel 2/3-Wire Transmitter Repeater
The MTL5541 is a single-channel transmitter repeater designed for transferring a 4–20 mA process signal between hazardous-area transmitter circuits and safe-area control equipment.
1 CHANNEL 4–20 mA HART DIN RAIL
TECHNICAL CORE
Channel 1
Transmitter 2 / 3-wire
Supply 20–35 Vdc
Signal 4–20 mA
Isolation 250 V rms
Response <50 µs
Mounting 35 mm DIN rail
Compact 15.8 mm module width

01—03
SIGNAL ARCHITECTURE
MTL5541 Interface Path
01 / FIELD
Hazardous Area
Designed for suitable transmitter circuits using 2-wire or 3-wire arrangements.
Transmitter voltage: 16.5 V at 20 mA
›
02 / INTERFACE
Galvanic Isolation
The MTL5541 separates the signal interface from the power supply and transfers the process current to the receiving circuit.
<15 µA accuracy <50 µs
›
03 / CONTROL
Safe Area
The output provides a 4–20 mA signal for compatible process-control input circuits.
Load: 0–450 Ω @ 20 mA
TECHNICAL PROFILE
MTL5541 Operating Characteristics
Signal & Electrical
Input 0–24 mA
Safe-area output 4–20 mA
Supply voltage 20–35 Vdc
Current consumption 51 mA @ 24 V
Power dissipation 0.7 W @ 24 Vdc
HART Terminals 1 & 2
Isolation 250 V rms
Performance & Environment
Load @ 20 mA 0–450 Ω
Load @ 24 mA 0–360 Ω
Transfer accuracy <15 µA
Temperature drift <0.8 µA/°C
Response time <50 µs
Operating temperature −20 to +60 °C
Storage temperature −40 to +80 °C
Humidity 5–95% RH
FORM 01
Compact Housing
Length: 109.8 mm
Height: 118.8 mm
Width: 15.8 mm
Weight: 150 g
35 mm DIN-rail mounting
FORM 02
Panel Integration
The slim 15.8 mm housing supports high-density arrangement of MTL5500 interface modules inside industrial control panels.
Terminal connections support conductors up to 2.5 mm².
FORM 03
Process Interface
The MTL5541 is intended for compatible hazardous-area transmitter loops and safe-area process-control circuits.
Intrinsic Safety HART
MTL5500 FAMILY
Same-Series Selection
The MTL5500 family includes transmitter repeaters, current-sink variants, multi-channel interfaces and other process-control signal interfaces. The electrical function should be matched before selecting a replacement.
MTL5541A
Single-channel transmitter repeater for passive-input applications.
MTL5541AS
Passive-input transmitter repeater with current-sink capability.
MTL5541S
Single-channel transmitter repeater with current-sink output configuration.
MTL5544
Two-channel transmitter repeater for higher channel density.
DIRECT SUPPORT
Looking for MTL5541?
Send the complete part number, quantity, destination and required date for availability and order coordination.
SALES MANAGER
Miya Zheng
sales@amikon.cn
+86 180 2077 6792
 EMAIL SALES WHATSAPP
Delivery: 3–5 Days   |   Warranty: 12 Months   |   Packaging: Brand New   |   Payment: T/T
PURCHASING CHECKPOINTS
MTL5541 FAQ
Q1 · Is MTL5541 a suitable replacement for another single-channel transmitter interface?
MTL5541 can be considered when the existing application requires a single-channel 2/3-wire transmitter repeater with a 4–20 mA safe-area output. Replacement should be checked against the transmitter wiring, loop supply, receiving-side load, HART arrangement and hazardous-area requirements rather than by physical appearance alone.
Q2 · Can MTL5541 preserve HART communication in a transmitter loop?
HART communication is supported through terminals 1 and 2. The complete loop should still be checked for compatible transmitter configuration and receiving-side load. The specified load capability is 0–450 Ω at 20 mA and 0–360 Ω at 24 mA.
Q3 · What should be compared before ordering MTL5541 for an existing installation?
Compare the complete part number, channel count, transmitter type, 2-wire or 3-wire connection, signal range, receiving-loop load, power supply and hazardous-area requirements. Particular attention should be given to source/sink behavior when comparing MTL5500 variants.
Q4 · Does MTL5541 work well where cabinet space is limited?
The 15.8 mm module width allows MTL5500 interface modules to be arranged at high density on a 35 mm DIN rail. Cabinet design should still account for wiring access, terminal clearance and the requirements of the complete installation.
Q5 · When should MTL5541 be selected instead of another MTL5500 variant?
MTL5541 is intended for a one-channel 2/3-wire transmitter repeater arrangement. Other family variants provide different input or output configurations, including passive-input and current-sink arrangements, while MTL5544 provides two transmitter channels. The correct choice depends on the electrical function required by the existing loop.
AMIKON / GLOBAL AUTOMATION


Exclusive
Multilingual
Support Team

Supporting customers across regions, industries and automation platforms.
01 / SUPPORT
PARTS / SERVICE / CONNECTION
Connecting Automation
Through Parts
16+
YEARS
551K+
PARTS
128
MANUFACTURERS
Customized Customer Relation Management and Order Tracking System
02 / GLOBAL NETWORK
WORLDWIDE SUPPLY
Difficult to find a part?
Let's connect.

We continue to innovate and strive to improve the world's automation parts supply level.
03 / CONTACT



AMK / 2026 / 09


No additional charges, handling charges or hidden charges are incurred.
No matter where the customer is or how difficult it is to find parts, we hope to connect customers all over the world through parts.
Our business scope is wide, and we can provide all kinds of parts for customers around the world.
AFTER-SALES
Return / Replacement
Please contact us within 7 days if you have any question after you receiving the items.
The returned items has to be in its original condition, specific reason for the return, we will issue a return or replacement for your order after we received the returns.
The buyer is responsible for all the shipping cost incurred.
MTL5541 · Eaton MTL5500 Series
Industrial Automation Parts Supply · Worldwide Customer Support
sales@amikon.cn · +86 180 2077 6792
