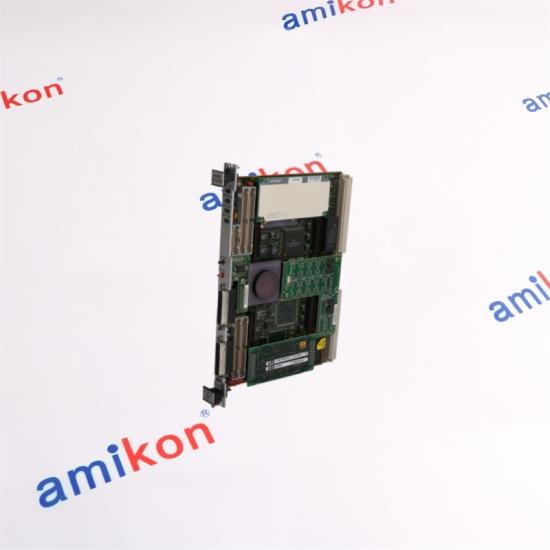

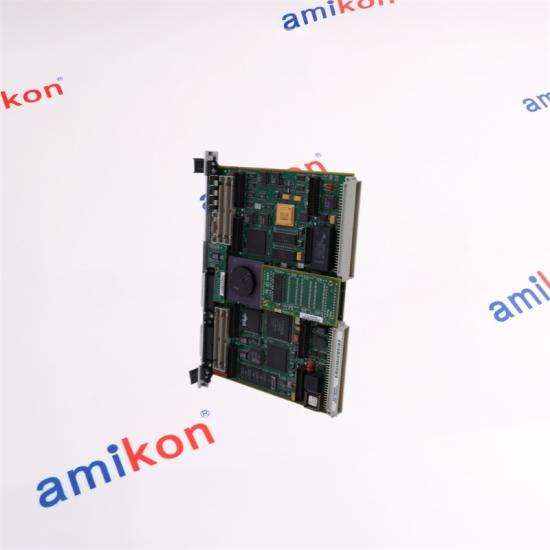

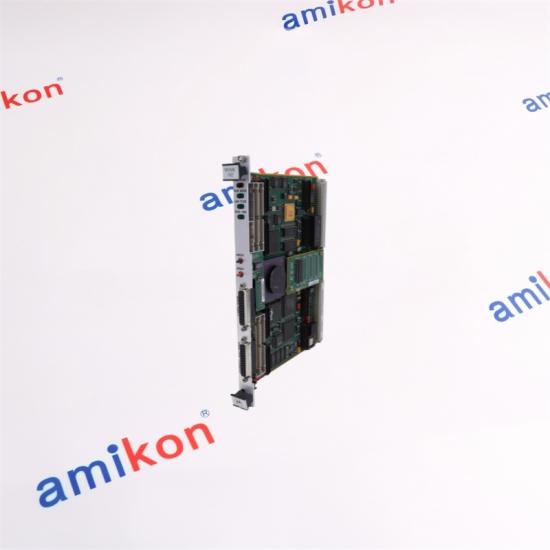

MVME162-212

Motorola MVME162LX Embedded Controller
25 MHz MC68LC040 · 4 MB DRAM · Ethernet · 2 IndustryPack Ports

CPU
MC68LC040
25 MHz
MEMORY
4 MB DRAM
Shared memory architecture
NETWORK
ETHERNET
82596CA controller
EXPANSION
2 × IP
IndustryPack interfaces
01 / BOARD CONCEPT
VME
CONTROL
CORE


The MVME162-212 is a 6U VME embedded controller built around a 25 MHz MC68LC040 processor. Its configuration combines 4 MB DRAM, Ethernet connectivity and two IndustryPack interfaces for embedded control architectures requiring a compact VME computing core.

LEGACY SYSTEM ROLE
VME processor board for embedded control, communication and IndustryPack-based I/O expansion.

HARDWARE PROFILE
A COMPACT VME COMPUTING NODE

The board combines processor, memory, VMEbus resources, serial communication, Ethernet, IndustryPack expansion, nonvolatile storage and supervisory functions on a single VME module.

PROCESSING
MC68LC040 / 25 MHz
8 KB cache · MMU
NETWORKING
Ethernet / 82596CA
32-bit local-bus DMA
LOCAL MEMORY
4 MB DRAM
128 KB battery-backed SRAM
EXPANSION
2 IndustryPack Ports
Front-panel I/O access
02 / ARCHITECTURE TRACE
MVME162-212 HARDWARE PATH
PROCESSOR
MC68LC040
25 MHz · 32-bit

VME CORE
VMEchip2
A16–A32 · D08–D64

PERIPHERALS
I/O FABRIC
Ethernet · Serial · IP
CPU PATH
MC68LC040

25 MHz enhanced 32-bit processor with 8 KB cache and memory management unit. The MC68LC040 configuration does not include the floating-point unit found in the MC68040.
MEMORY PATH
DRAM
4 MB shared DRAM		 SRAM
128 KB battery-backed
FLASH
1 MB on 2xx/3xx models		 NVRAM
8 KB with TOD clock
NETWORK PATH
82596CA

Ethernet controller with local-bus DMA capability. The -212 configuration is the Ethernet-only member of the 25 MHz MC68LC040 4 MB group.
SERIAL I/O
4 PORTS

Four serial communication ports using EIA-232-D DTE configuration.
INDUSTRYPACK EXPANSION
2 × IP PORTS

Two IndustryPack interfaces provide a compact path for modular peripheral I/O. The IP interfaces occupy one VME slot while extending front-panel I/O capability.
TIMING
6 × 32-BIT

Six real-time 32-bit timers with 1 μs resolution plus watchdog supervision.
VME ADDRESSING
A16 – A32
DATA WIDTH
D08 – D64
DMA
4 CHANNELS
SYSTEM CONTROL
JUMPERABLE
BOARD FORMAT
Double-high VME
BOARD HEIGHT
233.4 mm
BOARD DEPTH
160.0 mm
FRONT PANEL HEIGHT
261.8 mm
WIDTH
19.8 mm
+5 V
3.5 A typical / 4.5 A maximum		 +12 V
100 mA maximum		 -12 V
100 mA maximum		 Operating
0 °C to +70 °C exit air with forced-air cooling
Storage temperature: -40 °C to +85 °C · Relative humidity: 5%–90%, noncondensing
03 / FAMILY POSITION
MVME162LX 200 / 300 SERIES
MVME162-210
4 MB DRAM

No SCSI or Ethernet in the listed configuration.
MVME162-211
4 MB DRAM

SCSI configuration.
MVME162-212
4 MB + Ethernet

25 MHz MC68LC040 with Ethernet and two IndustryPack ports.
MVME162-213
4 MB + SCSI

SCSI and Ethernet configuration.
MVME162-220
MC68040

25 MHz MC68040 family member without SCSI or Ethernet.
Replacement checkpoint: Before substituting a board within the MVME162LX family, match processor type, DRAM configuration, Ethernet/SCSI presence, IndustryPack capability and the VMEbus arrangement rather than relying on family name alone.
VME
PURCHASE / REPLACEMENT
SOURCE THE RIGHT BOARD

For quotation or replacement checking, provide the complete part number and the operating system context. This helps match the MVME162-212 configuration with the installed VME environment.
EMAIL
sales@amikon.cn 		PHONE / WHATSAPP
86-18020776792
SALES MANAGER Miya zheng
Delivery
3–5 days		 Warranty
12 months		 Packaging
Brand New		 Delivery Way
E-packing / FedEx / EMS / TNT / DHL / UPS		 Payment Term
T/T
QUOTATION CHECKPOINT
Please provide: Part Number · Quantity · Destination · Required Date · Machine/System
RETURN / REPLACEMENT ARRANGEMENT

Please contact us within 7 days after receiving the items if any issue occurs. Returned items should remain in their original condition, with a specific reason provided for the return. A return or replacement can be arranged after the returned items are received. The buyer is responsible for shipping costs arising from the return.

04 / BUYER CHECKPOINTS
MVME162-212 / FAQ
Can MVME162-212 replace another MVME162LX board without changing the VME application?

Not automatically. MVME162LX variants differ in processor type, DRAM arrangement and optional SCSI or Ethernet functions. For a replacement, the installed software environment, VMEbus role, memory configuration and I/O requirements should all match the target board.
Does MVME162-212 provide Ethernet while retaining IndustryPack expansion?

Yes. The -212 configuration combines Ethernet with two IndustryPack interfaces. This combination distinguishes it from the -210 configuration, which is specified without SCSI or Ethernet, and from the -211 configuration, which adds SCSI instead.
What should be checked when the Ethernet function of MVME162-212 is required by an existing system?

Check the board revision, Ethernet controller arrangement, front-panel connector configuration, VMEbus setup and the software environment that initializes the Ethernet hardware. The -212 uses the 82596CA Ethernet controller with local-bus DMA capability.
Is the 4 MB DRAM configuration of MVME162-212 suitable for a legacy application that used a larger MVME162LX memory option?

The -212 is the 4 MB DRAM Ethernet configuration. If the existing application depends on a larger memory mezzanine, the replacement should be matched to that memory requirement rather than assuming that another 162LX model is equivalent.
Does MVME162-212 include the nonvolatile resources needed by a legacy controller application?

The MVME162LX configuration includes 128 KB battery-backed SRAM, 8 KB NVRAM with a time-of-day clock, and 1 MB Flash on the 2xx/3xx models. These resources are separate from the 4 MB DRAM used for shared program and operating memory.
