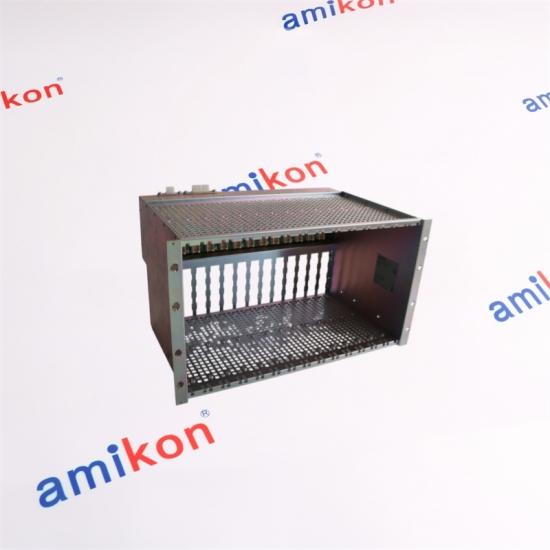

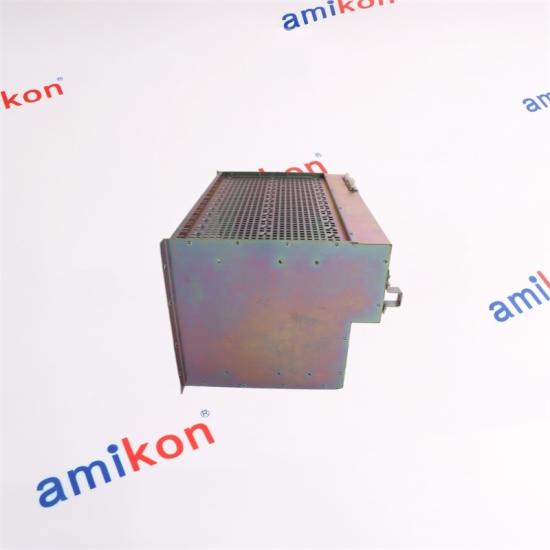

ICS Triplex T8300C Trusted Expander Chassis

ICS Triplex T8300C
ICS Triplex T8300C
ICS Triplex T8300C

ICS Triplex T8300C Trusted Expander Chassis

Calculate shipping
Quotation Request

TRUSTED EXPANSION SYSTEM
T8300C
EXPANDER CHASSIS

Trusted Expander Chassis forming the mechanical and electrical platform for the Trusted expansion system.
20–32
Vdc

20 A
FUSE
04
KEY PARAMETERS
SUPPLY 20–32 Vdc
EXTERNAL FUSE 20 A advised
PRODUCT TYPE Expander Chassis
EXPANSION PLATFORM
The chassis provides the physical and electrical infrastructure required for Trusted expansion modules.
◆ ━ ◆ ━ ◆
T8300
AMIKON INDUSTRIAL AUTOMATION
We have a wide range of brands and products for various industries, we provide services to tens of thousands of customers around the world.
✦ SALES MANAGER: MIYA ZHENG ✉ sales@amikon.cn ☎ 86-18020776792
○ ◆ ○ ◆ ○





TRUSTED SAFETY SYSTEM / EXPANDER CHASSIS


ICS Triplex T8300C

Trusted Expander Chassis
SYSTEM ROLE

The T8300C is the Trusted Expander Chassis used to house Trusted Expander Processors and Trusted I/O modules. Its integrated Inter-Module Bus backplane provides the electrical interconnection between modules within the expander chassis, forming the physical communication layer for the installed Trusted modules.
T8300C / CORE DATA
Chassis type Trusted Expander
I/O positions 12 × single-width
Processor positions 2 × single-width
Backplane IMB
Cooling Convection
TRUSTED PLATFORM
EXPANSION / I/O CAPACITY
01 / ARCHITECTURE

Built Around the Trusted Expander Backplane


IMB / BACKPLANE

Electrical Interconnection

The chassis contains a single printed-circuit-board Inter-Module Bus backplane. It provides the electrical interconnections between the modules installed in the Trusted Expander Chassis and supports the physical-layer communication path between them.
MODULE CAPACITY
12 + 2
12 single-width Trusted I/O positions + up to 2 single-width Trusted Expander Processor positions.
PROCESSOR POSITIONS
The two dedicated Trusted Expander Processor positions are pre-configured. They occupy chassis slots 13 and 14, with the left-hand position designated as slot 13.

Triplicated Bus Connections

The chassis bus connections are triplicated, while the external +24 Vdc power supply is provided through a dual-redundant arrangement. The backplane provides two external power input connections so redundant power can be distributed to the modules in the chassis.
02 / TECHNICAL PROFILE

T8300C at a Glance

The chassis is designed around the Trusted expansion architecture, with dedicated processor positions, single-width I/O positions, configurable system identification, external redundant power inputs and multiple field-connection options.
Parameter T8300C Specification
Voltage range 20 Vdc to 32 Vdc
External fuse 20 A
Connectors 14 × DIN 41642 male
Copper communication distance 30 m using TC-301 copper cable
Fibre communication distance 10 km using fibre converters
Operating temperature 0 °C to +60 °C
Storage / non-operating temperature -25 °C to +70 °C
Relative humidity 10% to 95%, non-condensing
Dimensions H × W × D 268 × 483 × 312 mm
Weight 5 kg
03 / CONFIGURATION

System-Level Integration



The T8300C works as part of the Trusted expansion architecture rather than as an isolated chassis. Physical slot arrangement and the corresponding system layout need to agree.
01
System ID
Three 4-position DIP switches provide the chassis system identification setting from 0 to 15.
02
Expander Interface
Expander chassis are connected to the controller through the Trusted Expander Interface architecture.
03
Physical Layout
The configured chassis and module arrangement must correspond to the actual physical system.

For frame installation, the chassis requires 90 mm spacing between chassis to assist convection cooling. The chassis can be installed in a swing-frame or fixed-frame arrangement; rear panel mounting can be achieved with the T8380 panel mounting kit.
FIELD CONTEXT
04 / APPLICATION & MAINTENANCE

Where the T8300C Becomes Important

Expansion of Trusted I/O

When a Trusted controller requires additional I/O positions, the expander chassis provides the physical space for Trusted I/O modules and Expander Processors while retaining the Trusted IMB architecture.

Replacement Planning

For a chassis replacement, the key checks are the complete T8300C designation, physical slot arrangement, connector configuration, system identification settings, connected Expander Processor arrangement, power connections and installed I/O modules. A chassis change should preserve the intended Trusted system configuration.

A practical fault scenario is a chassis-level issue affecting module interconnection, power distribution or expander communication. Because the IMB backplane and redundant external power arrangement are integral to the chassis architecture, replacement planning should consider the complete installed configuration rather than treating the chassis as a generic empty rack.
05 / TRUSTED SERIES

Related Trusted Architecture

T8100C
Trusted Controller Chassis
T8111C
Trusted TMR Processor
T8310C
Trusted Expander Processor
T8311C
Trusted Expander Interface
The T8300C is the chassis layer of this architecture: it provides the physical positions and backplane interconnection required for the Trusted expander section.
GET A QUOTE

T8300C Purchase & Availability

For an accurate quotation, please send the complete part number together with the system details required for model matching.

ORDER DETAILS
Delivery: 3–5 days
Warranty: 12 months
Condition / Packing: Brand new
Delivery way: E-packing / FedEx / EMS / TNT / DHL / UPS
Payment term: T/T
PLEASE INCLUDE THESE FIVE ITEMS IN YOUR INQUIRY
Part Number Quantity Destination Required Date Machine/System
06 / BUYER QUESTIONS

T8300C FAQ


01
Can T8300C accommodate a larger I/O requirement without changing the chassis architecture?
The T8300C provides up to 12 single-width Trusted I/O module positions and up to two single-width Trusted Expander Processor positions. If the required module count exceeds this physical capacity, additional Trusted expansion architecture needs to be considered rather than overloading one chassis.
02
When replacing T8300C, why should the physical slot arrangement be checked before ordering?
The processor positions are dedicated to slots 13 and 14, while the remaining positions accommodate Trusted I/O modules. The installed module arrangement, backplane configuration and system layout therefore need to match the replacement chassis arrangement.
03
Does T8300C support long-distance expander communication for separated equipment areas?
Yes, the Trusted T8300 architecture supports up to 30 m with TC-301 copper cable. With the applicable fibre converters, the stated maximum expander communication distance is 10 km. The actual installation must use the appropriate Trusted communication arrangement.
04
What should be checked if T8300C replacement is associated with an expander communication fault?
Check the chassis system identification settings, the three DIP-switch address settings, the Expander Processor arrangement, connected Expander Interface path and physical communication connections. The three chassis address settings must agree; an incorrect setting can cause an error condition.
05
Why is the 90 mm spacing requirement important when installing T8300C?
The T8300C uses convection cooling through the chassis. A minimum 90 mm space between chassis on a frame is specified to assist the cooling process. This should therefore be considered when replacing or adding chassis in a crowded installation.
