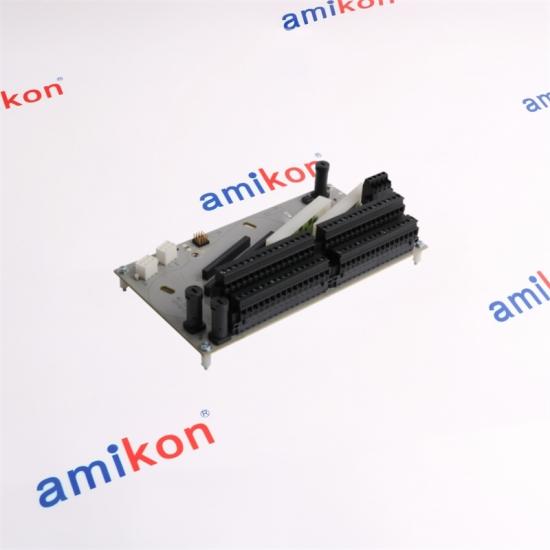

Honeywell DC-TDIL01 51307780-176 Digital Input 24V I/O Termination Assembly

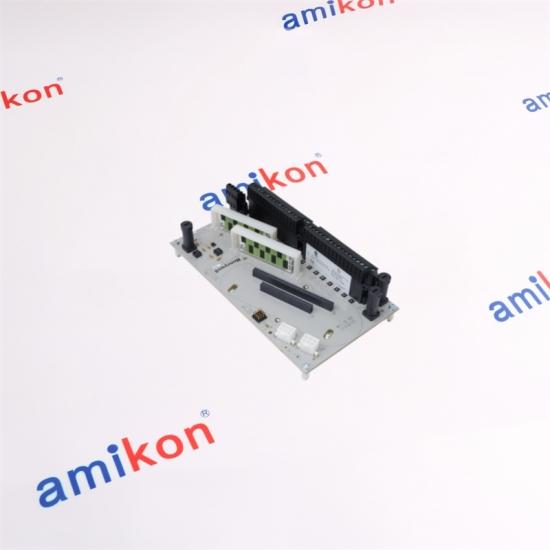

Honeywell DC-TDIL01 51307780-176
Honeywell DC-TDIL01 51307780-176
Honeywell DC-TDIL01 51307780-176

Honeywell DC-TDIL01 51307780-176 Digital Input 24V I/O Termination Assembly

Calculate shipping
Quotation Request
HONEYWELL DC-TDIL01 51307780-176
SERIES C I/O
Digital Input
24V IOTA





Non-redundant input termination assembly
KEY PARAMETERS
01　Input Type
24 V digital input IOTA
02　Configuration
Non-redundant
03　Associated IOM
DC-PDIL51
✦ International Delivery on the Day
◈ Quick Response Support
◎ Intercontinental Cooperation Network
Sales Manager: Miya zheng
✉ Email Us ☎ WhatsApp Contact QR code
24 V DC INPUT IOTA

DC-TDIL01

51307780-176
32 DI
EXACT ROLE
Honeywell DC-TDIL01 is a non-redundant 24 V DC digital input IOTA used with compatible Series C digital input modules. It terminates field wiring and carries discrete input signals to the IOM. This execution is associated with the DC hardware variant; its coating, module pairing, cabinet environment and exact order number must be retained during replacement.
02 / FUNCTIONAL DESCRIPTION

Installed Role in the Experion Architecture


DC-TDIL01 provides the field terminal, routing and carrier functions for a 24 V DC digital input assembly. The companion IOM senses and processes the states. Selection therefore depends on the IOTA and IOM combination, non-redundant topology, supported system release and field wiring arrangement.
PRODUCT SUPPORT: MIYA ZHENG EMAIL: SALES@AMIKON.CN WHATSAPP: 86-18020776792
03 / TECHNICAL SPECIFICATIONS

Verified Configuration


Product role 24 V DC digital input IOTA
Architecture Non-redundant
Channel relationship 32-channel digital input arrangement
Compatible IOM family PDIL digital input module family as supported by the installed release
Input class Low-voltage discrete input, 24 V DC
Isolation location Optical isolation is provided in the companion IOM
Nominal IOTA size 9 inches
System family Experion PKS Series C I/O
Hardware execution DC variant; verify coating and cabinet requirement
Order number 51307780-176
04 / COMPATIBILITY & RELATED MODELS

Select by Function, Redundancy and Hardware Execution


IDENTITY ROLE OR DIFFERENCE SELECTION POINT
DC-TDIL01   THIS MODEL 24 V DC DI IOTA, non-redundant, DC execution This model
DC-TDIL11 24 V DC DI IOTA, redundant Choose only for the matching redundant arrangement
CC-TDIL01 Coated 24 V DC DI IOTA, non-redundant Different environmental execution; verify substitution approval
CC-TDIL11 Coated 24 V DC DI IOTA, redundant Different coating and redundancy selection
CC-PDIL01 32-channel 24 V DC digital input IOM Compatible module family for the input assembly
05 / MODEL COMPARISON & REPLACEMENT GUIDE

Five Checks Before Changeover


01
Confirm 51307780-176 and the required DC hardware execution.
02
Match the IOM family, non-redundant topology and supported Experion release.
03
Record terminal assignments, field commons, polarity and channel configuration.
04
De-energize field wiring and inspect the carrier and connector before installation.
05
Prove every input state, controller indication, channel diagnostic and configured alarm after replacement.

AMIKON INDUSTRIAL AUTOMATION SUPPLY
20 Years of Responsive Global Support
GLOBAL COOPERATION
Experienced coordination for current and discontinued automation parts.
 CAREFUL CHECKING
Part number, quantity and outward condition coordinated before dispatch.
 URGENT DELIVERY
Responsive international shipping support helps reduce downtime.
06 / TECHNICAL FAQ

Five Purchase and Replacement Questions


01
Is DC-TDIL01 the same as CC-TDIL01?
They perform the same basic 24 V DC input termination role, but the hardware execution differs. Match coating and cabinet requirements before substitution.
02
Can DC-TDIL01 be used in a redundant input pair?
It is the non-redundant IOTA. Use the specified redundant IOTA and matching assembly when redundancy is required.
03
Does DC-TDIL01 process the input states?
The IOTA terminates and routes field signals; the companion digital input IOM performs signal processing and diagnostics.
04
What must be recorded before replacing DC-TDIL01?
Record the full order number, IOM type, terminal map, polarity, field power, channel configuration and system release.
05
How is DC-TDIL01 commissioned after replacement?
Energize safely, stimulate each field input, confirm the controller state and diagnostics, and verify alarm and interlock behavior.
07 / RECOMMENDED MODELS

Industrial Automation Parts


A-4114-4150-01 140ACO13000 330102-00-12-10-01-05 KC4011X1-BW1
ES21714-014 1747-M12 D8501 DW-20 DS100 DSN100
RJ45 440-35M PR9268/201-000 800T-H33D1 AN-X2-AB-DHRIO
A3SSL-1204-13 PR6424/000-030 H-103-2L 5X00300G02
X20SLX910 KJ4006X1-BD1 CC-SDOR01 51308380-175 592WA-13ST
C98043-A1603-L11 6SE7090-0XX87-4AH0 MVI69L-MBS KC4011X1-BZ1
BGS-DL10CN NX-ID6142-5 ST201M-K2 33-0941D
571-0065-05 A5F00111301-008 FC-QPP-0001 V1.3 851020-120VAC
D95574 S96080 FM19856 CPC-115005 PR6423/11R-131
DC-TPOX01 51307770-176 7ML1033-1AA00-2A E3S-AD32 MVME55006E-0161R
17L65104S-LW4 330881-28-04-265-00-02 U2490-1 3CB8260 C8737-1
CC-TAIX61 51307077-175 TG111-HP3NZRL A6735013A IG6083
6GK1900-0KB00-0AC0 G1115KRRB 1018-75-011 A393.CG-20
MC-TDID52 51304441-275 FC-SDI-1624 571-200-20 11-312E-06-HP
PR6424/003-130 330103-02-08-10-02-CN PK602HK001 289041 H19A
08 / ORDERING INFORMATION

Price, Availability and Return Review



For an exact-match quotation, send the complete model, part number, quantity, installed companion hardware, required revision and destination.

SALES MANAGER: MIYA ZHENG EMAIL: SALES@AMIKON.CN WHATSAPP: 86-18020776792
Contact us within seven days if a concern appears after receipt. Return items in original condition and state the reason for review; refund or replacement follows receipt and inspection. Return-related shipping charges remain the buyer's responsibility.
Hot Tags : Honeywell DC-TDIL01 51307780-176 Termination Assembly DC-TDIL01 51307780-176 DC-TDIL01 datasheet DC-TDIL01 PDF DC-TDIL01 manual
