HONEYWELL
CC-TPOX01
|
PROFIBUS DP / GATEWAY BASE

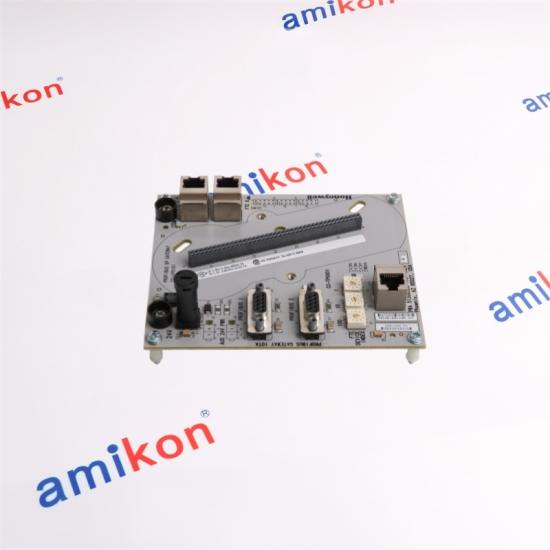

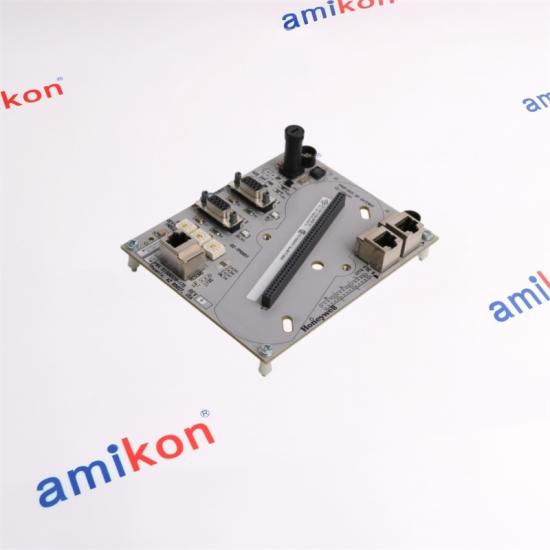

PROFIBUS DP Gateway IOTA
|
| CC-TPOX01 is the I/O terminal assembly used as the hardware base for the Honeywell C300 PROFIBUS DP Gateway. It provides the mounting, power and field-network connection layer that allows the gateway module to exchange cyclic process data between a PROFIBUS DP segment and the C300 control environment. |
ORDER IDENTITY
CC-TPOX01
P/N: 51306528-175
Experion PKS C300 / Series 8 PROFIBUS DP / GATEWAY BASE |
| ◆ 01 Physical IOTA base for the PROFIBUS DP Gateway |
◇ 02 Connects the gateway platform to C300 infrastructure |
✦ 03 Provides the installed termination and connector arrangement |
✧ 04 Supports plant PROFIBUS DP integration through the matched gateway assembly |
| Product type | PROFIBUS DP Gateway IOTA / base |
| Catalog number | CC-TPOX01 |
| Part number | 51306528-175 |
| Controller environment | Honeywell Experion PKS C300 |
| Gateway form factor | Series 8 |
| Fieldbus | PROFIBUS DP |
| Typical network connector | 9-pin D-sub on the installed gateway arrangement |
| Gateway data rate | 9.6 kbit/s to 12 Mbit/s, dependent on matched gateway configuration |
| Process data scope | Up to 128 bytes input and 128 bytes output for the gateway platform |
| Nominal cabinet supply | 24 VDC installation class |
| Mounting role | Dedicated IOTA beneath the matching gateway module |
| Selection rule | Match IOTA, gateway module, project release and network design |
| C300 Controller | → | Series 8 Infrastructure | → | PROFIBUS Gateway Module | → | CC-TPOX01 IOTA | → | PROFIBUS DP Segment |
| Sales manager: Miya Zheng | Email: sales@amikon.cn | WhatsApp: 86-18020776792 |
| MODEL | RELATIONSHIP | SELECTION POINT |
| CC-TPOX01 | This model | PROFIBUS DP Gateway IOTA / base |
| 51306528-175 | Exact order identity | Retain full part number when purchasing |
| PROFIBUS Gateway Module | Mating active module | Must match the installed C300 gateway configuration |
| PROFIBUS DP network | Field network | Confirm address, baud rate, termination and connector |
| Treat CC-TPOX01 as an IOTA, not as a stand-alone controller or ordinary I/O card. Confirm the mating gateway module, cabinet slot, power connector, PROFIBUS cable, shield, segment termination and project release. Preserve the installed node address and network parameters during replacement. | Return support Contact us within 7 days if an issue appears after delivery. Keep the item in original condition and provide the reason. Refund or replacement follows receipt and inspection; return freight is paid by the buyer. |
| Q1 | Is CC-TPOX01 the active PROFIBUS gateway module? No. It is the gateway IOTA/base and must be used with the matching active gateway module. |
| Q2 | What must match when replacing CC-TPOX01? Confirm part number 51306528-175, the mating gateway, Series 8 installation, connectors and cabinet wiring. |
| Q3 | Can CC-TPOX01 replace a standard Series C I/O IOTA? No. Its physical and electrical role is specific to the PROFIBUS DP Gateway arrangement. |
| Q4 | What network checks follow CC-TPOX01 installation? Verify connector seating, shield bonding, termination, node address, baud rate and cyclic data exchange. |
| Q5 | Does CC-TPOX01 require separate configuration? Gateway parameters reside in the control and PROFIBUS engineering configuration; preserve that configuration during hardware service. |
