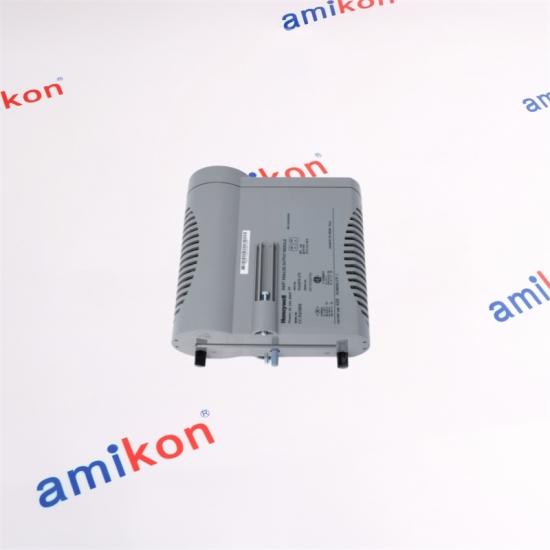

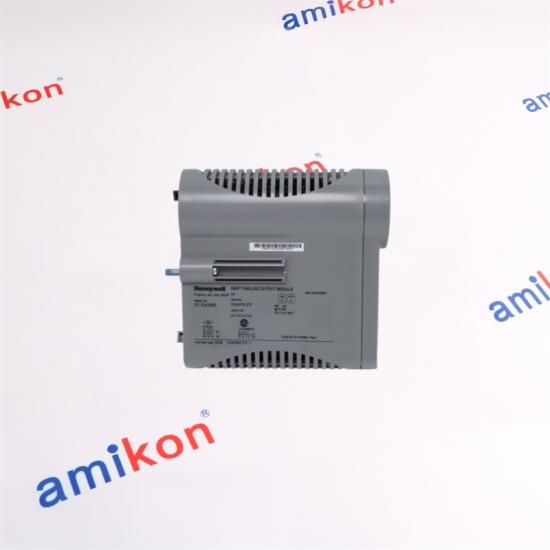

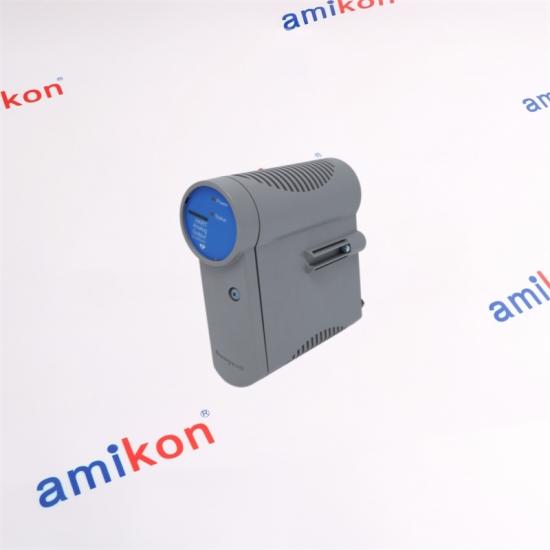

HONEYWELL EXPERION PKS SERIES C
CC-PAOH51
16-Channel HART Analog Output Module
|
|||
|
| CC-PAOH51 is a Series C high-level analog output module that delivers sixteen independently controlled 4-20 mA signals to valve positioners, actuators, recorders and indicating devices. HART communication supports field-device status and configuration while channel diagnostics assist maintenance teams. |
ORDER IDENTITY
CC-PAOH51
P/N: 51410070-275
Experion PKS Series C HART / 4-20 mA / 16 CHANNELS |
| ◆ 01 16 independently controlled constant-current outputs |
◇ 02 HART status and configuration communication |
✦ 03 Open-wire detection with channel soft-failure reporting |
✧ 04 Per-channel FAILOPT action for hold-last-value or configured safe value |
| Output channels | 16 |
| Signal range | 4-20 mA; directly settable to 0 mA or 2.9-21.1 mA |
| Calibrated accuracy | +/-0.35% of full scale at 25 C |
| Current linearity | +/-0.05% of full scale nominal |
| Resolution | +/-0.05% of full scale |
| Temperature drift | 0.005% of full scale per C |
| Maximum resistive load | 800 ohms with 22-28 VDC supply |
| Maximum compliant voltage | 16 V |
| Maximum open-circuit voltage | 22 V |
| Output ripple | Less than 100 mV peak-to-peak across 250 ohms |
| Redundancy | Optional with the matching redundant IOTA |
| Non-redundant IOTA | CC-TAOX51, 6-inch |
| Redundant IOTA | CC-TAOX61, 12-inch |
| C300 Controller | → | Series C I/O Link | → | CC-PAOH51 | → | CC-TAOX51 / CC-TAOX61 | → | HART Field Devices |
| Sales manager: Miya Zheng | Email: sales@amikon.cn | WhatsApp: 86-18020776792 |
| MODEL | RELATIONSHIP | SELECTION POINT |
| CC-PAOH51 | This model | 16-channel 4-20 mA output with HART |
| CC-PAON01 | Related output module | Confirm HART and lifecycle requirements |
| CC-TAOX51 | Non-redundant IOTA | 6-inch installation |
| CC-TAOX61 | Redundant IOTA | 12-inch installation |
| Confirm the IOTA type, redundancy arrangement, field supply, loop resistance and channel FAILOPT configuration. De-energize field circuits before seating or removing hardware. Validate each loop at a controlled current and confirm HART communication before returning the process to service. | Return support Contact us within 7 days if an issue appears after delivery. Keep the item in original condition and provide the reason. Refund or replacement follows receipt and inspection; return freight is paid by the buyer. |
| Q1 | Does CC-PAOH51 support HART communication? Yes. It supports HART device status and configuration functions on its analog output channels. |
| Q2 | Which IOTA is used with CC-PAOH51? Use CC-TAOX51 for a non-redundant installation or CC-TAOX61 for a redundant arrangement. |
| Q3 | How many outputs does CC-PAOH51 provide? It provides sixteen independently controlled 4-20 mA output channels. |
| Q4 | What should be checked before replacing CC-PAOH51? Confirm the complete part number, IOTA, redundancy, control release, loop load and FAILOPT settings. |
| Q5 | How does CC-PAOH51 report an open field loop? Open-wire detection reports a channel soft failure so the control system can identify the affected loop. |
