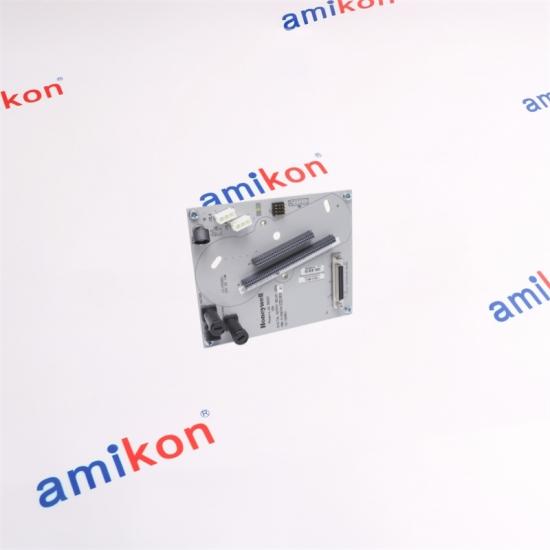

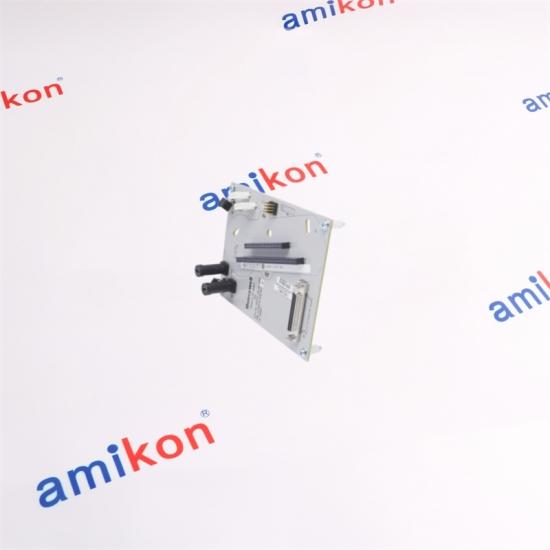

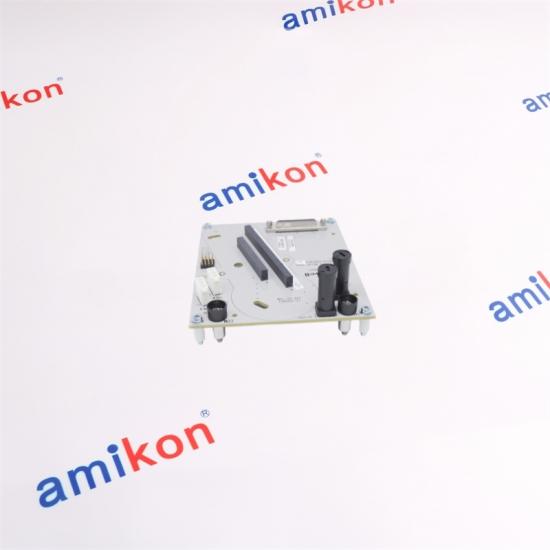

HONEYWELL CC-TDOR01 51308376-175
SERIES C I/O
Digital Output
Relay IOTA

Non-redundant configuration
KEY SPECIFICATIONS
01
Output Type
High-voltage relay digital output
02
IOTA Size
6-inch configuration
03
Paired IOM
CC-PDOB01
✦ International Delivery on the Day
◈ Quick Response Support
◎ Intercontinental Cooperation Network
Sales Manager: Miya zheng
✉ Email Us ☎ WhatsApp Contact QR code
6 in IOTA
HARDWARE ROLE
RELAY OUTPUT IOTA

CC-TDOR01

PART NUMBER: 51308376-175
Honeywell CC-TDOR01 is a coated, non-redundant high-voltage relay Input/Output Termination Assembly for Experion Series C. It provides the field wiring and relay-contact interface used with the CC-PDOB01 digital output module. The relay arrangement is completed with the matching CC-SDOR01 extension board, so the IOTA, output module and extension hardware must be selected as one assembly.
02 / FUNCTIONAL DESCRIPTION

Installed Role in the Experion Architecture


CC-TDOR01 routes the output commands of a CC-PDOB01 through relay contacts for field circuits that require galvanic switching rather than a 24 V DC bussed transistor output. The IOTA is the cabinet-side termination and carrier; it is not a stand-alone output module.
PRODUCT SUPPORT: MIYA ZHENG EMAIL: SALES@AMIKON.CN WHATSAPP: 86-18020776792
03 / TECHNICAL SPECIFICATIONS

Verified Configuration


Product role Digital Output Relay IOTA
Redundancy Non-redundant
Nominal IOTA size 6 inches
Companion IOM CC-PDOB01, 32-channel digital output module
Required extension CC-SDOR01 relay extension board
Output form Dry relay contacts
Contact capability Up to 3 A; application voltage and load category must be checked
System family Experion PKS Series C I/O
Coating execution CC prefix, conformally coated
Order number 51308376-175
04 / COMPATIBILITY & RELATED MODELS

Select by Function, Redundancy and Hardware Execution


IDENTITY ROLE OR DIFFERENCE SELECTION POINT
CC-TDOR01   THIS MODEL Non-redundant relay IOTA, 6 in This model
CC-TDOR11 Redundant relay IOTA, 12 in Choose only for a redundant relay-output arrangement
CC-SDOR01 Relay extension board, 12 in Required companion for the relay-contact arrangement
CC-TDOB01 Non-redundant 24 V DC bussed output IOTA Different output technology; not a relay substitute
CC-PDOB01 32-channel digital output IOM Companion electronics module
05 / MODEL COMPARISON & REPLACEMENT GUIDE

Five Checks Before Changeover


01
Confirm CC-PDOB01 and CC-SDOR01 are present and match the intended relay assembly.
02
Verify non-redundant architecture, cabinet space and IOTA mounting pattern.
03
Check field voltage, current, inrush and inductive-load suppression for every relay circuit.
04
Isolate field power before landing or removing conductors.
05
After replacement, prove each commanded state and fail-safe action from controller to load.

AMIKON INDUSTRIAL AUTOMATION SUPPLY
20 Years of Responsive Global Support
GLOBAL COOPERATION
Experienced coordination for current and discontinued automation parts.
 CAREFUL CHECKING
Part number, quantity and outward condition coordinated before dispatch.
 URGENT DELIVERY
Responsive international shipping support helps reduce downtime.
06 / TECHNICAL FAQ

Five Purchase and Replacement Questions


01
Can CC-TDOR01 operate without CC-PDOB01?
No. CC-TDOR01 is the relay IOTA and requires the compatible digital output IOM.
02
Is CC-TDOR01 interchangeable with CC-TDOR11?
No direct substitution should be assumed. CC-TDOR11 is the redundant 12-inch arrangement, while CC-TDOR01 is non-redundant and 6 inches.
03
Does CC-TDOR01 provide transistor outputs?
No. It is the relay-contact termination option. CC-TDOB01 belongs to the 24 V DC bussed output arrangement.
04
What must be matched when ordering CC-TDOR01?
Match 51308376-175, coating execution, IOM, relay extension board, redundancy and field-load requirements.
05
What should be tested after CC-TDOR01 replacement?
Verify channel mapping, contact state, load operation, suppression, controller diagnostics and the configured failure response.
07 / RECOMMENDED MODELS

Industrial Automation Parts


A3SSL-1204-13 E3S-AD32 CPC-115005 RJ45 440-35M
592WA-13ST CC-TAIX61 51307077-175 NX-ID6142-5 17L65104S-LW4
PR6424/003-130 ST201M-K2 1018-75-011 KC4011X1-BZ1
PK602HK001 AN-X2-AB-DHRIO 851020-120VAC MVME55006E-0161R
7ML1033-1AA00-2A A393.CG-20 PR6424/000-030 PR9268/201-000
33-0941D BGS-DL10CN 571-0065-05 MC-TDID52 51304441-275
140ACO13000 FC-QPP-0001 V1.3 X20SLX910 571-200-20
6SE7090-0XX87-4AH0 6GK1900-0KB00-0AC0 D95574 S96080 TG111-HP3NZRL
PR6423/11R-131 DS100 DSN100 289041 H19A KC4011X1-BW1
A-4114-4150-01 DC-TPOX01 51307770-176 G1115KRRB 330102-00-12-10-01-05
3CB8260 C8737-1 5X00300G02 1747-M12 FC-SDI-1624
FM19856 CC-SDOR01 51308380-175 D8501 DW-20 A6735013A
IG6083 KJ4006X1-BD1 800T-H33D1 H-103-2L
330881-28-04-265-00-02 C98043-A1603-L11 330103-02-08-10-02-CN U2490-1
MVI69L-MBS ES21714-014 A5F00111301-008 11-312E-06-HP
08 / ORDERING INFORMATION

Price, Availability and Return Review



For an exact-match quotation, send the complete model, part number, quantity, installed companion hardware, required revision and destination.

SALES MANAGER: MIYA ZHENG EMAIL: SALES@AMIKON.CN WHATSAPP: 86-18020776792
Contact us within seven days if a concern appears after receipt. Return items in original condition and state the reason for review; refund or replacement follows receipt and inspection. Return-related shipping charges remain the buyer's responsibility.
Hot Tags : Honeywell CC-TDOR01 51308376-175 CC-TDOR01 51308376-175 CC-TDOR01 IOTA CC-TDOR01 datasheet CC-TDOR01 PDF CC-TDOR01 manual
