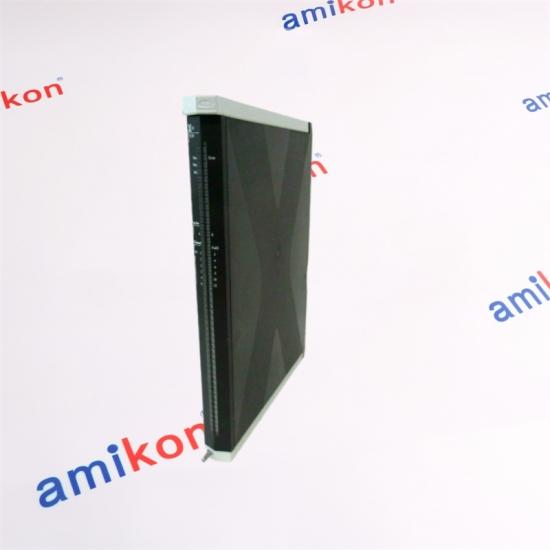

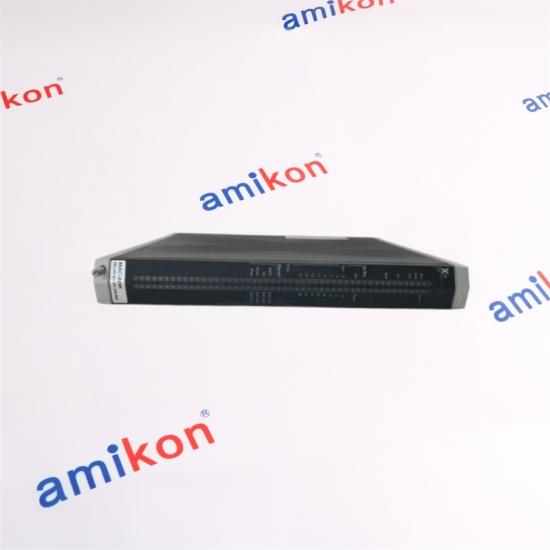

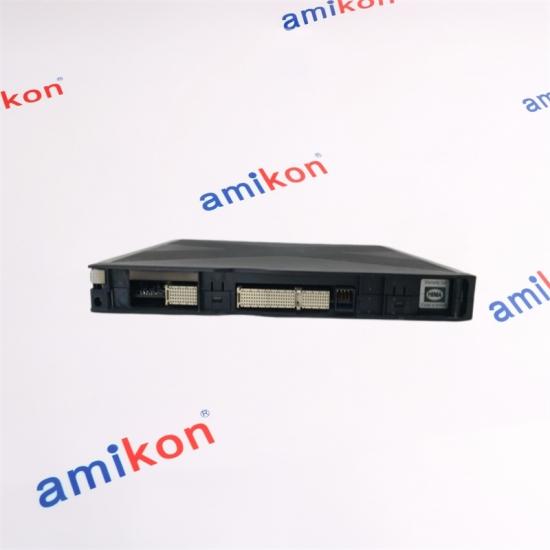

X-SB 01
Part Number 985210207
System bus module for the HIMax programmable electronic system, organizing communication between modules on one or several X-BASE PLATES.
|
SUPPLY
24 VDC
|
CURRENT
0.65 A max.
|
PROTECTION
IP20
|
|
|
|
|
SYSTEM ROLE
Communication Backbone
|
|
ARCHITECTURE
Mono / Redundant
|
|
PLATFORM
HIMax
|
|
PRIMARY POSITION
X-BASE PLATE Communication
|
|
|
01 / TECHNICAL PROFILE
Built around the
HIMax system bus
The X-SB 01 organizes system communication within the HIMax architecture. It can operate as a single system bus or as part of a redundant bus arrangement.
|
| ELECTRICAL |
| Supply voltage |
24 VDC |
| Permitted range |
-15% to +20% |
| Ripple |
≤ 5% |
| Current input |
Max. 0.65 A |
|
| ENVIRONMENT |
| Operating temperature |
0 to +60 °C |
| Storage temperature |
-40 to +85 °C |
| Humidity |
Max. 95% RH, non-condensing |
| Protection |
IP20 |
|
| MECHANICAL |
| Dimensions H × W × D |
310 × 29.2 × 230 mm |
| Approx. weight |
1.2 kg |
| Protection class |
Class III |
|
| INSTALLATION |
| Permitted slots |
Slot 1 / Slot 2 |
| Bus configuration |
Single or redundant |
| System platform |
HIMax |
|
|
|
|
02 / BUS ARCHITECTURE
One platform, two availability strategies
|
|
MONO OPERATION
Single system bus
When only one X-SB 01 is installed on the base plate, the HIMax system operates with one system bus.
|
↔
|
REDUNDANT OPERATION
Dual system bus
With two X-SB 01 modules installed, the HIMax system can operate with two redundant system buses. This architecture is intended to increase system availability.
|
|
|
03 / CONNECTIVITY
Designed around the X-BASE PLATE
The system bus module organizes communication across modules installed on one or several X-BASE PLATES.
|
|
UP
X2
Used for networking additional HIMax base plates.
|
DOWN
X3
Used for networking additional HIMax base plates.
|
PADT
X1
External interface for the PADT connection.
|
|
DIAGNOSTIC INTERFACE
DIAG / X4
Interface reserved for future applications.
|
|
|
|
04 / FIELD CONTEXT
Where this module matters
X-SB 01 belongs to the HIMax safety-controller architecture used for safety-related automation. The HIMax platform is designed for safety-critical applications including process industries, energy and other demanding industrial environments.
|
|
WHEN ENGINEERS SEARCH FOR X-SB 01
The part is typically investigated when the HIMax rack shows system-bus communication abnormalities, when a bus module is suspected of failing, or when a maintenance team needs to restore the intended mono or redundant bus configuration.
|
|
WHY DOWNTIME CAN MATTER
Because the X-SB 01 participates in the internal communication structure of HIMax, a bus-related problem can prevent normal coordination between system modules. In a safety-related controller, extended troubleshooting may therefore delay process restart or maintenance completion.
|
|
PRACTICAL CHECKPOINT
Before replacement, compare the complete part number, HIMax configuration, slot position, bus architecture and installation conditions. For redundant installations, verify both system-bus positions rather than treating the module as an isolated communication component.
|
|
|
|
05 / DIAGNOSTIC VIEW
Communication status at a glance
|
|
The module provides status indication for interfaces including PADT, UP, DOWN and DIAG. The communication indicators can distinguish an established physical connection from communication activity and certain interface conditions.
|
| UP / DOWN |
System bus connection status |
| PADT |
External PADT communication |
| DIAG |
Diagnostic interface status |
|
|
|
|
|
06 / ORDER DETAILS
Prepared for industrial replacement
|
Delivery
3–5 Days |
Warranty
12 Months |
Condition
Brand New |
Payment
T/T |
| Delivery way: E-packing / FedEx / EMS / TNT / DHL / UPS |
|
|
|
QUOTE CHECKPOINT
Please include these five details with your inquiry
01
Part Number |
02
Quantity |
03
Destination |
04
Required Date |
05
Machine / System |
|
|
|
07 / BUYER FAQ
Questions that matter before replacement
|
|
Why is X-SB 01 985210207 more than just a communication accessory?
Within HIMax, the X-SB 01 organizes system-bus communication across the modules installed on the X-BASE PLATE. A problem at this level can affect communication between system components rather than only one field signal.
|
|
When should X-SB 01 985210207 be considered for a redundant HIMax configuration?
Two X-SB 01 modules can provide redundant system buses. This arrangement is intended to increase HIMax availability and is especially relevant where continued controller operation is important.
|
|
What should be checked before replacing X-SB 01 985210207 in an existing rack?
Confirm the exact part number, HIMax base-plate arrangement, slot position and whether the installation uses mono or redundant bus operation. The surrounding environmental and power conditions should also remain within the specified limits.
|
|
How can X-SB 01 985210207 help narrow down a HIMax communication fault?
The module has status indicators associated with PADT, UP, DOWN and diagnostic interfaces. Comparing these states with the system condition can help maintenance personnel determine whether the communication path or another system component requires further investigation.
|
|
Why does the operating environment matter when selecting X-SB 01 985210207 as a replacement?
The specified operating range is 0 to +60 °C, with maximum 95% relative humidity without condensation and IP20 protection. The module is intended for the defined HIMax installation environment, so cabinet conditions should be checked before installation.
|
|
|
|
