HIMATRIX SAFETY-RELATED REMOTE I/O
F3 DIO
16/8 01 Part No. 982200486
A HIMatrix remote I/O device designed for safety-related digital signal handling, combining 16 digital inputs, 8 two-pole digital outputs, 2 pulsed outputs and two Ethernet ports in one compact unit.
Built for distributed safety I/O where signal supervision, Ethernet communication and predictable fault handling are important to the control architecture.
|

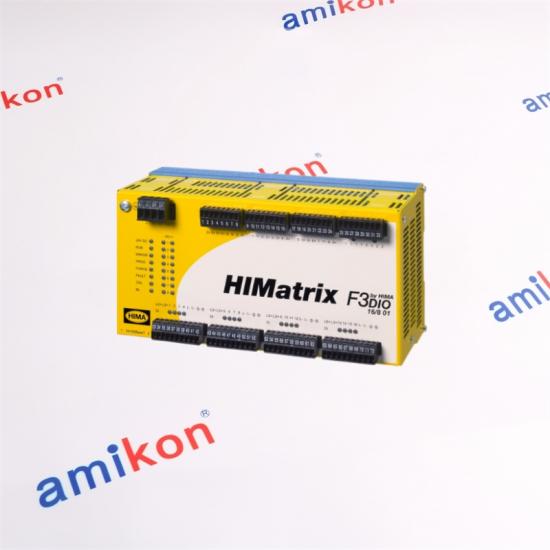

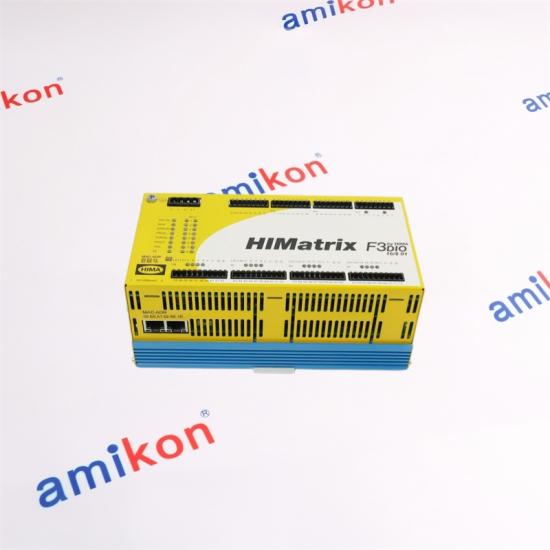

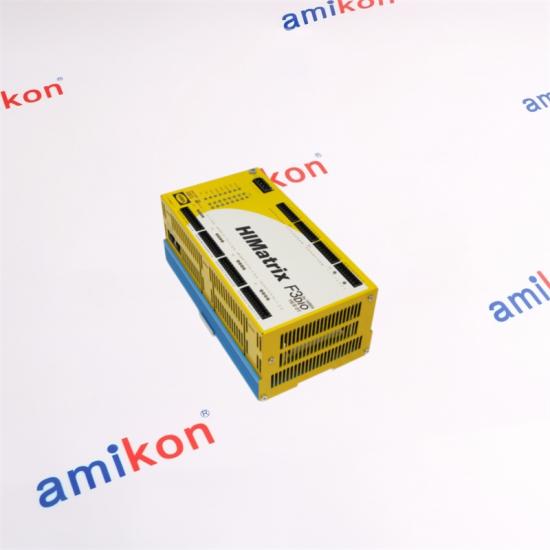

PRODUCT VIEW
F3 DIO
16/8 01 982200486
|
|
TECHNICAL PROFILE
|
Designed Around Safety I/O
|
|
SIGNAL ARCHITECTURE
I/O At The Field Edge
|
|
|
Input Performance
|
Output Performance
|
|
FIELD CIRCUIT SUPERVISION
Line Diagnosis
|
The digital outputs support line diagnosis when configured in the appropriate two-pole arrangement. The diagnostic function can monitor field wiring for open circuits and short circuits.
|
|
A DISTINCTIVE FUNCTION
Two Pulsed Outputs
The two pulsed outputs can be used to support detection of short-circuits and open-circuits on digital input circuits. The device documentation specifically describes their use for monitoring circuits such as emergency-stop inputs. |
TO 1 / TO 2
Approx. 60 mA output current
Switching time ≤ 100 µs
|
|
Ethernet Communication
The F3 DIO 16/8 01 communicates with its associated controller through SafeEthernet. Two RJ-45 ports use 10BASE-T/100BASE-Tx and include an integrated switch.
|
ENGINEERING NOTE
Built For Distributed Safety I/O
The remote I/O is intended to operate together with a controller. During operation, the module does not require routine handling; diagnostic evaluation can use the LEDs and diagnostic entries of the connected controller. Configuration: The F3 DIO 16/8 01 is available for HIMatrix systems using the applicable programming environment. The operating system version determines whether SILworX or ELOP II Factory is used.
|
|
FIELD CONTEXT
Where It Matters
|
F3 DIO 16/8 01 is suited to HIMatrix safety-related architectures where distributed digital field signals have to be exchanged with the associated controller. Its combination of supervised inputs, two-pole outputs and Ethernet communication makes it relevant in machine and process safety sections where a remote I/O fault can prevent a safety function from reaching its intended operating state.
|
|
F3 DIO 16/8 01
982200486
16 digital inputs, 8 two-pole digital outputs, 2 pulsed outputs and 2 Ethernet ports. |
F3 DIO 8/8 01
A lower-input-count member of the same HIMatrix remote I/O family, with 8 digital inputs and 8 digital outputs. |
F3 DIO 20/8 02
Provides 20 digital inputs and 8 digital outputs for applications requiring a larger digital input count. |
F3 DIO 16/8 014
A railway-oriented variant with coated electronics and an extended operating-temperature range. |
|
01 · Why does F3 DIO 16/8 01 become a replacement priority when a field circuit is unstable?
Because the module combines digital I/O processing with line-diagnosis functions. When an output circuit reports open-circuit or short-circuit conditions, replacing the remote I/O may be considered after field wiring, load and configuration checks have been completed. |
02 · What makes F3 DIO 16/8 01 different from a basic digital I/O expansion module?
Its architecture combines safety-related digital I/O, two-pole output switching, line diagnosis, pulsed outputs and SafeEthernet communication. That combination is the important distinction when matching a replacement in a HIMatrix safety architecture. |
|
03 · When should F3 DIO 16/8 01 be checked instead of changing only the connected sensor?
If several channels or the module-level diagnostic state indicate abnormal I/O behavior, the investigation should extend beyond an individual sensor. The device provides channel LEDs and diagnostic entries that help distinguish an I/O-side condition from a field-device problem. |
04 · Why is the exact F3 DIO 16/8 01 variant important when replacing a failed module?
The family contains variants with different I/O arrangements and environmental characteristics. The F3 DIO 16/8 01 is specified for 0 to +60 °C, while the F3 DIO 16/8 014 is a railway-oriented variant with a different environmental specification. Matching the exact part number avoids an architecture mismatch. |
|
05 · How can F3 DIO 16/8 01 help reduce troubleshooting time during an unexpected shutdown?
Its operating, communication and I/O LEDs provide local diagnostic clues, while the connected controller can record diagnostic entries. The combination of local indication and controller-side diagnostics gives maintenance personnel a faster route for separating communication, configuration and field-I/O issues. |
|
