HIQuad X · H51X SYSTEM
F-PWR 02
HIQuad X Buffer / Watchdog Supply Module
Part Number: 984714200
F-PWR 02 is an optional HIQuad X module used in the H51X architecture to provide buffered 24 VDC supply support for the I/O level of extension racks. Its role becomes particularly important where the available power supply arrangement must compensate for voltage interruptions or where a redundant I/O power structure is required.
A power-buffering component for safety-system availability rather than a conventional standalone 24 VDC power supply.
|
PRODUCT

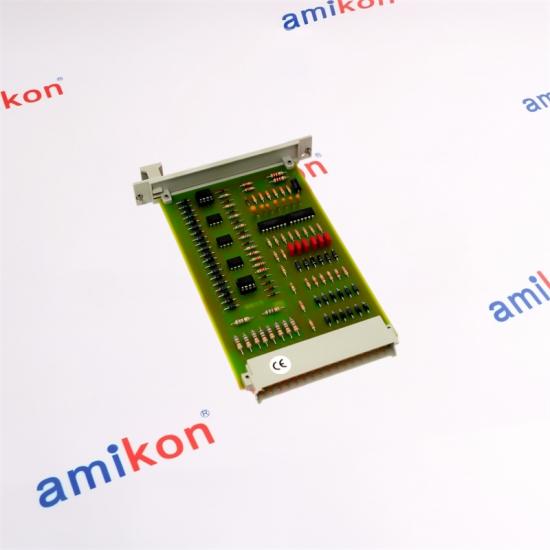

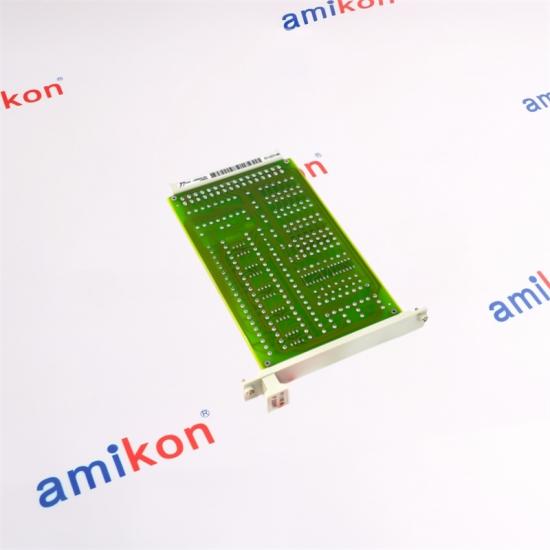

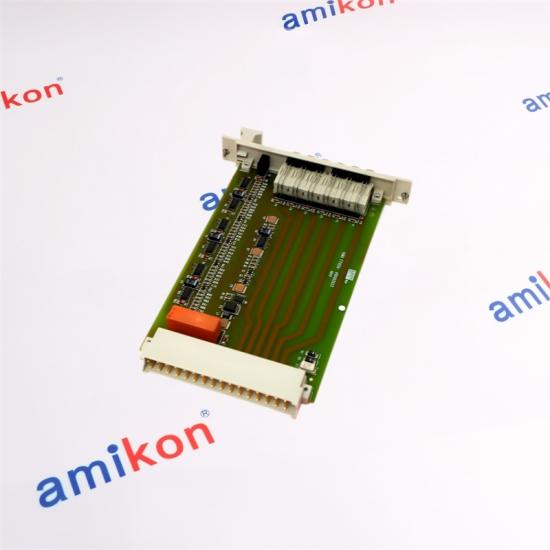

 Inventory Instance
|
|
SYSTEM ARCHITECTURE
Where F-PWR 02 Fits
Within HIQuad X, F-PWR 02 works alongside the H51X rack power and I/O architecture rather than replacing the primary F-PWR 01 supply function. |
F-PWR 02 is positioned in the H51X base rack and supplies the LS1+/LS2+ paths used for the I/O level of extension racks. The architecture allows redundant I/O levels to be arranged according to rack IDs.
|
| Product | F-PWR 02 | Part Number | 984714200 |
| System | HIQuad X | Supported Rack | H51X |
| Module Type | Buffer module | System Function | Watchdog / buffered supply |
| Monitored Supply | L1+ / L2+ | Buffered Supply | LS+ |
| Nominal LS+ Current | 4 A | Operating Voltage | 24 VDC |
| Base-Rack Position | Slots 6 / 7 | H41X Base Rack | Not intended |
| Application | Extension-rack I/O supply buffering | Module Status | Optional HIQuad X component |
|
POWER BUFFERING
Why The Buffer Module Matters
|
The F-PWR 02 is intended for cases where the power-supply arrangement needs additional buffering for the I/O level. The HIQuad X system description specifies its use when the power supply does not provide the required protection separation and voltage-failure compensation of up to 20 ms, or when the required compensation exceeds 20 ms.
|
|
REDUNDANT I/O SUPPLY
Two Paths, One Availability Strategy
In an H51X arrangement using two F-PWR 02 buffer modules, one module can support the voltage-drop compensation path for extension racks with odd rack IDs while the other serves the corresponding path for even rack IDs. This creates a redundant I/O power arrangement based on rack identification.
|
H51X POWER PATH
24 VDC INPUT
↓
F-PWR 02
↓
LS1+ / LS2+
↓
EXTENSION I/O LEVEL
|
|
FIELD CONTEXT
When F-PWR 02 Becomes Critical
|
F-PWR 02 belongs to the power architecture of a HIQuad X H51X system. It is normally considered when an H51X installation uses extension racks and the I/O level requires buffered or redundant 24 VDC support. It is therefore not a generic replacement for F-PWR 01.
|
|
AMIKON · 20 YEARS
Two Decades of
Industrial Automation Founded in Hong Kong in 2005, Amikon has developed into an international supplier serving industrial automation users with PLC, HMI, DCS, industrial computer and drive-related parts. Two decades of continuous development have expanded our manufacturer coverage, customer network and inventory capabilities across global industrial markets. A global automation partner for sourcing difficult-to-obtain industrial parts.
|
|
| Since 2005 Long-term development in industrial automation supply. |
Global Business Serving industrial customers across international markets. |
Broad Coverage PLC, HMI, DCS, industrial PC and VFD-related parts. |
20-Year Milestone A long-running focus on industrial automation components. |
|
F-PWR 02
984714200
Optional buffer module for H51X extension-rack I/O supply arrangements. It supports buffered 24 VDC supply paths and redundant I/O-level structures. |
F-PWR 01
The primary HIQuad X power supply module, providing 24 VDC / 5 VDC conversion with a rated 50 W output. It is a fundamentally different role from the F-PWR 02 buffer module. |
H51X Architecture
The H51X base rack provides the system-level arrangement in which F-PWR 02 can be installed in slots 6 and 7 for the described redundant I/O supply architecture. |
|
01 · Why is F-PWR 02 984714200 not a direct substitute for F-PWR 01?
Because the two modules perform different functions. F-PWR 01 is the HIQuad X 24 VDC / 5 VDC, 50 W power supply unit, while F-PWR 02 is the optional buffer module used for H51X extension-rack I/O supply support. Replacing one with the other without checking the rack architecture can create a system mismatch. |
02 · When does F-PWR 02 984714200 become important during a power-quality problem?
It becomes relevant when the H51X I/O level requires buffering to compensate for voltage interruptions beyond the capability of the installed power arrangement. The HIQuad X architecture specifically describes F-PWR 02 as an optional solution when the required compensation is beyond the stated 20 ms condition. |
|
03 · Why does F-PWR 02 984714200 matter when an extension-rack I/O level is losing availability?
The module supplies the buffered LS+ path used by the extension-rack I/O architecture. In the redundant arrangement, two F-PWR 02 modules can support different rack-ID groups. A failed module therefore affects the intended redundancy structure even if the remaining module can keep the redundant racks operating. |
04 · How can engineers tell whether F-PWR 02 984714200 is the correct replacement family?
The key check is the complete HIQuad X architecture: H51X base rack, F-PWR 02 buffer function, slot position and LS1+/LS2+ supply arrangement. The F-PWR 02 role should not be matched only by the phrase “24 V power module,” because that description could incorrectly point to F-PWR 01. |
|
05 · What is the downtime risk if F-PWR 02 984714200 is left failed in a redundant H51X arrangement?
The described redundant structure can continue operating through the remaining buffer module, but the failed F-PWR 02 should be replaced immediately to restore the original availability of the I/O supply architecture. Delaying replacement leaves the system without its intended level of redundancy. |
|
|
