HIMA X-CPU 31 985210246 HIMAX PROCESSOR MODULE

HIMA X-CPU 01 985210211
HIMA X-CPU 01 985210211
HIMA X-CPU 01 985210211

HIMA X-CPU 31 985210246 HIMAX PROCESSOR MODULE

Calculate shipping
Quotation Request
AMIKON
INDUSTRIAL AUTOMATION
MODEL: X-CPU 31 985210246
SYSTEM TYPE
High-Speed Central CPU
Safety-critical processing unit

COMMUNICATION
Ethernet / SafeEthernet
Dual redundant bus channels

SAFETY RATING
SIL 3 / IEC 61508
TÜV certified fault tolerance
We operate on a global scale and remain fully open to addressing all client requirements.
SALES MANAGER
Miya zheng
Email: sales@amikon.cn
WhatsApp: 86-18020776792

HIMAX / X-CPU 31 PROFILE TECHNICAL SYSTEM ROLE APPLICATIONS FAQ CONTACT

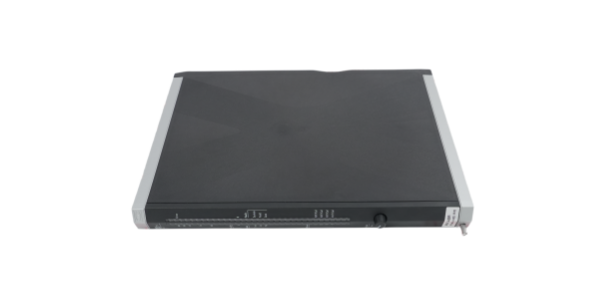

  HIMA HIMAX PROCESSOR MODULE

X-CPU 31
985210246
Processor module for small and midsize safety applications, designed for the HIMax programmable electronic system.
The X-CPU 31 performs safety-related processing of user programs and supports safe communication with HIMA controllers and remote I/O through safeethernet. Its compact processor architecture is intended for HIMax applications where dependable safety processing and controlled system communication are essential.

SAFETY LEVEL
SIL 3
ETHERNET
2 × RJ-45
SUPPLY
24 VDC

HIMax Processor Module
CORE ROLE
Safety-related processor, system communication and diagnostic processing within the HIMax platform.
PRODUCT FAMILY
HIMax
MODULE TYPE
Processor Module
APPLICATION RANGE
Small / Midsize Safety
PART NUMBER
985210246
01 / TECHNICAL PROFILE
Built Around
Safety Processing


The processor module executes the user program and forms part of the safety-related processing architecture of the HIMax system. Hardware self-tests, safe I/O communication and safe controller communication are integrated into its operating role.

PROCESSING ARCHITECTURE
1oo2 safety-related processor system
PROGRAM CAPACITY
5 MB less 64 kB for CRCs
POWER
24 VDC, -15...+20%
CURRENT
0.72 A at 24 VDC
MICROPROCESSOR
PowerPC
RETAIN MEMORY
32 kB
USER PROGRAMS
1 to 32
EVENT DEFINITIONS
0 to 20,000
EVENT BUFFER
5,000 events
DATE / TIME BUFFER
Minimum 5 days
AMBIENT TEMPERATURE
0 to +60 °C
PROTECTION
IP20 / Class III
DIMENSIONS
310 × 29.2 × 236 mm
WEIGHT
Approx. 1 kg
02 / INTERFACE ARCHITECTURE
Two Communication Paths,
One Safety-Oriented Core

ETHERNET INTERFACES
2 × RJ-45
10BASE-T / 100BASE-Tx, half and full duplex, with autonegotiation and autocrossover.
Supported communication includes safeethernet, PADT, OPC and SNTP.

SYSTEM BUS INTERFACES
UP / DOWN
Two RJ-45 system-bus interfaces connect additional base plates within the HIMax architecture.
1000BASE-T, half and full duplex, with autonegotiation and autocrossover.
CONFIGURATION POSITION
X-CPU 31 processor modules are installed in slot 1 or slot 2 of rack 0. A maximum of two processor modules may be used.
03 / SYSTEM ROLE
Where X-CPU 31
Fits in HIMax


Within HIMax, the X-CPU 31 is the processor module intended for smaller and medium-sized safety applications. It processes the user program, performs hardware self-tests and maintains safety-related communication with I/O modules and compatible HIMA controllers.

X-CPU 31
Processor for smaller and medium-sized safety applications
X-CPU 01
Processor for higher performance requirements and larger safety applications
X-SB 01
System-bus module used within the HIMax architecture
X-COM 01
Communication module supporting multiple external communication protocols
USER PROGRAM
Processed by the safety-related processor architecture.
↓
SAFETY PROCESSING
Hardware self-tests and safety-related execution.
↓
I/O & CONTROLLER COMMUNICATION
Safe communication through the HIMax communication architecture.
04 / APPLICATION CONTEXT
When This Processor
Becomes Critical


The HIMax platform is used for safety-related control. Typical safety applications include emergency shutdown, fire and gas functions, high-integrity pressure protection, pipeline management and control, and turbo machinery control.
WHY ENGINEERS SEARCH FOR 985210246

A search for 985210246 is particularly relevant when an installed HIMax system requires an exact X-CPU 31 processor replacement, when the existing processor has a hardware fault, or when system diagnostics point toward processor-related operation problems.


WHAT A PROCESSOR FAULT CAN MEAN

Because the processor executes the safety user program and handles safety-related communication, a processor fault can interrupt the intended control sequence and cause the controller to enter a safe state.

DIAGNOSTIC VALUE

The processor provides diagnostic storage that can be read through the programming and diagnosis environment. The diagnostic memory supports short-term and long-term diagnostic records.


DOWNTIME CONSIDERATION

In a safety-critical installation, processor availability directly affects the ability of the controller to execute its intended safety function. An unexpected processor stop can therefore become a plant-maintenance priority.
05 / FAULT RESPONSE
Designed to Move a Fault Toward a Safe State

01
FAULT DETECTION
Hardware self-tests and monitoring contribute to fault detection.
02
ERROR STOP
Detected faults can cause the processor module to enter ERROR STOP and restart.
03
SAFE STATE
The safety function resets the processor module toward its defined safe state.
04
DIAGNOSTICS
Diagnostic records support investigation of the cause after an error.
06 / PROCUREMENT
Match the Exact Part
Before the Shutdown Becomes Urgent


For an accurate quotation, please provide the exact part number together with the quantity and operating context.

Part Number Quantity Destination
Required Date Machine / System
AMIKON SALES CONTACT
Miya zheng
PHONE / WHATSAPP
86-18020776792
SERVICE TERMS
Delivery: 3–5 days   |   Warranty: 12 months
Condition: Brand new   |   Payment: T/T
DELIVERY
3–5 Days
WARRANTY
12 Months
PACKING
Brand New
DELIVERY WAY
E-packing / FedEx / EMS / TNT / DHL / UPS
AFTER-SALE ARRANGEMENT
Return & Replacement
01 / NOTICE
Please contact us within 7 days after receipt if there is any issue with the order.
02 / CONDITION
Returned items should remain in their original condition and include the specific reason for return.
03 / SHIPPING
Return shipping costs are the responsibility of the buyer. Replacement or return processing follows receipt of the returned item.
07 / BUYER FAQ
Questions That Matter
Before Replacement

Why is X-CPU 31 985210246 usually considered when a HIMax processor needs replacement?
Because the X-CPU 31 is the processor module intended for smaller and medium-sized HIMax safety applications. An exact part-number match helps maintain the intended processor role, interfaces and system architecture rather than substituting a processor designed for a different performance class.
How does X-CPU 31 985210246 differ from X-CPU 01 when selecting a replacement?
The X-CPU 31 is positioned for smaller and medium-sized safety applications, while X-CPU 01 is intended for higher performance requirements and larger safety applications. The processor choice should therefore follow the existing HIMax architecture and application requirements rather than only physical similarity.
What should buyers check on X-CPU 31 985210246 before committing to a replacement?
The exact part number, hardware and operating-system revision shown on the type label, the HIMax rack position, processor redundancy arrangement, connector-board configuration and the installed system environment should be checked. These details help prevent a visually similar but technically unsuitable replacement.
What happens when X-CPU 31 985210246 detects a processor fault?
The processor can enter ERROR STOP when its test system detects a fault and can restart itself. The safety function is designed to bring the processor toward its safe state and report the CPU condition, while diagnostic records can be examined to investigate the cause.
When does X-CPU 31 985210246 become a downtime-sensitive spare?
It becomes especially important when a HIMax safety controller is already installed in a production or process environment and processor failure interrupts safety-related execution. Since the processor handles user-program execution and safety communication, having the exact replacement available can shorten the maintenance window associated with a processor-related stop.
